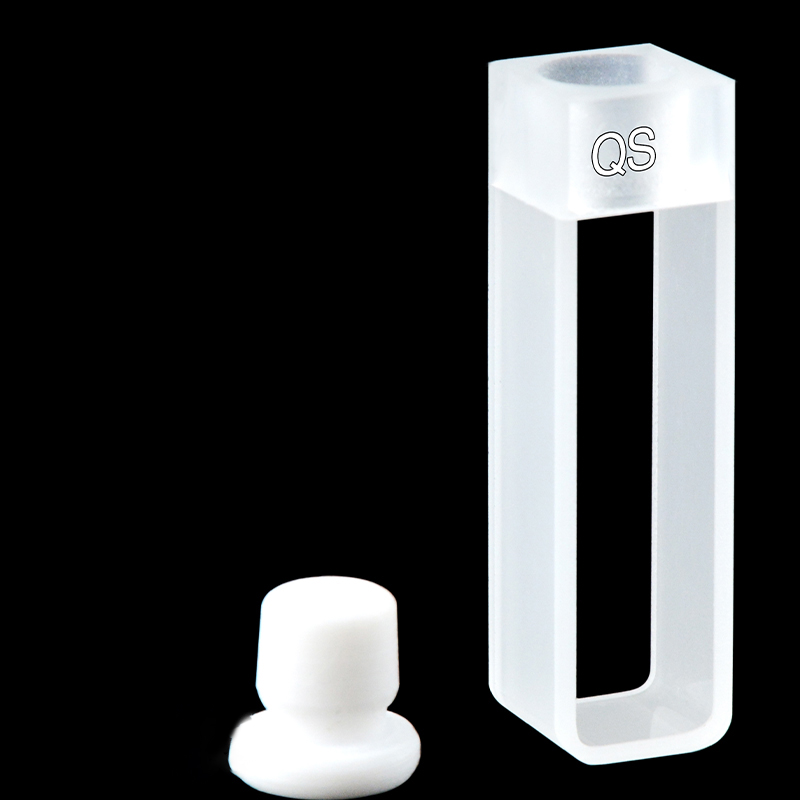

(C102SR25) Quartz Stoppered Cuvette, 10 mm Path, 3.5 mL

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C102SR25

Original price was: $76.00.Current price is: $69.00.

In Stock

C102SR25 is a quartz stoppered cuvette with a 10 mm optical path, Two-Way Light geometry and 3.5 mL nominal capacity. Its full-size square body and PTFE stopper suit routine transmission measurements where you want top filling followed by covered sample handling. Supplied as 1 cuvette with stopper included.

In Stock

SKU: C102SR25 Categories: Cuvettes, Products, Quartz Stoppered Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SR25 is a quartz stoppered cuvette with a 10 mm optical path and 3.5 mL nominal capacity in a full-size square body. It is intended for routine transmission measurements where you want to fill the sample from the top and then cover the opening with the included PTFE stopper. This option is supplied as 1 cuvette with stopper included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
Overall Height without Closure	45 mm
External Dimensions Scope	Uncapped Cell
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Stopper
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C102SR25 when your method uses a 10 mm transmission path and you want a covered sample cell rather than an open cuvette. The 3.5 mL nominal capacity suits ordinary liquid samples in a familiar square body, and the PTFE stopper gives straightforward top access for filling followed by covered handling during routine measurement steps.

What makes this option different

10 mm optical path for methods written around a 1 cm transmission length.
3.5 mL nominal capacity for routine liquid samples in a full-size cell format.
PTFE stopper included for top access followed by covered sample handling.
Two-Way Light geometry for transmission through two opposite optical faces.
12.5 × 12.5 × 45 mm uncapped body for checking holder seating and body clearance.
Single-cuvette sale unit when you need one cell rather than a multi-pack.

Using this cell

Fill the cell from the top so the liquid level covers the beam region used by your instrument, then seat the PTFE stopper gently before measurement. Remove visible bubbles and keep the same orientation for blank and sample readings to maintain a consistent optical setup.

Handle the cuvette by the non-optical sides where possible and keep the outside optical faces free from fingerprints and droplets. The stopper covers the opening after filling, but its operating-pressure limit needs to be confirmed before use in a pressurized circuit.

First-use check

Inspect the optical faces and the PTFE stopper for chips, residue or particles.
Test the uncapped body in your holder without forcing the fit.
Rinse with a cleaning liquid suitable for your method.
Fill with a suitable blank and confirm that the liquid covers the beam path.

Fit and optical alignment

The uncapped body is 12.5 × 12.5 × 45 mm. That size helps you check whether the cell will seat properly in a square-cuvette holder and whether there is enough vertical room above the body for stoppered use.

This is a Two-Way Light cuvette intended for a beam passing through two opposite faces. Z Height is not stated for this option, so if your holder or instrument depends on a specific beam-center height, check that separately instead of assuming it from the body dimensions.

Solvents and cleaning

Quartz is used for the cell body and PTFE for the stopper. For an application involving aggressive solvents, long contact times, elevated temperature or a demanding cleaning routine, confirm the chemical limits for both parts before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods. For fabrication background, see MQ Cuvette Fabrication Glossary.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom quartz cuvettes for changes to dimensions, optical path length, sample volume, closures or other fit requirements. Send your drawing or labelled sketch, instrument or holder details, sample conditions and target quantity. Discuss your requirements and quote part number C102SR25.
