(C103WS1) Quartz Flow Cell, 10 mm Path, 250 µL

Weight	30 g

SKU: C103WS1

Original price was: $243.00.Current price is: $219.00.

In Stock

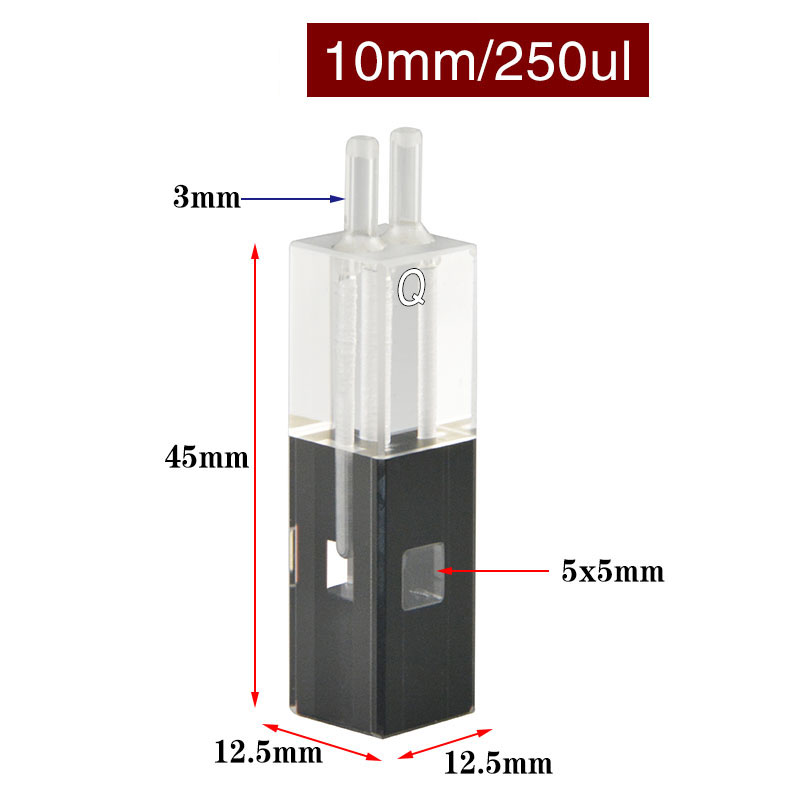

C103WS1 is a quartz flow cell with a 10 mm optical path, 250 µL nominal capacity and Three-Way Light configuration. Two top fluid connections with 3 mm outer diameter tubing interfaces and a compact 12.5 × 12.5 mm base make it suitable for small-footprint UV/Vis flow setups. Sold as 1 piece per listed price unit.

In Stock

SKU: C103WS1 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C103WS1 is a quartz flow cell that combines a 10 mm optical path with a 250 µL nominal capacity and a Three-Way Light configuration. Its compact square body and top-mounted fluid connections make it useful when you need a connected cell with a small footprint and access above the cell for tubing. It is listed for UV/Vis spectroscopy over 200–2500 nm and is sold as 1 piece per listed price unit.

Path Length: 10 mm
Sample Volume (Nominal): 250 µL
Opening Configuration: Two Top Fluid Connections

Selection Specifications

Product Kind	Flow Cell
Cell Type	Flow Cell
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Three-Way Light
Optical Window Dimensions	5 × 5 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	250 µL
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Port Count	2
Tube Outer Diameter (OD)	3 mm
Fabrication Method	Standard 80
Opening Configuration	Two Top Fluid Connections

Choose this option

Choose C103WS1 when your method needs a 10 mm flow cell but the holder space is limited and top-entry tubing is easier to route than side access. The 12.5 × 12.5 mm base and 45 mm body height help you assess whether the cell can sit in a compact mount, while the 5 × 5 mm window size and Three-Way Light layout support setups built around this declared optical access. This format is useful for connected UV/Vis measurements where a defined nominal cell volume matters.

What makes this option different

10 mm optical path with 250 µL nominal capacity in a compact flow-cell body.
Three-Way Light configuration for methods that use this optical layout.
Two top fluid connections with 3 mm outer diameter connection dimensions.
12.5 × 12.5 mm base, 45 mm body height and 5 × 5 mm window size for holder and clearance planning.

Using this cell

Install the cell so the optical faces align with the beam path, then connect your fluid line to the two top ports. Fill gradually and check that the sample reaches the optical region evenly, without visible bubbles or dry patches on the window area.

The stated 250 µL value is the nominal volume of the cell itself. It does not include the extra liquid volume in tubing, fittings or the rest of the circuit, so plan blanks, rinsing and sample changeover around the full connected path.

No pressure rating is stated for this SKU. If your setup runs under pressure, review the connection method and operating conditions before use.

First-use check

Before the first run, inspect the optical faces and top connections for damage or residue. Confirm that your tubing layout suits the top-port arrangement, then run a suitable blank after filling the flow path and verify that the optical region is free from bubbles.

Fit and optical alignment

The compact 12.5 × 12.5 mm base and 45 mm body height help you assess mechanical fit in holders designed for small square-body cells. Because the connections are on the top face, leave enough space above the cell for tubing bends and installation access.

Z Height is not specified for this option. If your holder or instrument depends on a fixed beam-center height, check that geometry before ordering rather than relying on overall body height alone.

Solvents and cleaning

Standard 80 indicates an adhesive-bonded quartz construction. For this type, routine room-temperature water-based samples and buffers are the usual selection direction. Avoid organic sample solvents and organic cleaning agents with this option.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean exterior optical faces gently with non-abrasive tissue, and review the full wetted assembly when checking sample and cleaning compatibility.

Included with this option

1 cuvette per listed price unit. If you need a supplied closure or other accessory, contact us before ordering.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz projects involving dimensions, optical path length, sample volume, windows or Z Height, connections, fabrication and tolerance requirements. Send a dimensioned drawing or labelled sketch, plus holder details, sample conditions and required quantity. Discuss your requirements and reference C103WS1.
