(C104CS68) Quartz Micro Cuvette, 10 mm Path, 1.4 mL

Weight	30 g

SKU: C104CS68

Original price was: $72.00.Current price is: $65.00.

In Stock

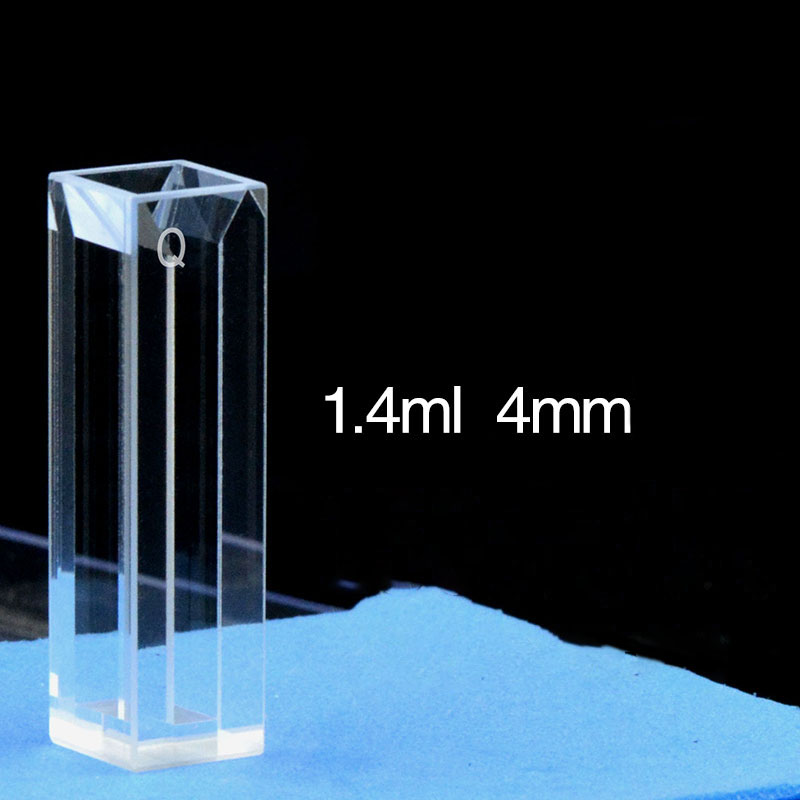

Quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and 1.4 mL nominal capacity. This Standard 80 adhesive-bonded option uses a 4 mm sample-region channel and is intended for neutral sample solutions. Sold as 1 cuvette per price unit, with a closure included.

In Stock

SKU: C104CS68 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS68 is a quartz micro cuvette for fluorescence measurements that combines a standard 10 mm optical path with optical access from all four side faces. Its 4 mm sample-region channel and 1.4 mL nominal capacity make it a wider-channel choice in this body size when you want more space in the sample region without changing the basic square holder footprint. This version uses Standard 80 adhesive-bonded quartz construction for neutral sample solutions.

Path Length: 10 mm
Sample Volume (Nominal): 1.4 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	4 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.4 mL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	4 mm

Choose this option

Choose this cell when your fluorescence setup needs Four-Way Light access and a 4 mm sample region in the standard 10 mm cuvette format. It is well suited to methods where you are comparing chamber width and nominal capacity across this family, while still keeping the same uncapped 12.5 × 12.5 × 45 mm body size for holder checks.

What makes this option different

10 mm optical path for standard cuvette-based fluorescence measurements.
Four-Way Light design for optical access through all four side faces in compatible fluorescence geometries.
4 mm sample-region channel paired with 1.4 mL nominal capacity.
Standard 80 adhesive-bonded quartz construction for neutral sample solutions.
Closure included; sold as 1 cuvette per listed price unit.

Using this cell

Fill from the top opening so the illuminated region remains fully covered during the measurement. Keep the optical faces clean, avoid trapped bubbles in the sample region, and keep the same orientation for blank and sample runs.

Place the closure gently after filling. It covers the opening for routine handling, but no pressure limit or sealed-system performance is stated for this item.

First-use check

Inspect the optical faces, opening and closure seating area before first use. Then run a blank in the intended holder to confirm stable seating, practical clearance and a fill level that fully covers the beam path.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped body only. Use that size to check holder seating and compartment space, and leave extra room above the cell once the closure is fitted.

Z Height is not specified for this SKU. If your instrument requires a defined beam-center height, confirm that dimension before ordering. The 1.4 mL value is nominal capacity only and should not be treated as the minimum working volume for your setup.

Solvents and cleaning

This Standard 80 adhesive-bonded option is intended for routine water-based samples and buffers at room temperature. For this SKU, the supplier restricts use to neutral sample solutions. Specific solvent, concentration, temperature and exposure-time limits are not stated.

Avoid organic sample solvents and organic cleaning agents with this cell. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning methods.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes involving dimensions, optical path length, sample volume, optical windows, Z Height, closures, fabrication and tolerances. Discuss your requirements and quote part number C104CS68.
