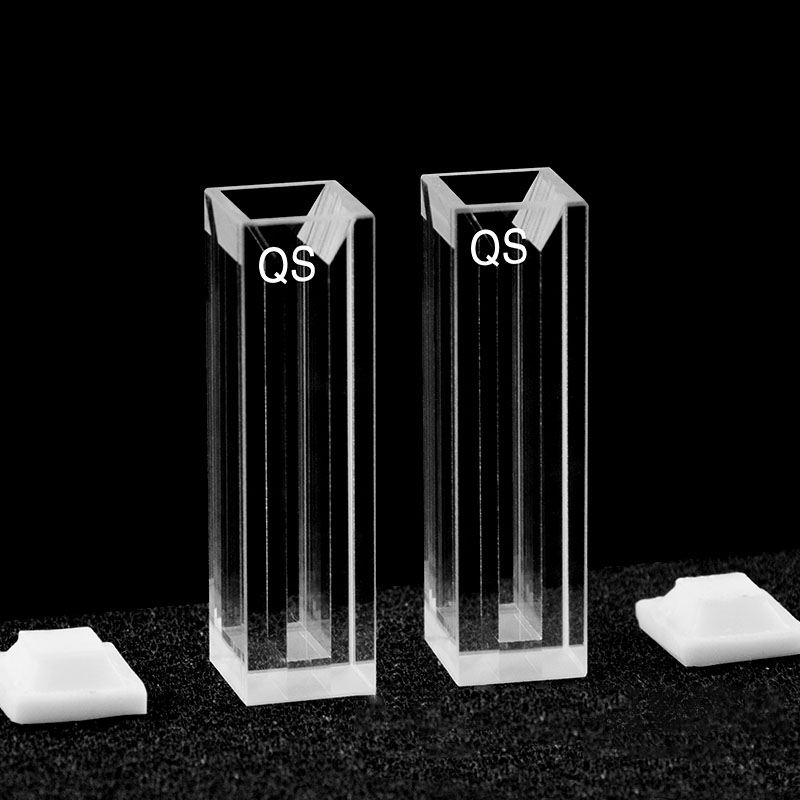

(C104CS35) Quartz Micro Cuvette, 10 mm / 4 mm (dual path) Path, 1.4 mL

Weight	30 g

SKU: C104CS35

Original price was: $903.00.Current price is: $813.00.

In Stock

C104CS35 is a JGS1 quartz micro cuvette for fluorescence measurements, with a 10 mm main path, a 4 mm secondary path and Four-Way Light optical access. Its 1.4 mL nominal capacity suits compact fluorescence setups that still need a defined internal sample region. The listed price is for 1 cuvette with a lid.

In Stock

SKU: C104CS35 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS35 is a JGS1 quartz micro cuvette for fluorescence measurements, combining a 10 mm main path with a 4 mm secondary path in a Four-Way Light body. This layout gives side optical access on all four faces while keeping the cell in a compact square format. The nominal capacity is 1.4 mL, and the MQ sale unit for this listing is 1 cuvette with a lid included.

Path Length: 10 mm / 4 mm (dual path)
Sample Volume (Nominal): 1.4 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm / 4 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	4 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.4 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	4 mm

Choose this option

Choose C104CS35 when you need a compact fluorescence cuvette with a defined 10 mm / 4 mm dual-path geometry and four-side optical access. It is a practical fit for holder-based measurements where the outer footprint matters, but you still want a stated internal sample-region width rather than an ultra-narrow slit format. The included lid supports routine covered use after top filling.

What makes this option different

10 mm main path with a 4 mm secondary path in one micro cuvette.
Four-Way Light configuration for optical access from four faces.
1.4 mL nominal capacity with a stated 4 mm sample-region width.
JGS1 quartz body, supplied as 1 cuvette with a lid.

Using this cell

Fill the cuvette from the top opening and seat the lid gently before measurement. Use the same orientation for blank and sample runs so the beam crosses the same faces each time, and keep the windows free from splashes, dried residue and fingerprints.

The 1.4 mL figure is the nominal capacity of the cell, not a minimum working volume. Adjust your fill level so the illuminated sample region is fully covered under your actual beam position.

First-use check

Inspect the cuvette and lid for clean contact surfaces and undamaged optical faces, rinse with a suitable cleaning liquid for your method, and test-fit the cell in the holder before routine use. A blank run is a practical way to confirm beam coverage and orientation.

Fit and optical alignment

The stated dimensions of 12.5 × 12.5 × 45 mm apply to the uncapped cell body. Check holder clearance for the installed lid separately, since the overall assembled height is not stated here.

Z Height is not stated for this SKU, so routine fluorescence alignment should be checked in the actual instrument or holder. The stated 4 mm sample-region width describes part of the internal geometry, but it does not replace a beam-height or holder-fit check.

Solvents and cleaning

This cuvette is made from JGS1 quartz with a Molded 83 fabrication classification. It is often chosen for methods that may involve broader solvent exposure than adhesive-bonded cells, but the chemical limits of this assembled option are not established here, so your actual sample and cleaning conditions still need to be suitable for the complete cell-and-lid setup.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. If your method involves aggressive reagents, long contact times or unusual cleaning chemistry, please check suitability before ordering or routine use.

Included with this option

One quartz micro cuvette with a lid included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication requirements. Send a dimensioned drawing or labelled sketch through our contact page and quote part number C104CS35.
