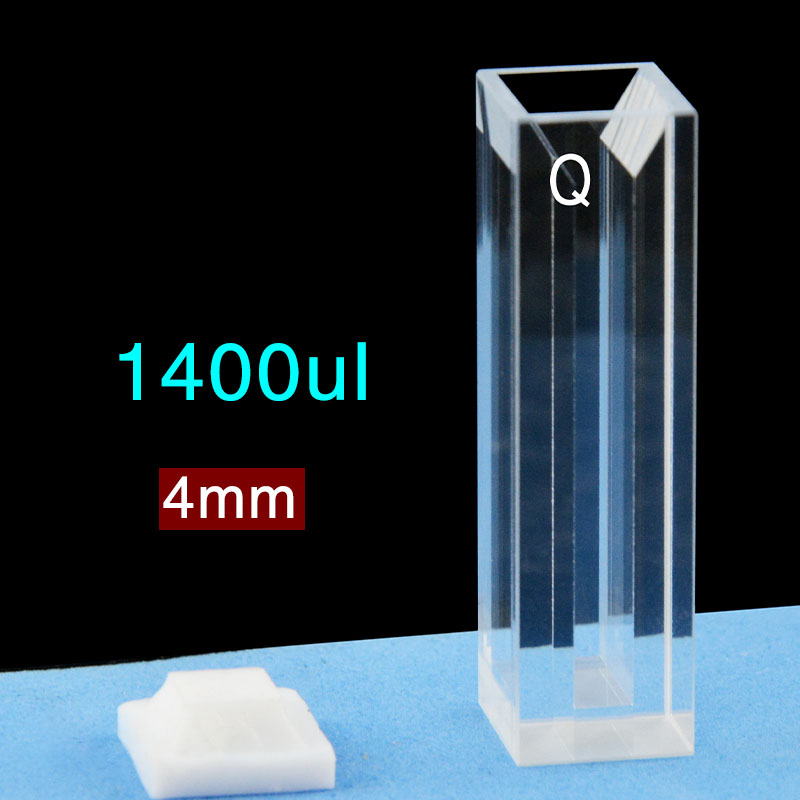

(C104CS36) Quartz Micro Cuvette, 10 mm / 4 mm (dual path) Path, 1.4 mL

Weight	30 g

SKU: C104CS36

Original price was: $72.00.Current price is: $65.00.

In Stock

C104CS36 is a JGS1 quartz micro cuvette with a 10 mm primary path, 4 mm secondary path and Four-Way Light access for fluorescence spectroscopy setups that use this beam geometry. Its 1.4 mL nominal capacity and compact uncapped body support routine micro-cuvette handling while keeping the sample region accessible. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C104CS36 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS36 is a JGS1 quartz micro cuvette with a 10 mm primary path, a 4 mm secondary path and Four-Way Light access. This combination is useful when your fluorescence method needs side optical access around the sample region rather than a simple two-face transmission layout. Its 1.4 mL nominal capacity and 12.5 × 12.5 × 45 mm uncapped body also help you check holder space and sample handling before you commit to this geometry.

Path Length: 10 mm / 4 mm (dual path)
Sample Volume (Nominal): 1.4 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 4 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	4 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.4 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	4 mm

Choose this option

Choose C104CS36 when your method is built around the stated 10 mm / 4 mm dual-path arrangement and a compact quartz micro cuvette body. The adhesive-bonded Standard 80 construction is suited to neutral, water-based sample routines, so this option fits applications where the optical layout matters but broad solvent resistance is not required.

What makes this option different

10 mm / 4 mm dual-path geometry: useful when your method specifies both the main optical path and a shorter secondary path in the same cell.
Four-Way Light access: gives optical access from four sides around the sample region for fluorescence-oriented measurement layouts that use this body geometry.
1.4 mL nominal capacity: enough to describe the intended chamber size without treating it as a minimum working fill volume.
Compact uncapped body: the stated 12.5 × 12.5 × 45 mm cell size helps you check holder space and vertical clearance separately from any closure height.
Standard 80 adhesive-bonded construction: a practical choice for neutral, water-based samples, with important cleaning and chemical limits for solvent selection.

Using this cell

Fill the cell so the measurement region is fully covered, and keep bubbles away from the illuminated area. When your method depends on the stated dual-path geometry or side optical access, keep the same orientation for blank and sample.

A closure is included with the cell and should be seated gently on clean contact surfaces. It helps with routine sample handling, but this product page does not present the closure as a pressure-rated or leak-tested sealing system.

First-use check

Inspect the optical faces and edges before first use.
Test the empty cell in your holder before filling.
Rinse with a compatible water-based cleaning method.
Run a blank in the same orientation planned for the sample.

Fit and optical alignment

The stated external dimensions apply to the uncapped cell body: 12.5 × 12.5 × 45 mm. Use those dimensions to check holder seating and top clearance, especially if your measurement setup leaves the closure in place.

Z Height is not stated for this SKU. If your instrument has a fixed beam position or tight fluorescence geometry, check beam alignment against the actual sample region before ordering. The 1.4 mL nominal capacity should not be treated as a minimum working volume.

Solvents and cleaning

This SKU uses Standard 80 adhesive-bonded quartz construction. For this reason, it is best suited to neutral, water-based sample routines rather than acid, alkali or organic-solvent service.

The supplier specifically prohibits ethanol soaking or rinsing for this option and excludes acid, alkali and organic-solvent use. Clean gently, avoid abrasive methods, do not use hydrofluoric acid on quartz, and avoid hot strong alkalis.

Included with this option

Price is for 1 cuvette. A closure is included with the cell.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements
