(C104TR2) Quartz Screw-Top Cuvette, 10 mm Path

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C104TR2

Original price was: $190.00.Current price is: $171.00.

In Stock

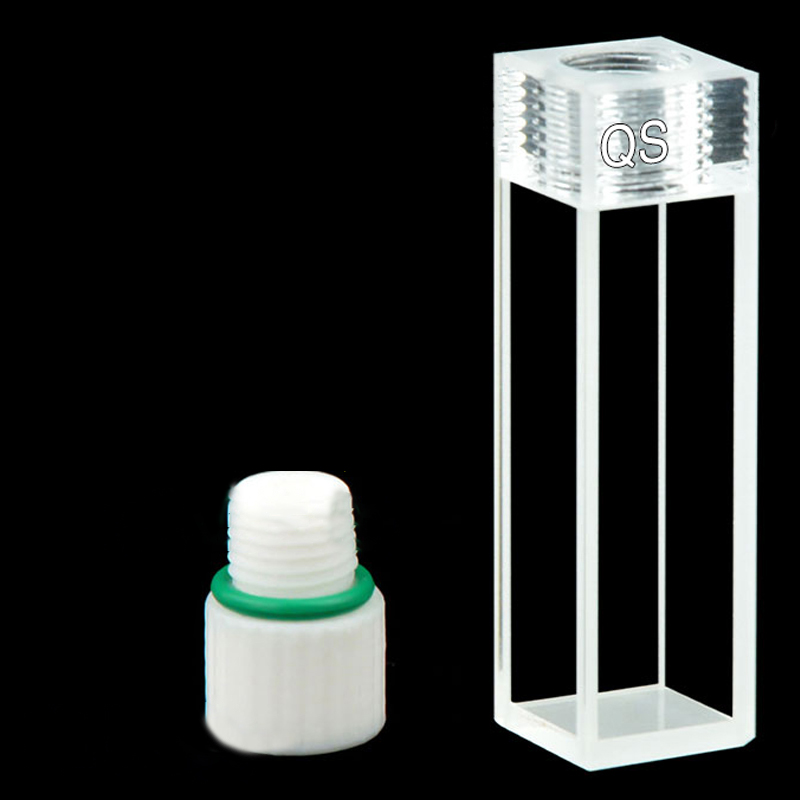

C104TR2 is a JGS1 quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path and Four-Way Light geometry. It suits methods that use a standard 1 cm path while needing optical access on all four sides in a covered cell format. Sold as 1 cuvette, with PTFE closure included.

In Stock

SKU: C104TR2 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TR2 is a JGS1 quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path and Four-Way Light geometry. It combines a standard 1 cm transmission path with optical access on all four sides, making it useful when your setup needs more than a simple two-face transmission layout. This listing is for 1 cuvette, with a PTFE closure included.

Path Length: 10 mm
Cell Type: Screw-Top Cuvette
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C104TR2 when you need a 10 mm quartz cuvette for UV/Vis work and want Four-Way Light geometry rather than a two-face cell. The covered format is useful when you prefer to keep the sample closed during normal preparation and measurement steps, while the four-side optical access gives you more freedom in how the cell is oriented within compatible optical setups.

What makes this option different

10 mm path length for UV/Vis methods built around a standard 1 cm path.
Four-Way Light geometry for optical access on all four sides of the cell.
JGS1 quartz body for quartz cuvette applications in UV/Vis work.
Sold as 1 cuvette with an included PTFE closure.

Using this cell

Fill the cuvette so the liquid fully covers the beam path used in your instrument. Before measurement, remove visible bubbles and keep the optical faces free of fingerprints, droplets and dried residue.

If your routine uses a covered sample, fit the supplied closure after filling and handle the cuvette by the non-optical surfaces where possible. Keep the same orientation for repeated blank and sample measurements when your method depends on consistent positioning.

First-use check

Inspect the optical faces and top assembly for dust, chips or scratches.
Rinse with a cleaning liquid suitable for your method.
Run a blank and verify full beam coverage in the filled cell.
Check that the cuvette seats securely and consistently in your holder.

Fit and optical alignment

The confirmed optical details for this item are the 10 mm path length and Four-Way Light layout. Exact external dimensions, overall height and Z Height are not established here, so check holder clearance and beam-center fit before ordering if your instrument uses a fixed beam position or tight top clearance.

Nominal volume is not settled for this exact option. If fill level is important to your method, confirm that your intended liquid height will cover the beam in your own setup.

Solvents and cleaning

Compare fabrication options if your sample or cleaning routine involves more demanding solvents. The chemical limits of this complete cuvette-and-closure assembly are not established here, so compatibility should be checked when solvent, concentration, temperature or contact time matters.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. Wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 quartz screw-top cuvette with an included PTFE closure. The exact box or other package contents are not listed here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes to dimensions, optical path length, sample volume, optical windows, closures or other fit requirements. If your setup depends on a specific holder, beam height or body envelope, send a drawing or labelled sketch with the critical dimensions and sample conditions.

Discuss your requirements and quote part number C104TR2.
