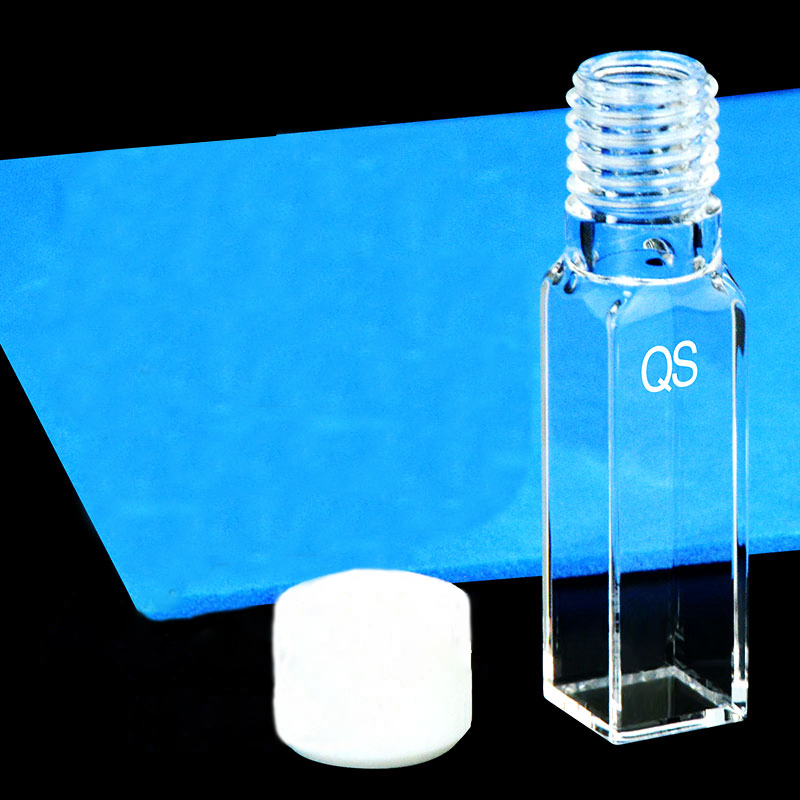

(C104TF6) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL

Weight	30 g
Dimensions	1.25 × 1.25 × 5.5 mm

SKU: C104TF6

Original price was: $233.00.Current price is: $210.00.

In Stock

Quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. The large screw-top format gives covered sample handling in a 12.5 × 12.5 mm square body, with a cap included. Supplied as 1 cuvette.

In Stock

SKU: C104TF6 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TF6 is a quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Four-Way Light geometry and a 3.5 mL nominal capacity. It gives you a covered screw-cap format together with a square 12.5 × 12.5 mm body, which is useful when you want a familiar full-size cuvette footprint and wider top access for filling or rinsing.

This option is supplied as 1 cuvette with a cap included. The body height is 35 mm, giving a practical reference for holder support at the optical section.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 35 mm
Body Height	35 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 0.01

Choose this option

Choose C104TF6 when your method uses a 10 mm UV/Vis path and you prefer a screw-cap cuvette instead of an open-top cell. The Four-Way Light layout gives optical access on all four sides, while the 3.5 mL nominal capacity suits routine liquid measurements in a square quartz body.

This SKU is listed in the Molded 0.01 fabrication category. For custom work, that category is used where tighter path-length requirements may matter, but any tolerance, documentation or project-specific requirement should be agreed for the actual order rather than assumed from the category name alone.

What makes this option different

10 mm optical path for UV/Vis methods built around the standard 1 cm path.
Large screw-top format with a cap included for covered sample handling.
Four-Way Light geometry with optical access on all four sides of the cell body.
Listed in the Molded 0.01 fabrication category.

Using this cell

Fill the cuvette with enough liquid to cover the instrument beam path, then secure the cap before measurement or transfer if your workflow uses the cell in a covered state. For routine UV/Vis work, keep the optical faces free of droplets, fingerprints and bubbles, and use the same orientation for blank and sample where consistent positioning matters.

The stated 3.5 mL value is the nominal cell capacity, not a minimum working volume. If your method is sensitive to fill height or beam position, check that the liquid level fully covers the beam under your actual operating conditions.

First-use check

Inspect the optical faces, threaded opening and cap for dust or handling residue.
Rinse with a cleaning liquid suitable for your sample and the full cell assembly.
Run a blank in the intended orientation before routine measurement.
Confirm that the filled sample covers the beam position in your setup.

Fit and optical alignment

The supported body dimensions are a 12.5 × 12.5 mm square base and a 35 mm body height. These dimensions are useful for checking holder clearance and insertion fit in accessories designed for square cuvettes.

Z Height is not established for this SKU, so instrument fit should not be assumed from outer body dimensions alone. If your holder or instrument uses a fixed beam-height position, verify that requirement before ordering.

Solvents and cleaning

This cuvette is in the Molded 0.01 fabrication category. For selection purposes, this category is commonly considered for work where tighter path-length requirements may be important, but chemical suitability still depends on the complete cell assembly and your actual sample and cleaning conditions.

Specific chemical compatibility limits for this selected assembly are not established here. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the optical faces with non-abrasive optical tissue or other non-scratching lab wipes.

Included with this option

One quartz screw-top cuvette, with a screw cap included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch together with holder or instrument information, critical dimensions, sample conditions and target quantity. Discuss your requirements and quote part number C104TF6.
