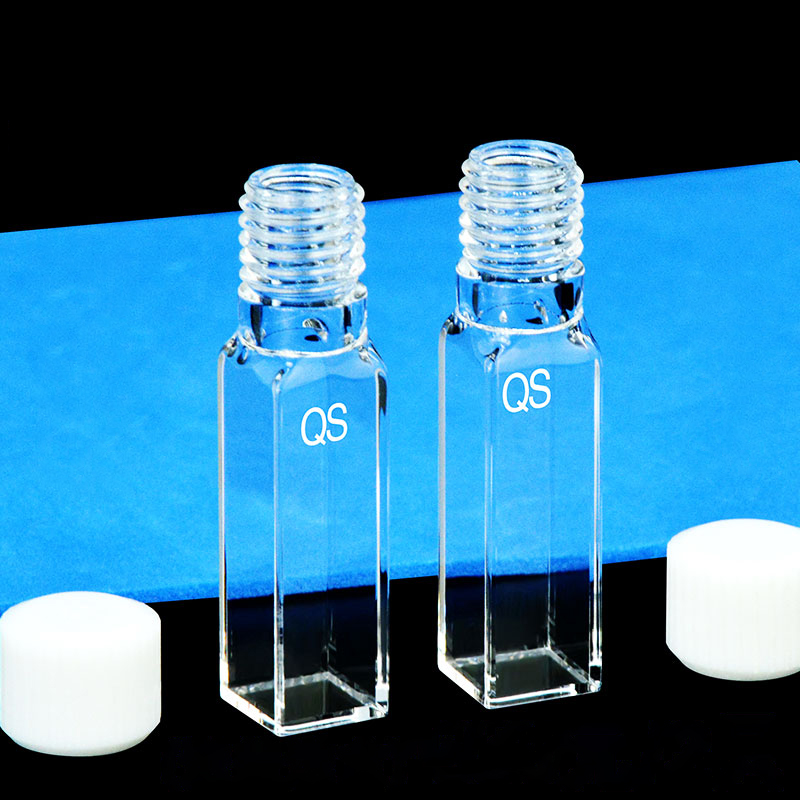

(C104TF7) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g
Dimensions	1.25 × 1.25 × 5.5 mm

SKU: C104TF7

Original price was: $466.00.Current price is: $420.00.

In Stock

C104TF7 is a quartz screw-top cuvette for UV/Vis work with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. The larger screw-top format gives a closed sample chamber with optical access on all four vertical sides for methods that need side access as well as the main transmission path. Sold as a pack of 2 cuvettes, with caps included.

In Stock

SKU: C104TF7 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TF7 is a quartz screw-top cuvette for UV/Vis spectroscopy when you need a 10 mm path in a closed, larger-volume cell. This option combines Four-Way Light geometry, a 3.5 mL nominal capacity and a square 12.5 × 12.5 mm body, so it suits methods that use a standard 10 mm transmission path but also benefit from optical access on the other vertical faces. It is sold as a pack of 2 cuvettes, with caps included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 35 mm
Body Height	35 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 0.01

Choose this option

Choose C104TF7 when your method is built around a 10 mm quartz cell and you want a screw-cap format rather than an open-top chamber. The 3.5 mL nominal capacity gives you a fuller sample chamber than short-path micro formats, while the Four-Way Light layout is useful where side optical access matters in addition to the main measurement direction.

What makes this option different

10 mm optical path for methods written around this common transmission length.
Four-Way Light configuration with optical access on all four vertical sides.
3.5 mL nominal capacity in a larger screw-top body than compact short-path cells.
Pack of 2 cuvettes with caps included in the priced sales unit.

Using this cell

Fill each cuvette through the screw opening and cap it before handling or measurement where your procedure calls for a closed cell. Keep the optical faces clean and use a consistent orientation for blank and sample so the same faces are presented to the beam each time.

The stated 3.5 mL is the nominal cuvette capacity, not a minimum working volume. If you plan to work below a full fill, check that the liquid level still covers the beam position in your instrument.

First-use check

Inspect both cells for clean optical faces and any handling residue.
Rinse with a liquid suitable for your sample and the complete cuvette assembly.
Run a blank using the same cell orientation planned for measurement.
Check that each capped cuvette seats cleanly in the holder without interference.

Fit and optical alignment

Each cuvette body has a 12.5 × 12.5 mm square base and a 35 mm optical body height. These dimensions are useful for checking holder slot size and vertical clearance around the cell body.

Z Height is not listed for this SKU, so body size alone does not confirm beam-center alignment in a spectrometer or accessory. If your holder depends on a defined beam height, please verify that requirement before ordering.

Solvents and cleaning

For a method with a defined optical path tolerance, specify that tolerance and its measurement conditions when selecting the Molded 0.01 option. The final requirement is agreed for the order.

This cuvette is listed in the Molded 0.01 fabrication category. That category is generally chosen where tighter path-length control is important, but chemical suitability still depends on the complete assembled cuvette, including the closure.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods, and wipe the optical faces gently with non-abrasive optical tissue or other non-scratching lab materials.

Included with this option

Pack of 2 quartz screw-top cuvettes, with caps included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that matter for your setup. Discuss your requirements and quote part number C104TF7.
