(C104TR4) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C104TR4

Original price was: $190.00.Current price is: $171.00.

In Stock

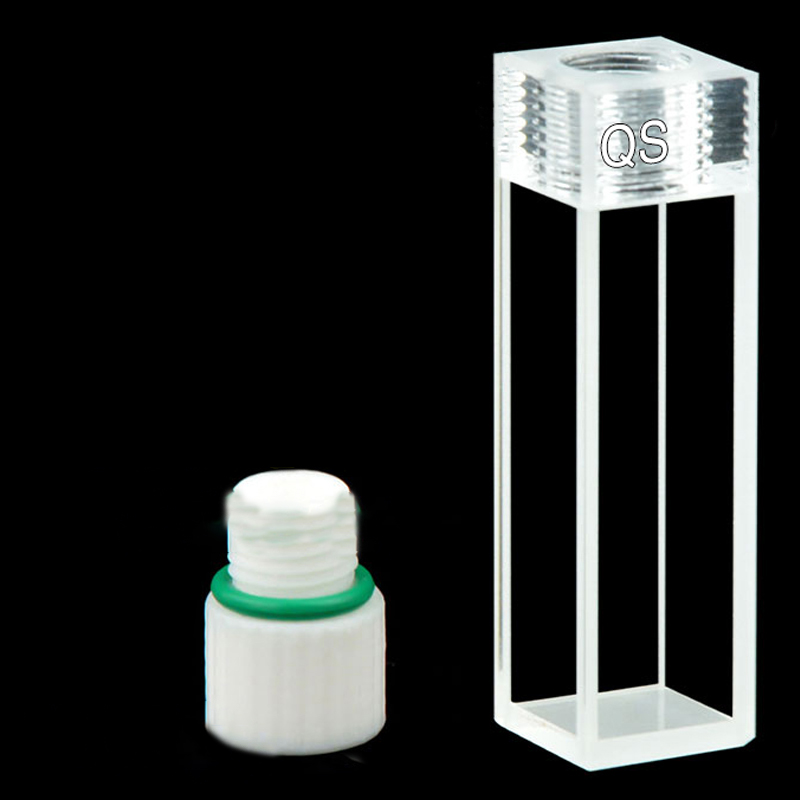

C104TR4 is a JGS1 quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. Its tall square body adds side optical access on all four vertical faces while keeping a covered sample opening with an included PTFE closure. Supplied as 1 cuvette.

In Stock

SKU: C104TR4 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TR4 is a JGS1 quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. It combines a tall square body with optical access on all four vertical faces and a threaded top with an included PTFE closure, making it a practical choice when you want a capped sample cell without giving up side access around the body. This option suits setups that use the standard 10 mm path but need more than a simple two-face transmission layout.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Overall Height without Closure	45 mm
Body Height	45 mm
Overall Height with Closure	55 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Material	PTFE
Closure Included	Yes
Closure Thread	M10

Choose this option

Choose C104TR4 when you need a 10 mm quartz cuvette with a covered opening and four-side optical access. The 3.5 mL nominal capacity and 45 mm body height make it a full-height cell rather than a low-profile format, while the 12.5 × 12.5 mm base keeps the standard square footprint used in many holders. The threaded top is useful when you want to fill the cell, cap it and handle it as one assembled piece.

What makes this option different

Four-Way Light geometry gives optical access from all four vertical faces.
10 mm optical path for methods built around the common 1 cm path length.
Tall square body with 3.5 mL nominal capacity in a 12.5 × 12.5 mm footprint.
PTFE screw closure included on an M10 threaded sample opening.

Using this cell

Fill the cell with sample, then fit the PTFE closure if your procedure calls for a covered cell during transfer or measurement. Keep the optical faces clean and free of droplets, residue and fingerprints, and keep the same orientation for blank and sample when your method depends on a fixed face relationship.

The 3.5 mL figure is the nominal cell capacity, not a minimum working volume. If your method uses a low fill level, check that the liquid covers the beam path in the orientation you plan to use.

First-use check

Before first use, inspect all optical faces under good light and check that the cap seats smoothly on the threaded opening. Rinse with a suitable blank or cleaning liquid for your method, then run a blank in the intended orientation before measuring samples.

Fit and optical alignment

The base is 12.5 × 12.5 mm, with a 45 mm uncapped height and 55 mm overall height when capped. Those dimensions help with holder and compartment-clearance checks, especially above the cuvette position if you plan to measure with the cap installed.

Z Height is not specified for this option. If your instrument or holder requires a defined beam-center height, verify that separately rather than assuming compatibility from the outer body size alone. The M10 thread identifies the sample-access closure and is not a pressure rating or fluid fitting standard.

Solvents and cleaning

Choose sample and cleaning conditions for the full assembly, including the quartz body and PTFE closure. The exact chemical limits of this assembled cell are not established here, so aggressive solvents, long contact times or demanding cleaning routines should be checked before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe the optical faces gently with non-abrasive optical tissue. For general construction background, see fabrication options.

Included with this option

Price is for 1 quartz screw-top cuvette. A PTFE closure is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can discuss related JGS1 quartz versions for different dimensions, optical path length, sample volume, optical access requirements, closure style or holder-fit details. If your setup has a defined beam position or compartment-clearance limit, send a labelled sketch or drawing with the critical dimensions. Discuss your requirements and quote C104TR4.
