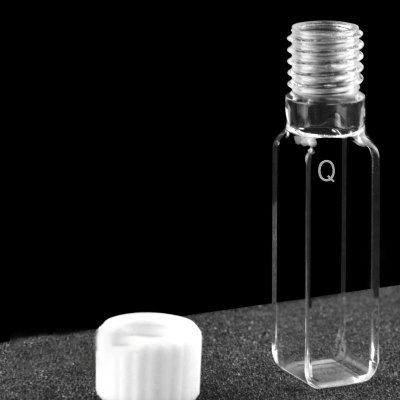

(C104TE14) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL

Weight	30 g
Dimensions	1.25 × 1.25 × 5.5 mm

SKU: C104TE14

Original price was: $176.00.Current price is: $159.00.

In Stock

Quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. The large screw-top opening gives wider top access for filling and rinsing, while the 12.5 × 12.5 mm square body suits common square-cell holder layouts. Supplied as 1 cuvette.

In Stock

SKU: C104TE14 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TE14 is a quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Four-Way Light geometry and a 3.5 mL nominal capacity. Its main selection point is the large screw-top opening paired with a 12.5 × 12.5 mm square body, so you can keep a familiar cuvette footprint while gaining wider top access for filling, pipetting and rinsing.

This format suits routine liquid measurements where you want optical access on all four sides and a covered screw-top style instead of an open-top chamber. The optical body height is 35 mm, which is useful when reviewing holder support and measurement-zone clearance.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 35 mm
Body Height	35 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Fabrication Method	Molded 83

Choose this option

Choose C104TE14 when your method is built around a 10 mm UV/Vis path and you want a square quartz cuvette with a larger threaded opening at the top. The wider access can be useful for sample transfer and cleaning steps, while the Four-Way Light layout supports measurement setups that use more than two optical faces. The stated 3.5 mL value is the nominal cell capacity for this geometry.

What makes this option different

Large screw-top opening for wider top access during filling, pipetting and rinsing.
10 mm optical path for UV/Vis methods written around the standard 1 cm path.
Four-Way Light geometry with optical access on all four sides of the cell body.
12.5 × 12.5 mm square body with 35 mm optical body height.

Using this cell

Fill the cuvette so the liquid fully covers the beam path used by your instrument, then remove visible bubbles from the optical region before measurement. The larger opening can make sample transfer and rinse steps easier when you are working with pipettes or repeated manual filling.

Use the same orientation for blank and sample runs if your procedure depends on consistent positioning. Hold the cell by the non-optical surfaces where possible to keep the light path clear of fingerprints and residue.

First-use check

Inspect the optical faces and the threaded opening for dust or handling residue.
Rinse with a cleaning liquid suitable for your method and the assembled cell.
Run a blank in the same orientation planned for sample measurement.
Confirm that the filled sample covers the beam position in your instrument.

Fit and optical alignment

The supported body dimensions are a 12.5 × 12.5 mm square base and a 35 mm optical body height. These are the practical dimensions to review against holder width, seating surfaces and clearance around the measurement section.

Z Height is not established for this SKU, so outer body size alone does not confirm beam-height compatibility. If your spectrometer, holder or accessory depends on a fixed bottom-to-beam-center position, check that requirement before ordering.

Solvents and cleaning

This cuvette uses Molded 83 fabrication. This fabrication type is commonly chosen for quartz cells used in methods that may involve organic solvents or temperature-related work, but the correct choice still depends on your actual sample, cleaning liquid and the complete assembled cell.

Specific chemical limits for this selected assembly are not listed here by concentration, temperature or contact time. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Price is for 1 cuvette. The product uses a screw-cap closure type, but the included package contents are not listed here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch together with holder or instrument information, critical dimensions, sample conditions and target quantity. Discuss your requirements and quote part number C104TE14.
