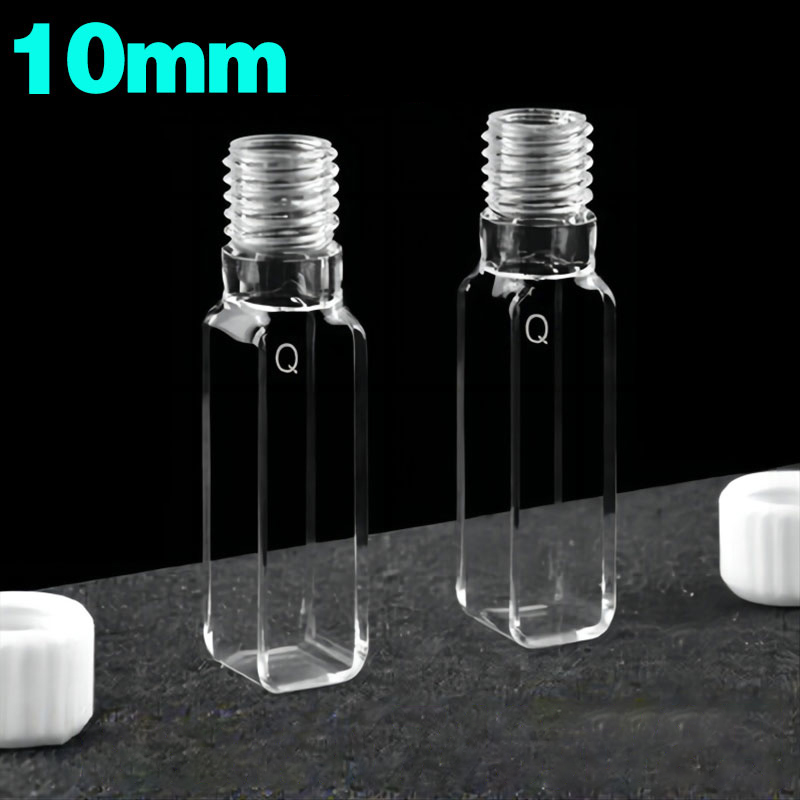

(C104TE16) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g
Dimensions	1.25 × 1.25 × 5.5 mm

SKU: C104TE16

Original price was: $352.00.Current price is: $317.00.

In Stock

Quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. The large screw-top format gives covered top access in a 12.5 × 12.5 mm square body for routine square-cell holder layouts. Supplied as a pack of 2, with caps included.

In Stock

SKU: C104TE16 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TE16 is a quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Four-Way Light geometry and a 3.5 mL nominal capacity. It combines a large screw-top format with a 12.5 × 12.5 mm square body, making it a practical option when you want a covered cell while keeping the familiar footprint of a full-size square cuvette.

This sale unit is a pack of 2, and caps are included. The optical body height is 35 mm, which is the key supported body-height reference for holder fit around the measurement section.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 35 mm
Body Height	35 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Closure Included	Yes

Choose this option

Choose C104TE16 when your method calls for a 10 mm UV/Vis quartz cuvette and you want screw-cap handling rather than an open-top chamber. The Four-Way Light layout gives optical access from all four sides of the cell body, and the 3.5 mL nominal capacity suits routine liquid measurements in a standard-style square format.

What makes this option different

10 mm optical path for UV/Vis methods written around the standard 1 cm path.
Large screw-top format with caps included for covered sample handling.
Four-Way Light geometry with optical access on all four sides.
Sold as a pack of 2 for the listed MQ sale unit.

Using this cell

Fill the cell so the beam passes through a clear, bubble-free sample region, then apply the cap if your workflow uses the cuvette in a covered state. Keep the optical faces clean and use the same orientation for blank and sample if your procedure depends on consistent positioning.

The stated 3.5 mL value is the nominal capacity of the cell, not a minimum working volume. If your method is sensitive to fill height or beam position, check that the liquid level fully covers the beam in your instrument before routine use.

First-use check

Inspect the optical faces and threaded opening for dust, residue or handling marks.
Rinse with a cleaning liquid suitable for your sample and the assembled cell.
Run a blank at your measurement wavelength in the intended orientation.
Confirm that the filled sample fully covers the beam position in your setup.

Fit and optical alignment

The supported body dimensions are a 12.5 × 12.5 mm square base with a 35 mm body height. These are the practical dimensions to check for holder clearance, insertion fit and support at the optical section.

Z Height is not established for this option, so instrument fit should not be assumed from outer body dimensions alone. The Four-Way Light layout describes the optical-face arrangement, but it does not by itself confirm compatibility with any specific instrument or holder geometry.

Solvents and cleaning

Quartz is used here for UV/Vis spectroscopy. Chemical limits for this selected assembly are not established here by concentration, temperature or contact time, so if your sample or cleaning routine involves aggressive chemicals, extended contact time or elevated temperature, check suitability for the exact assembled cell before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the optical faces gently with non-abrasive optical tissue. For general fabrication background, see this overview.

Included with this option

Supplied as a pack of 2 cuvettes for the listed sale. Screw cap closure is included. No additional package contents are specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different quartz cuvette layout, we can review custom requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and tolerances. Send a dimensioned drawing or labelled sketch, plus instrument or holder details and your sample conditions. Discuss your requirements and quote part number C104TE16.
