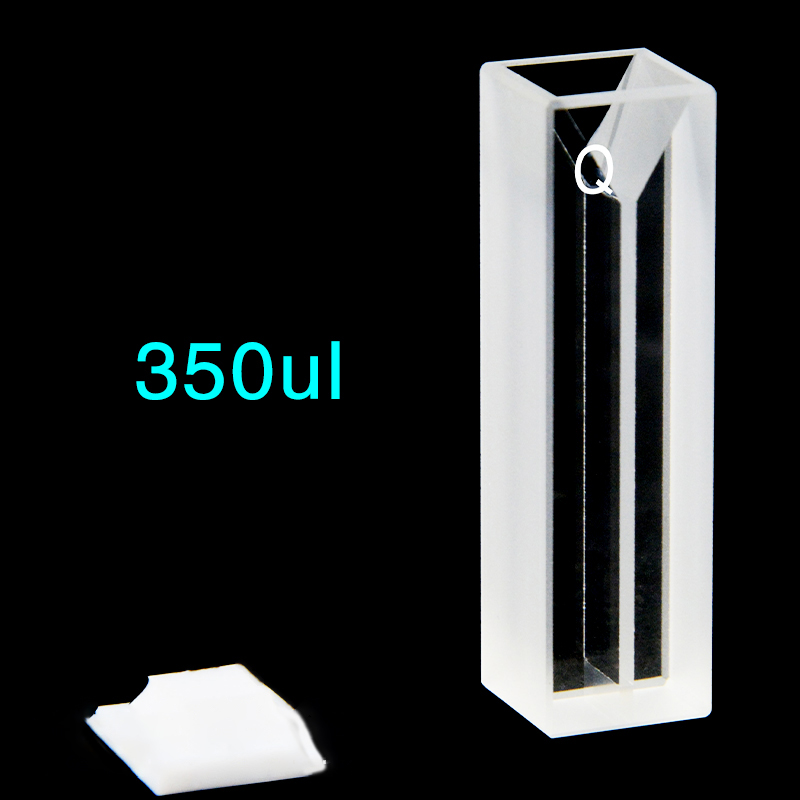

(C102CS32) Quartz Micro Cuvette, 10 mm Path, 350 µL

Weight	30 g

SKU: C102CS32

Original price was: $19.00.Current price is: $18.00.

In Stock

C102CS32 is a JGS1 quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, 350 µL nominal capacity and a 1 mm sample region in a Two-Way Light layout. This adhesive-bonded Standard 80 option is intended for neutral solutions and is supplied as 1 cuvette with a PTFE lid included.

In Stock

SKU: C102CS32 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CS32 is a JGS1 quartz micro cuvette for UV/Vis work when you need a 10 mm optical path in a smaller 350 µL format. Its 1 mm sample region helps you manage beam coverage more carefully in the filled chamber, and the supplied PTFE lid covers the top after filling. This adhesive-bonded Standard 80 option is sold as 1 cuvette.

Path Length: 10 mm
Sample Volume (Nominal): 350 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Material	PTFE
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	1 mm

Choose this option

Choose C102CS32 when your method uses neutral, water-based samples and you want a compact quartz UV/Vis cell rather than a larger-volume cuvette body. The 10 mm optical path keeps the usual absorbance geometry, while the 350 µL nominal capacity and 1 mm sample region are useful when sample amount and beam placement both matter. The included PTFE lid suits top access handling, provided you also leave room above the cell in your holder setup.

What makes this option different

JGS1 quartz body for UV/Vis spectroscopy, with a stated 200–2500 nm range.
10 mm optical path in a 350 µL nominal-volume micro cuvette format.
Two-Way Light configuration for transmission measurement through the stated path.
1 mm sample region, which makes complete beam coverage important during filling and alignment.
Adhesive-bonded Standard 80 construction for neutral solutions only.
PTFE lid included for top closure after filling.
12.5 × 12.5 × 45 mm uncapped body dimensions for checking holder fit separately from lid clearance.

Using this cell

Fill the cell so the illuminated region is fully covered during measurement, and keep bubbles away from the optical faces. Use the same orientation for blank and sample measurements so the beam passes through the same part of the sample region each time.

The 350 µL figure is the nominal capacity, not a minimum working volume. Seat the PTFE lid gently after filling, and use it as a cover for measurement rather than as a pressure-rated or transport seal.

First-use check

Inspect the optical faces, edges and rim for dust, residue or shipping marks.
Test fit the empty body in the holder and confirm lid clearance above the cell.
Run a blank at your working wavelength and confirm that the filled sample covers the beam without bubbles.

Fit and optical alignment

The listed 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Check that your holder accepts that body size and leaves enough clearance above the rim for the lid arrangement.

Z Height is not specified for this SKU. If your instrument depends on a defined beam-center height, check actual holder geometry and beam position before ordering instead of assuming alignment from the outer body dimensions alone.

Solvents and cleaning

This is an adhesive-bonded Standard 80 cuvette. For this exact SKU, that construction matters for sample and cleaning choice: it is intended for neutral solutions only and should be used with room-temperature, water-based methods rather than organic or strongly corrosive media.

Do not soak or rinse this cell with ethanol, and do not use acids, alkalis or organic solvents with this adhesive-bonded option. For cleaning, use methods suitable for neutral aqueous residue, avoid abrasive treatment, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

One C102CS32 micro cuvette with a PTFE lid included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch, your holder or instrument information, the critical dimensions and tolerances, and your sample conditions. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and reference C102CS32.
