(C102SS32) Quartz Stoppered Cuvette, 10 mm Path, 700 µL

Weight	30 g

SKU: C102SS32

Original price was: $86.00.Current price is: $78.00.

In Stock

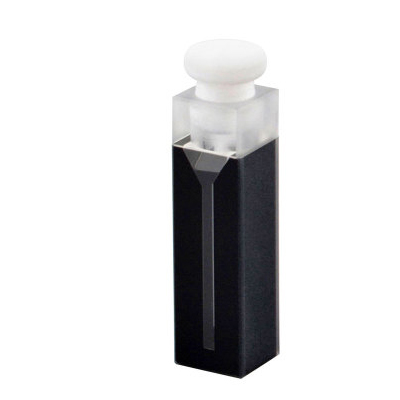

C102SS32 is a JGS1 quartz stoppered cuvette with a 10 mm optical path, Two-Way Light layout, 700 µL nominal capacity and a 2 mm sample-region channel. It is a practical choice when you need a covered micro-volume format while keeping a standard 10 mm transmission path for UV/Vis work from 200 to 2500 nm. Supplied as 1 cuvette with stopper included.

In Stock

SKU: C102SS32 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SS32 is a JGS1 quartz stoppered cuvette for UV/Vis measurements from 200 to 2500 nm. It combines a 10 mm optical path with a 700 µL nominal capacity and a 2 mm sample-region channel, making it suitable when your method uses a standard path length but the filled sample region is intentionally compact. The included stopper keeps this option in a covered handling format, and the listed price is for 1 cuvette.

Path Length: 10 mm
Sample Volume (Nominal): 700 µL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	2 mm

Choose this option

Choose C102SS32 when you need a 10 mm transmission path in a smaller-volume stoppered cell. The narrow 2 mm sample-region channel and 700 µL nominal capacity make this version useful for methods that work with limited sample volume, while the stopper gives you covered access during loading, transport between steps and routine measurement handling.

What makes this option different

10 mm optical path for methods written around that path length.
700 µL nominal capacity in a compact micro-volume format.
2 mm sample-region channel for this exact narrow-channel version.
Two-Way Light layout for transmission through the main opposing optical faces.
JGS1 quartz body for UV/Vis use from 200 to 2500 nm.
Stopper included for covered sample handling.

Using this cell

Load enough liquid to cover the beam position used by your instrument, then insert the stopper gently. Keep the same orientation for blank and sample, and check for bubbles or droplets around the sample region before measurement.

The 700 µL figure is nominal capacity, not a minimum working fill. If your method runs at lower fills or depends on a very specific liquid height over the beam, verify beam coverage in your own holder before routine use.

First-use check

Inspect the optical faces and edges for chips, dust or handling marks.
Rinse with a suitable liquid for your method before first use.
Test-fit the cell in the holder and confirm that the beam passes through the filled sample region.
Insert the stopper gently and make sure it seats cleanly without forcing it.

Fit and optical alignment

This cell uses a Two-Way Light layout, so the intended measurement direction is through one opposing window pair rather than through multiple side directions. The body height is 45 mm and the base is 12.5 × 12.5 mm, which helps when reviewing holder clearance and bench-top fit.

Z Height is not established for this SKU, and the 45 mm body height does not establish the overall height with the stopper in place. If your instrument depends on a specific bottom-to-beam height or has limited top clearance around the stopper, check those points before ordering.

Solvents and cleaning

This cuvette uses Standard 80 adhesive-bonded quartz construction. For routine selection, that makes it best suited to room-temperature water-based samples and buffers. Avoid organic samples and organic cleaning solvents with this adhesive-bonded cell.

Detailed chemical limits for the full assembled cell are not established here, so if your method involves stronger chemicals, elevated temperature or longer contact time, please check suitability before use. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and clean the optical faces with a non-abrasive laboratory wipe.

Included with this option

Supplied as 1 cuvette. A stopper is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, window arrangement, Z Height, closures and fabrication requirements. If your holder or instrument has a specific beam position or clearance limit, send a drawing or labelled sketch with the critical dimensions. You can contact us here and reference part number C102SS32.
