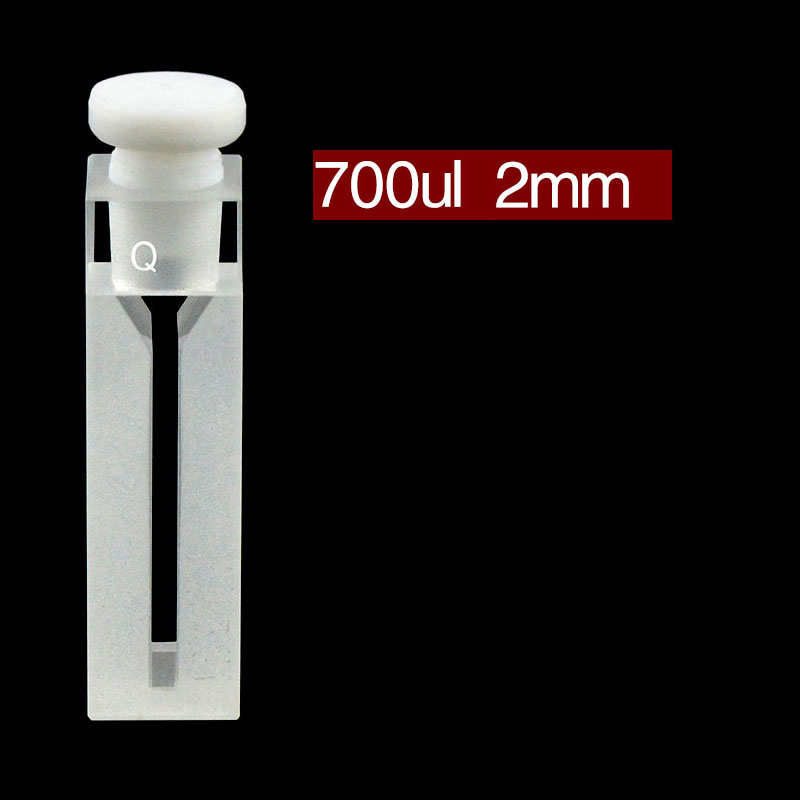

(C102SR22) Quartz Micro Cuvette, 10 mm Path, 700 µL

Weight	30 g

SKU: C102SR22

Original price was: $167.00.Current price is: $151.00.

In Stock

C102SR22 is a JGS1 quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, Two-Way Light layout and 700 µL nominal capacity. Its 2 mm sample-region width gives a broader illuminated region than narrower slit options, and this price unit is for 1 cuvette with a stopper included.

In Stock

SKU: C102SR22 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SR22 is a JGS1 quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, a 700 µL nominal capacity and a stopper-equipped format. Its 2 mm sample-region width suits methods that need a broader illuminated region than very narrow slit styles within a micro cuvette. This price unit is for 1 cuvette, with a stopper included.

Path Length: 10 mm
Sample Volume (Nominal): 700 µL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	2 mm
Sample Volume (Nominal)	700 µL
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Detection Channel Width	2 mm

Choose this option

Choose this cell when your method uses a 10 mm path and benefits from a 2 mm sample region rather than a narrower channel. The 700 µL nominal capacity gives more filling volume within the same general micro cuvette style, which can make routine beam coverage easier when your method does not require the narrowest slit width. The stopper covers the opening during handling, but it is not presented as a pressure-rated or leak-proof seal.

What makes this option different

10 mm optical path for straight-through UV/Vis measurement in a micro cuvette format.
700 µL nominal capacity for small-volume work with more filling volume than the narrowest slit variants.
2 mm sample-region width for methods that need a broader illuminated region.
Two-Way Light layout with stopper for covered handling and measurement through the main optical faces.

Using this cell

Fill the cuvette so the illuminated sample region is fully covered before measurement. Keep bubbles, residue and droplets away from the optical faces, and use the same seating direction for blank and sample measurements to keep the light path consistent.

Seat the stopper carefully after filling and keep the contact area clean. If your workflow includes inversion, transport after filling or any closed arrangement, check sealing behaviour under your own conditions rather than assuming a leak-tight or pressure-tight closure.

First-use check

Inspect the optical faces, opening and stopper seating area before first use. Rinse with a suitable liquid for your method, run a blank, and confirm that the beam passes through the intended faces with the sample region fully covered and free from trapped bubbles.

Fit and optical alignment

Review holder clearance and beam position before ordering if your setup has tight geometric limits. The external body dimensions and Z Height are not established here for this exact option, so fit should be checked directly where holder geometry or beam height is important.

The 2 mm sample-region width should match the beam footprint used in your method. The 700 µL figure is the nominal capacity of the cell and should not be treated as the minimum working fill required to cover the beam.

Solvents and cleaning

Quartz is the body material for this cuvette, but the chemical limits for this exact assembled option are not established here. If your sample or cleaning routine includes aggressive chemicals, check suitability for the full cuvette assembly before ordering. For general fabrication background across cuvette constructions, see this fabrication guide.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the exterior optical faces gently with non-abrasive optical tissue.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows, Z Height, closures and fabrication. Send a dimensioned drawing or labelled sketch, together with your holder or instrument details, critical dimensions, sample conditions and target quantity. Discuss your requirements and quote part number C102SR22.
