(C104SS22) Quartz Stoppered Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g

SKU: C104SS22

Original price was: $238.00.Current price is: $215.00.

In Stock

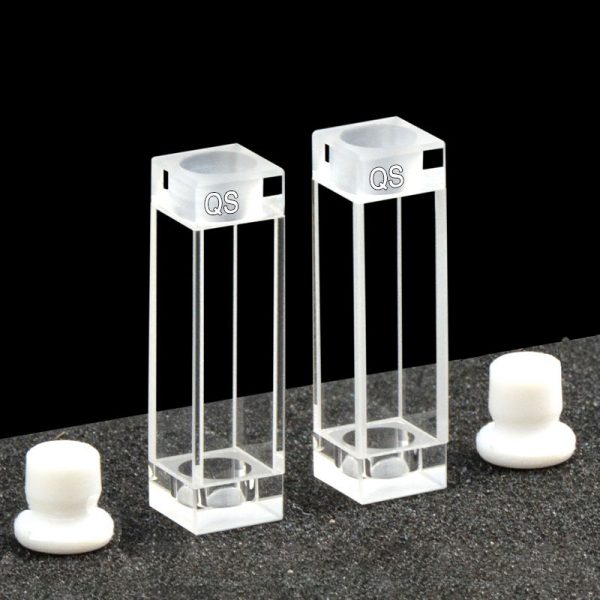

C104SS22 is a JGS1 quartz stoppered cuvette for fluorescence spectroscopy, built with a 10 mm optical path, Four-Way Light access and 3.5 mL nominal capacity. Its 12.5 × 12.5 mm base and 45 mm body height help you check holder seating and vertical clearance separately from the optical specification. Sold as a pack of 2 cuvettes.

In Stock

SKU: C104SS22 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SS22 is a JGS1 quartz stoppered cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light configuration and 3.5 mL nominal capacity. This combination suits methods that need a standard 10 mm transmission path together with side optical access, while the 12.5 × 12.5 mm base and 45 mm body height give practical starting dimensions for checking holder space.

The cell uses a supplier-described fused integrated construction. For method selection, that construction detail is most useful when you are considering the sample and cleaning routine for this exact cuvette: review the assembly type together with your liquid, rinse solvent and exposure conditions rather than choosing on path length alone.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper

Choose this option

Choose C104SS22 when your method calls for a 10 mm quartz cell and also uses side optical access in a fluorescence setup. The 3.5 mL nominal capacity makes it a full-size sample cell rather than a micro-format item, so it is suited to methods prepared around this nominal fill range, provided your instrument geometry and beam height are checked separately.

What makes this option different

10 mm optical path for methods specified around this standard transmission length.
Four-Way Light configuration adds side optical access that is relevant to fluorescence measurement geometry.
3.5 mL nominal capacity gives the nominal sample volume for this cell body; it is not a stated minimum working volume.
JGS1 quartz construction supports use across the stated 200–2500 nm wavelength range of this SKU.
12.5 × 12.5 mm base with 45 mm body height helps you check holder seating and clearance without assuming complete instrument fit.
Supplier-described fused integrated construction is a useful selection point when reviewing sample chemistry and cleaning routine for this exact cell.

Using this cell

Use this cell for fluorescence spectroscopy methods that require the supported optical arrangement of this SKU. Fill so the liquid covers the measurement region required by your method, remove visible bubbles and keep the same orientation for blank and sample runs.

The 3.5 mL figure is a nominal capacity, not a specified working minimum. If your method depends on a fixed beam-center height or very low fill level, confirm those conditions in your holder before routine use.

First-use check

Inspect the optical faces for shipping residue or handling marks, place the cell in the holder and confirm stable seating. Run a blank with your intended liquid and verify that the illuminated region is fully covered under your actual measurement setup.

Fit and optical alignment

The confirmed body dimensions available for fit planning are a 12.5 × 12.5 mm base and 45 mm body height. These help you check whether the cell can seat in the holder and whether there is enough vertical clearance around the body.

Z Height is not stated for this SKU, so do not assume alignment with a fixed optical axis from the base dimensions alone. If your instrument has a defined beam position, verify that geometry before ordering.

Solvents and cleaning

This cuvette uses a supplier-described fused integrated construction, which is best considered as a practical selection point for sample and cleaning conditions rather than a performance claim by itself. When choosing among constructions, compare your intended liquids and rinse procedure with the guidance in the cuvette fabrication methods article.

For this exact SKU, chemical limits are not specified as a complete compatibility list. Keep hydrofluoric acid away from quartz, avoid hot strong alkalis and abrasive cleaning, and clean the optical faces gently with non-abrasive optical tissue and a cleaning routine appropriate to your method.

Included with this option

2 cuvettes per listed price unit. If your setup depends on specific supplied stopper details or other package components, please check those contents before ordering.

Availability and ordering

Order this listed specification directly, or ask about current availability and dispatch. If your delivery date is important, ask before checkout; preparation or production time is separate from transit and customs clearance.

Discuss a custom version

If you need a different optical path, body geometry or installation fit, send a drawing or describe the change you need. Custom JGS1 quartz enquiries are assessed separately from this listed specification, and feasibility, quantity, price and production time are confirmed in the project quotation.
