(C104CF1) Quartz Fluorescence Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C104CF1

Original price was: $418.00.Current price is: $377.00.

In Stock

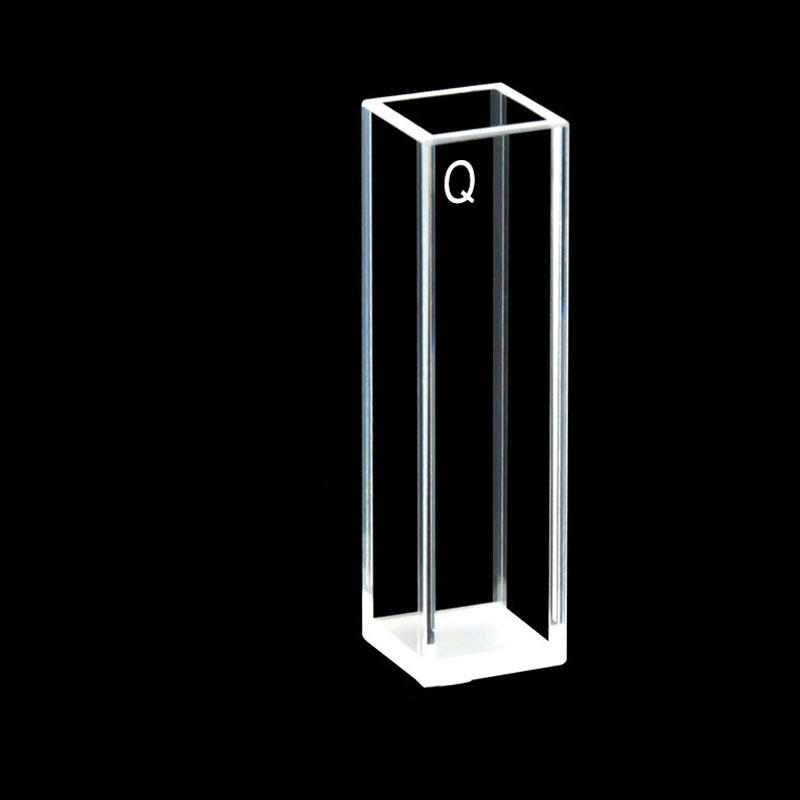

C104CF1 combines a 10 mm optical path with Four-Way Light access for fluorescence measurements. This JGS1 quartz cuvette has a 3.5 mL nominal capacity and an accompanying closure, allowing the sample to be covered after filling.

In Stock

SKU: C104CF1 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CF1 is a JGS1 quartz fluorescence cuvette with a 10 mm optical path, Four-Way Light access and 3.5 mL nominal capacity. It provides optical access around a full-size sample chamber, with an accompanying closure for covering the opening after filling.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 0.01

Choose this option

Choose this format when your fluorescence method uses a 10 mm path and illumination and collection are arranged through different optical faces. Match those faces to your instrument geometry and keep the same orientation for blank and sample measurements.

What makes this option different

Four-Way Light access: allows excitation and collection to use different faces in a suitable fluorescence setup.
3.5 mL nominal capacity: identifies the chamber capacity; the working fill must cover the illuminated sample region.
Closure included: lets you cover the opening between preparation steps; no pressure or leak-tight rating is specified.
Molded 0.01 option: consider this fabrication when a closely specified optical path is central to your method, with the required tolerance and measurement conditions agreed for the order.

Using this cell

Fill the cell so the beam passes through a continuous liquid region without bubbles. Check the liquid level against the beam footprint, then run a blank using the same seating and orientation intended for the sample. Nominal capacity does not establish the minimum working volume.

First-use check

Inspect the optical faces and closure-contact areas for chips or residue.
Test the empty cell in the holder without forcing it into place.
Run a blank and check beam coverage before measuring samples.

Fit and optical alignment

The uncapped body measures 12.5 × 12.5 × 45 mm. Check holder seating and side clearance using these body dimensions, and allow space above the opening for handling the closure.

Z Height is not established for this option. If your holder requires a defined beam-center height, confirm that alignment before ordering.

Solvents and cleaning

Molded 0.01 is the option to consider when your method calls for closely specified optical-path precision. For the 10 mm path on this cell, agree the required tolerance and measurement conditions for the order.

Chemical suitability must cover the complete cell and closure; it cannot be inferred from the fabrication name alone.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and clean the exterior optical faces gently with non-abrasive optical tissue. Check aggressive chemicals, elevated temperature or extended contact time for the actual assembly before use.

Included with this option

The cell has an accompanying closure. Confirm the quantity covered by the quoted offer when ordering.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For a different path, body size or optical layout, send a dimensioned drawing, holder details and sample conditions. Contact us with part number C104CF1 so we can review the specification and quote the proposed configuration.
