(C104CE1) Quartz Fluorescence Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C104CE1

Original price was: $266.00.Current price is: $240.00.

In Stock

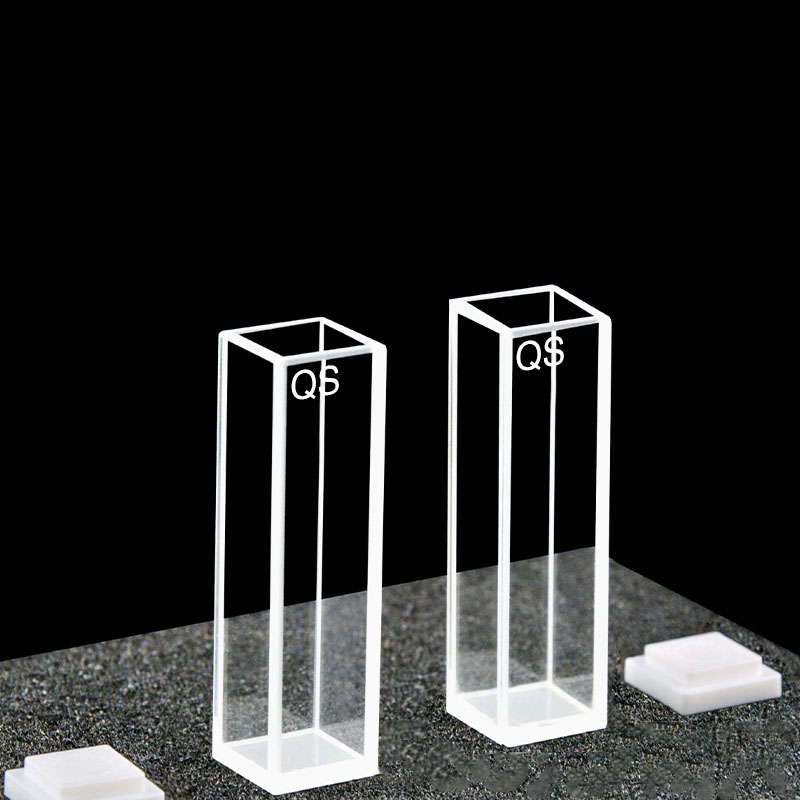

C104CE1 is a JGS1 quartz fluorescence cuvette with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. This Molded 83 option suits fluorescence setups that need multi-side optical access in a standard square-body format. This listing is priced as a Pack of Two, and closure supply is included.

In Stock

SKU: C104CE1 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE1 is a JGS1 quartz fluorescence cuvette with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity for fluorescence spectroscopy. This option uses Molded 83 fabrication, making it a useful choice when you are selecting a fluorescence cell for methods that may involve organic solvents or temperature-controlled work. A closure is included, and this listing is priced as a Pack of Two.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
MQ Grade	Molded 83
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83

Choose this option

Choose C104CE1 when you need a standard 10 mm fluorescence cuvette with optical access on four sides and you specifically want the Molded 83 construction option. Its 3.5 mL nominal capacity stays within a familiar routine-use range, while the 12.5 × 12.5 mm square body helps you assess holder fit in instruments designed for this common footprint.

What makes this option different

10 mm optical path for methods set up around the standard 1 cm path length.
Four-Way Light configuration for fluorescence measurements that use more than one optical direction.
Molded 83 fabrication as a construction option often selected for organic-solvent methods or work involving temperature control.
Uncapped outer dimensions of 12.5 × 12.5 × 45 mm for holder seating and compartment clearance checks.

Using this cell

Introduce the sample in the orientation required by your fluorescence method, then keep that orientation consistent for blank and sample measurements. Before placing the cuvette in the holder, check that the beam area is free of bubbles or residue and that the outside optical faces are clean and dry.

If your method involves organic solvents or controlled temperature, consider the complete wetted setup rather than the quartz body alone. The closure and any other contact components should also suit the way the cell will be used.

First-use check

Inspect the cell for chips, scratches or residue, then rinse it with a cleaning method that suits your application. Test the empty cell in the holder first, and confirm the excitation and collection orientation you plan to keep through the measurement sequence.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions are for the uncapped cell. Use that body size to check holder fit and available compartment space, and allow extra clearance above the cell for any installed closure.

Z Height is not stated for this option. If your instrument requires a specific beam-center height, check that point before ordering instead of assuming it from the outer dimensions.

Solvents and cleaning

Molded 83 is commonly chosen when comparing cuvette construction options for organic-solvent methods and applications involving temperature control. Use sample and cleaning conditions that suit the complete assembly, especially where contact time or reagent strength matters.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe exterior optical faces gently with non-abrasive optical tissue. Specific chemical limits for this exact complete assembly are not stated here.

Included with this option

Pack of 2 fluorescence cuvettes, with closure supply included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a related JGS1 quartz custom cell, we can review changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures or connections, and tolerance requirements. Send a dimensioned drawing or labelled sketch, your holder or instrument details, sample conditions and target quantity via Contact us, and quote part number C104CE1.
