(C102CE1) Quartz Standard Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g

SKU: C102CE1

Original price was: $95.00.Current price is: $86.00.

In Stock

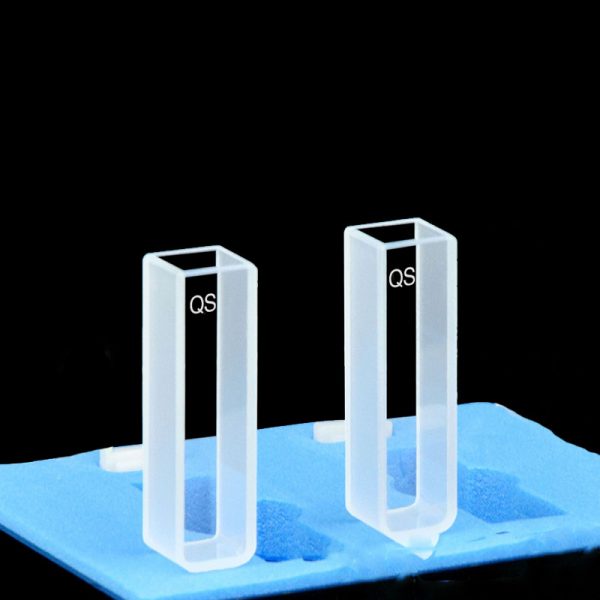

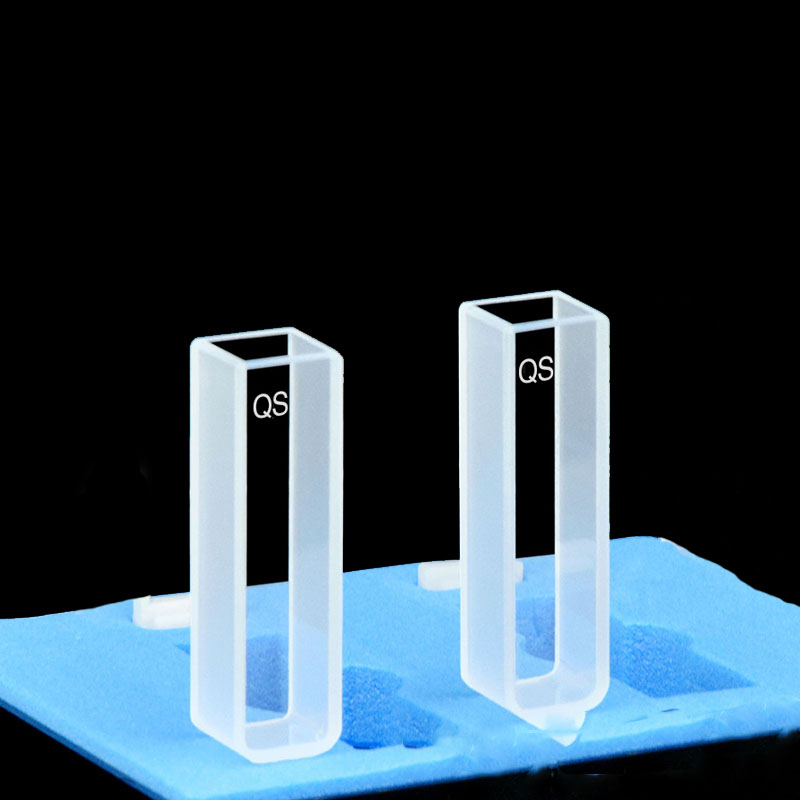

C102CE1 is a quartz standard cuvette with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. Its open-top body suits direct filling, and a closure is included. Sold as a pack of 2 cuvettes.

In Stock

SKU: C102CE1 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CE1 is a quartz standard cuvette with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. The open-top rectangular body makes it easy to fill and rinse in routine bench use, while the included closure can cover the sample opening during normal handling. This listing is sold as a pack of 2 cuvettes.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C102CE1 when you need a standard rectangular quartz cell for straight-through measurements with a 10 mm path. Its 3.5 mL nominal capacity and familiar body size suit general liquid measurements where you want direct top access for filling, blanking and rinsing.

What makes this option different

10 mm optical path for methods written around the common 1 cm cell format.
Two-Way Light layout for straight-through transmission measurements.
Open-top quartz body for direct pipette filling and straightforward cleaning between samples.
Pack of 2 cuvettes per listed price unit, with a closure included.

Using this cell

Fill from the top and use enough sample to cover the instrument beam during measurement. For routine blank and sample work, keep the same orientation in the holder and remove visible bubbles from the optical region before reading.

Handle the cuvette by the outer non-optical surfaces where possible. The nominal 3.5 mL value describes capacity, not a minimum working volume, so methods that use lower fill levels should be checked against the actual beam position in your instrument.

First-use check

Inspect the optical faces for dust, fingerprints or shipping marks.
Place an empty cell in the holder to confirm seating and clearance.
Fill with blank solution and confirm that the liquid level fully covers the beam path.
Check for bubbles before measurement.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the cell body. Use that body size to check holder seating and basic physical clearance in instruments designed for rectangular cuvettes.

Z Height is not established for this SKU. If your instrument or holder depends on a defined beam-center height, confirm that directly before ordering rather than assuming interchangeability from the outer body format alone.

Solvents and cleaning

Chemical compatibility for this exact SKU is not established here, so check the full sample and cleaning conditions for the complete assembly before routine use. Do not use hydrofluoric acid on quartz.

Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with suitable non-abrasive optical wipes. For broader background across cuvette constructions, see fabrication options.

Included with this option

Supplied as a pack of 2 quartz cuvettes. A closure is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom quartz versions for different dimensions, optical path lengths, sample volume, optical window arrangements, Z Height or closure details. Send a dimensioned drawing or labelled sketch, identify the critical dimensions and application conditions, and contact us through our contact page with part number C102CE1.
