(C102CQE) Quartz Standard Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g

SKU: C102CQE

Original price was: $114.00.Current price is: $103.00.

In Stock

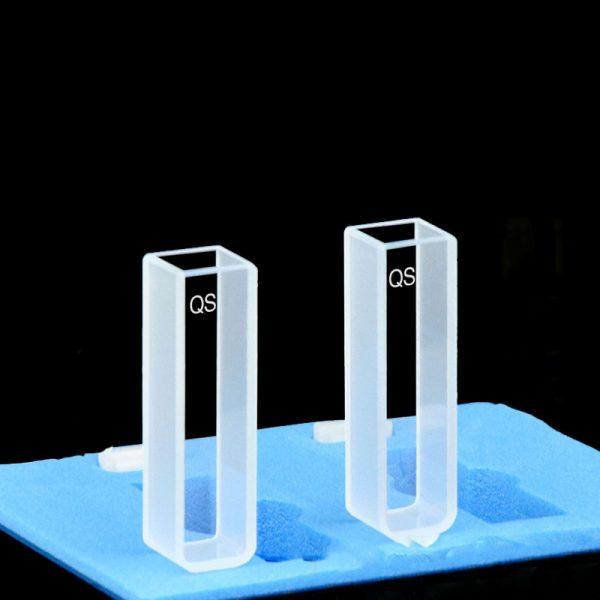

C102CQE is a quartz standard cuvette with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. Its open-top body suits direct filling for routine transmission measurements, and the MQ sale unit is a pack of 2 cuvettes with a closure included for this option.

In Stock

SKU: C102CQE Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CQE is a quartz standard cuvette in the familiar 10 mm format for straight-through transmission work. It combines a Two-Way Light layout with a 3.5 mL nominal capacity and an open-top body, so you can fill the cell directly and use a standard-size cuvette where your method is written around a 1 cm path. This MQ listing is sold as a pack of 2 cuvettes.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C102CQE when you need a full-size quartz cuvette with a standard 10 mm path and simple top access for manual filling. The open body is practical for routine liquid handling, while the 3.5 mL nominal capacity fits general laboratory sample preparation without moving into micro-volume geometry. A closure is included for this option, which is useful when you want a covered cell between filling and measurement.

What makes this option different

10 mm optical path in a standard cuvette format for methods built around the common 1 cm path length.
Two-Way Light layout for direct transmission measurements through opposite optical faces.
Open-top quartz body for straightforward filling, rinsing and visual sample loading from above.
MQ sale unit is 2 cuvettes per price unit, with a closure included for this option.

Using this cell

Fill from the top and make sure the liquid level fully covers the beam during measurement. For best consistency, keep the same orientation for blank and sample runs and hold the cell by the non-optical sides to reduce fingerprints on the clear faces.

The stated 3.5 mL is a nominal capacity for this cell design. It should not be treated as a minimum working volume, so low-fill methods should be checked in your own holder and beam position before routine use.

First-use check

Inspect the optical faces and top opening for dust, fingerprints or residue.
Rinse the cell with a liquid suitable for your method before first measurement.
Place the cell in the holder and confirm that the filled sample covers the beam path.

Fit and optical alignment

The body dimensions are 12.5 × 12.5 × 45 mm, with a 12.5 × 12.5 mm base. These dimensions help you check basic holder fit and seating if your instrument uses a close-fitting standard cuvette well.

The recorded size applies to the body only. If your setup has limited space above the holder, allow separate clearance for the included closure. Z Height is not established for this SKU, so do not assume beam-center alignment from body height alone when your instrument depends on a specific bottom-to-beam-center position.

Solvents and cleaning

For general background on quartz cuvette constructions, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods, and wipe the optical faces gently with non-abrasive optical tissue. Specific chemical limits for this exact assembled SKU are not established here, so if your sample or cleaning routine involves aggressive chemicals, extended contact time or solvent cleaning, check suitability for the full cell assembly before use.

Included with this option

Price is for a pack of 2 cuvettes. A closure is included with this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; final specifications, quantity, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and mention part number C102CQE.
