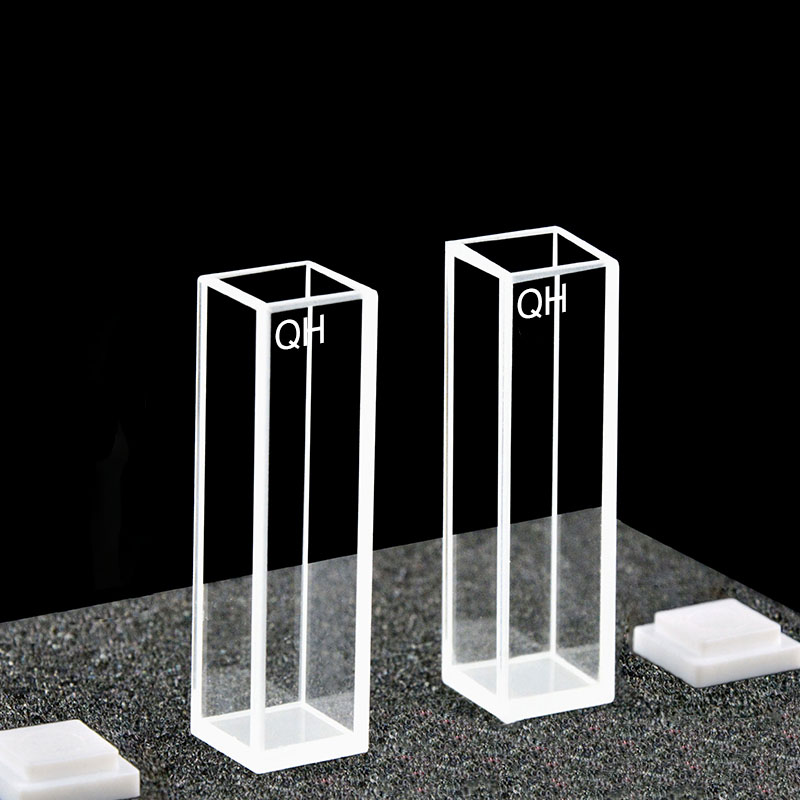

(C104CR2) Quartz Fluorescence Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C104CR2

Original price was: $124.00.Current price is: $112.00.

In Stock

C104CR2 is a JGS1 quartz fluorescence cuvette with a 10 mm optical path, Four-Way Light access and 3.5 mL nominal capacity. It suits fluorescence setups that use optical access from more than one side, and a closure is included. Supplied as 2 cuvettes per listed price unit.

In Stock

SKU: C104CR2 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CR2 is a JGS1 quartz fluorescence cuvette with a standard 10 mm optical path and Four-Way Light access around the sample region. Its 3.5 mL nominal capacity keeps it in a familiar full-size format for routine liquid handling, while the included closure helps cover the cell during normal use. This option is supplied as 2 cuvettes per listed price unit.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C104CR2 when your fluorescence method uses a standard 10 mm cuvette but also needs side optical access around the sample. The four-way layout is useful for measurement geometries that involve more than one optical direction, while the full-size body avoids moving to a reduced-volume cell format.

What makes this option different

Four-Way Light configuration for optical access on four sides of the sample region.
10 mm optical path in a full-size 3.5 mL nominal-capacity cuvette.
JGS1 quartz body for fluorescence spectroscopy over the stated 200–2500 nm range.
Closure included, with outside dimensions stated for the uncapped cell body.

Using this cell

Fill the cuvette so the beam passes through a stable liquid column without bubbles in the optical region. Align the faces to the excitation and collection directions used by your method, and keep the same orientation for blank and sample measurements.

Handle the cell by the upper area where possible and keep the optical faces free from fingerprints, droplets and residue. The included closure covers the cell during routine handling, but no pressure or leak-tightness rating is stated for this SKU.

First-use check

Inspect the windows on arrival, rinse the cell with a suitable liquid for your method, and place it empty or blank-filled in the holder to confirm seating and clearance. Before measurement, make sure the beam path is free from bubbles, particles and visible surface residue.

Fit and optical alignment

The stated outside dimensions, 12.5 × 12.5 × 45 mm, apply to the uncapped cell body. Use them to check holder seating and sample-compartment clearance, then allow extra top space for the closure in place.

Z Height is not provided for this item. If your fluorescence holder or instrument depends on a specific beam-center height, verify that point before ordering rather than inferring it from the outside dimensions.

Solvents and cleaning

This quartz cuvette is specified for fluorescence spectroscopy over 200–2500 nm, but the chemical limits for the exact finished assembly are not listed here. If your samples or cleaning routine involve aggressive solvents, high temperature or long contact time, review the full cell suitability for those conditions before regular use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. After use, rinse promptly and wipe the outer optical faces gently with non-abrasive optical tissue.

Compare fabrication options if you are reviewing different constructions for sample chemistry and cleaning method.

Included with this option

2 cuvettes per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz projects for requirements involving dimensions, optical path length, sample volume, windows or Z Height, closures and fabrication or tolerance requirements. Send a dimensioned drawing or labelled sketch, together with holder details, sample chemistry, contact conditions and target quantity. Discuss your requirements and quote part number C104CR2.
