(C104CR3) Quartz Fluorescence Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C104CR3

Original price was: $124.00.Current price is: $112.00.

In Stock

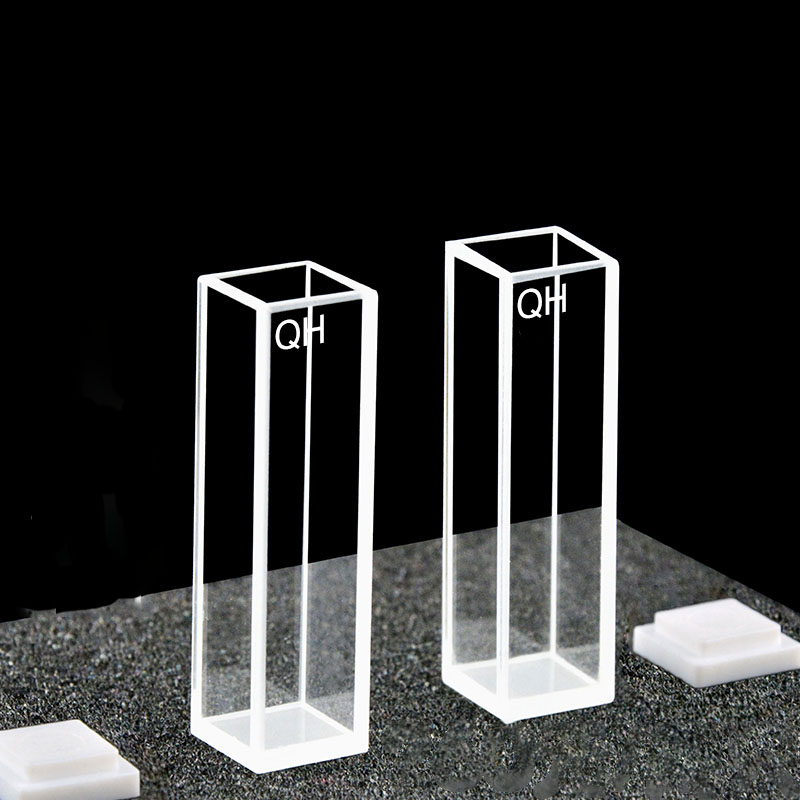

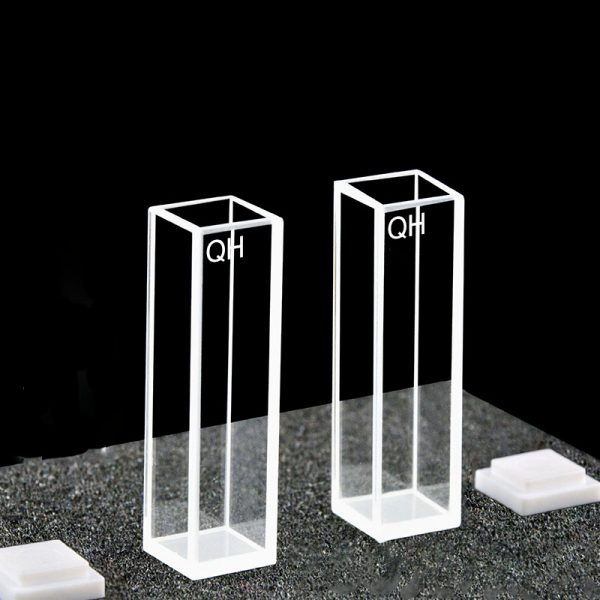

C104CR3 is a JGS1 quartz fluorescence cuvette with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. It suits fluorescence measurements that use a standard 1 cm path with optical access through multiple faces. Sold per pack of 2 cuvettes, with closures included.

In Stock

SKU: C104CR3 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CR3 is a JGS1 quartz fluorescence cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. It is a good fit for routine fluorescence work when you need a standard square cell with optical access on four sides instead of only a front-and-back transmission pair. Closures are included, and the listed price unit is a pack of 2 cuvettes.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C104CR3 when your method uses a full-size 10 mm fluorescence cuvette and your optical setup benefits from side access as well as the main beam direction. The 3.5 mL nominal capacity suits standard liquid handling, while the pack-of-2 sale unit is practical when you want a spare cell or a dedicated blank and sample cell in the same order.

What makes this option different

Pack of 2 cuvettes per listed price unit.
10 mm optical path matches the common 1 cm cuvette format.
Four-Way Light geometry supports fluorescence layouts using adjacent optical faces.
Closure included for covering the sample after filling.

Using this cell

Load the sample so the illuminated section is free from bubbles, droplets and residue on the optical faces. For fluorescence work, keep the cuvette orientation the same between blank and sample measurements so the excitation and collection geometry stays consistent.

The stated 3.5 mL value is the nominal capacity of the cell, not a minimum working fill. If you measure with the closure in place, check that it does not obstruct your instrument lid or any optical access used by the holder.

First-use check

Inspect the optical faces for dust, fingerprints or handling marks.
Test the empty cuvette in your holder and check top clearance with the closure arrangement you plan to use.
Run a blank in the same orientation planned for the sample.

Fit and optical alignment

The verified external dimensions are 12.5 × 12.5 × 45 mm for the uncapped cell. Use those dimensions for holder seating and body clearance checks, but do not treat them as the full installed height because the closure size is not stated here.

Z Height is not established for this option. If your holder or instrument requires a defined beam-center height, confirm that point before ordering rather than assuming a standard fit.

Solvents and cleaning

This cuvette is made from JGS1 quartz. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning methods.

Exact chemical limits for this SKU are not established here, so do not choose it on the basis of a broad solvent-resistance assumption. Wipe the optical faces gently with non-abrasive optical tissue and check suitability if your sample or cleaning routine involves demanding chemicals.

Included with this option

2 cuvettes per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes involving dimensions, optical path length, sample volume, optical windows, Z Height and closure details. Send a dimensioned drawing or labelled sketch together with your holder information and sample conditions, and contact us with part number C104CR3.
