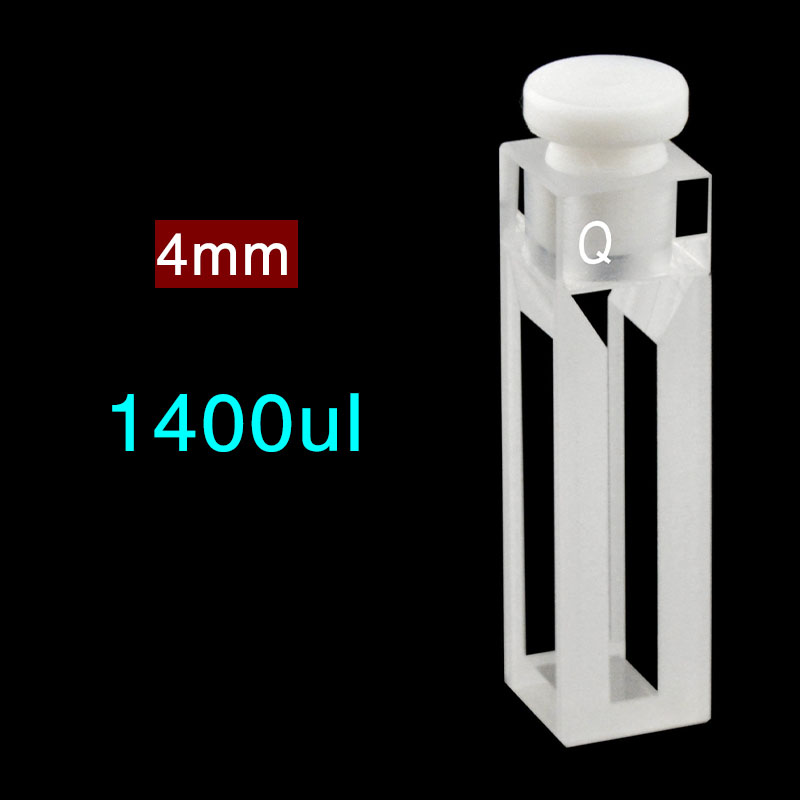

(C104SR20) Quartz Micro Cuvette, 10 mm Path, 1.4 mL

Weight	30 g

SKU: C104SR20

Original price was: $293.00.Current price is: $264.00.

In Stock

C104SR20 is a quartz micro cuvette with a 10 mm optical path, Four-Way Light access and a stoppered neck for covered fluorescence measurements. Its 1.4 mL nominal capacity and 4 mm sample-region width suit methods that need a broader illuminated section in a micro cuvette format. Sold per 1 cuvette, with stopper included.

In Stock

SKU: C104SR20 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SR20 is a quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and a stoppered neck. Its 1.4 mL nominal capacity and 4 mm sample-region width make it a practical choice when you want covered sample handling together with optical access from four sides. This sale option is priced per 1 cuvette and includes the stopper.

Path Length: 10 mm
Sample Volume (Nominal): 1.4 mL
Opening Configuration: Stoppered Neck

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	4 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.4 mL
Material	Quartz
Closure Type	Stopper
Closure Included	Yes
Opening Configuration	Stoppered Neck
Detection Channel Width	4 mm

Choose this option

Choose C104SR20 when your method uses a 10 mm path length but you also want a stoppered micro cuvette with a broader sample section. The covered neck helps with filling and handling for samples that should not be left open during measurement, while the Four-Way Light layout supports fluorescence setups that use side optical access.

What makes this option different

10 mm optical path suits methods built around the standard 10 mm light path.
Four-Way Light configuration gives optical access from four sides for compatible fluorescence geometry.
Stoppered neck allows filling through the top and covering the sample before measurement.
1.4 mL nominal capacity with 4 mm sample-region width combines micro-cuvette handling with a relatively broad illuminated sample section.

Using this cell

Fill the cuvette through the neck, then place the stopper gently and evenly before moving the cell into the holder. Keep the optical faces clean, and make sure the beam passes through a fully covered liquid region rather than through bubbles, foam or a partially filled section.

Use a consistent orientation for blanks and samples, especially in fluorescence work where measurement geometry matters. The 1.4 mL figure is the nominal capacity of the cell, not a minimum working volume.

First-use check

Before first use, inspect the windows, neck and stopper seating area for dust or residue. Rinse with a suitable liquid for your method, place the cuvette in the holder, and run a blank to confirm that the illuminated region is fully covered at your working fill level.

Fit and optical alignment

The defined optical features here are the 10 mm path length and the 4 mm sample-region width. These help you match the cell to your beam footprint and method layout, especially if your instrument uses side excitation or detection.

Check holder clearance and beam height before ordering for a specific instrument. Z Height is not listed here, so instrument fit should be reviewed rather than assumed from the path length alone.

Solvents and cleaning

This quartz cuvette is listed for use across 200–2500 nm in this product record. For general construction background, see Compare fabrication methods.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Detailed chemical limits for this exact SKU are not established here, so aggressive chemicals or prolonged contact should be reviewed before use.

Included with this option

This option includes one quartz micro cuvette and its stopper.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions related to dimensions, path length, optical windows, Z Height, closures or other fit requirements. Send your drawing or labelled sketch, holder or instrument details, sample conditions and target quantity through Discuss your requirements, and refer to part number C104SR20.
