(C104TS4) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C104TS4

Original price was: $176.00.Current price is: $159.00.

In Stock

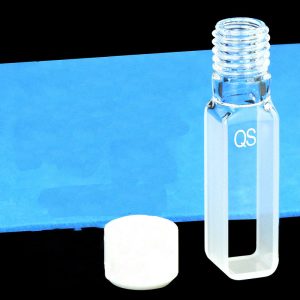

C104TS4 is a JGS1 quartz screw-top cuvette with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. Its threaded neck and supplied PTFE screw cap suit enclosed sample handling while keeping the familiar square cuvette body format. Sold as 1 cuvette.

In Stock

SKU: C104TS4 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TS4 is a JGS1 quartz screw-top cuvette for measurements that use a 10 mm optical path and need optical access from four sides. The threaded neck, PTFE screw cap and 3.5 mL nominal capacity make it a practical choice when you want a covered quartz sample cell rather than an open-top format. Sold as 1 cuvette.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Opening Configuration: Threaded Neck

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 38 mm
Overall Height without Closure	54 mm
Body Height	38 mm
Overall Height with Closure	58 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Material	PTFE
Closure Included	Yes
Fabrication Method	Molded 83
Opening Configuration	Threaded Neck

Choose this option

Choose C104TS4 when you need a full-size quartz cuvette with Four-Way Light geometry and direct top access for filling. The square 12.5 × 12.5 mm body keeps the familiar rectangular cuvette format, while the screw cap helps during sample preparation, transfer and covered measurement handling. This version is suited to routine liquid work where a 10 mm path and multiple optical faces matter more than minimum sample volume.

What makes this option different

10 mm optical path for methods set up around the standard 10 mm light path.
Four-Way Light configuration with optical access on all four sides of the body.
Threaded neck with PTFE screw cap included for top filling and covered handling.
Sold as 1 cuvette for individual use or replacement.

Using this cell

Fill the cell through the threaded neck and seat the screw cap after loading if your procedure calls for a covered sample. Use the same orientation for blank and sample when your method depends on consistent positioning, and keep the optical faces free from droplets, fingerprints and bubbles in the beam area.

The stated 3.5 mL value is a nominal capacity, not a minimum working volume. If your method depends on beam height or low fill levels, check that the liquid level will fully cover the beam in your own setup.

First-use check

Before first use, inspect the optical faces under good light and rinse the sample chamber with a solvent suitable for your method. After filling, confirm that the beam area is covered, the cap is properly seated and no bubbles remain on the optical path.

Fit and optical alignment

The body measures 12.5 × 12.5 mm with a 38 mm body height, 54 mm overall height without the cap and 58 mm overall height with the cap fitted. These dimensions help you check holder clearance above the cuvette, especially where lids, clamps or top-loading accessories sit close to the sample compartment.

Z Height is not established for this SKU, so this listing does not claim a specific beam-center match for any instrument. If your holder or fluorometer requires a defined beam height, please check that requirement before ordering.

Solvents and cleaning

Molded 83 is used here with a quartz cell body and PTFE screw cap. The source describes the cell as suitable for acids, alkalis and organic liquids, but the actual solvent, concentration, temperature, exposure time and full closure compatibility are not specified for every condition.

Check the complete assembly against your actual sample and cleaning routine when conditions are aggressive or prolonged. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

One C104TS4 cuvette with a PTFE screw cap. This sale is for 1 cuvette.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch, plus your holder or instrument information, critical dimensions, sample conditions and target quantity. Discuss your requirements and reference C104TS4.
