(C104CD14) Quartz Ultra-Micro Cuvette, 10 mm Path, 20 µL

Weight	30 g

SKU: C104CD14

Original price was: $285.00.Current price is: $257.00.

In Stock

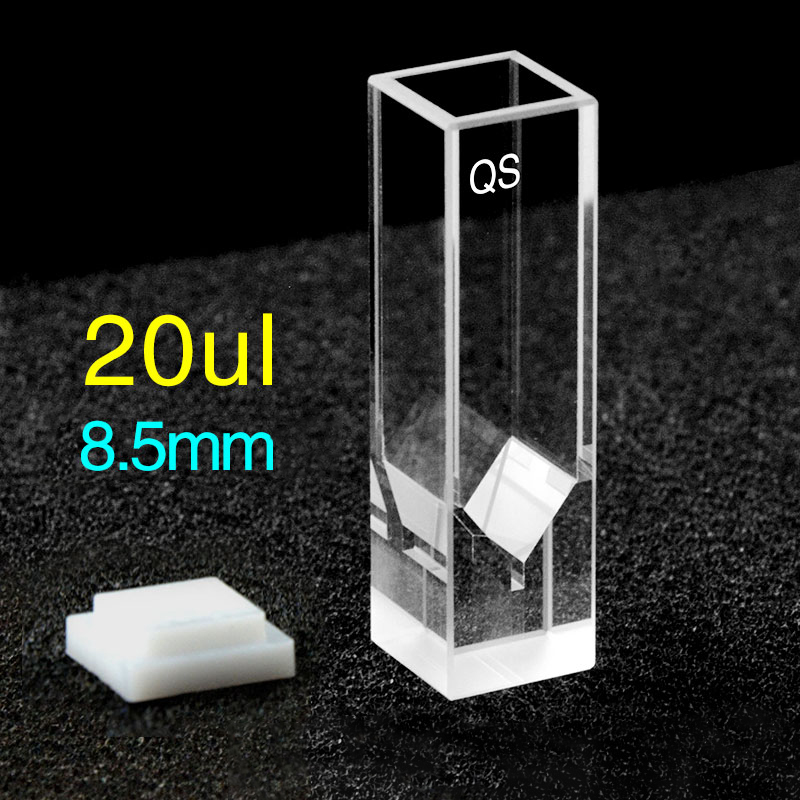

C104CD14 is a JGS1 quartz ultra-micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and 20 µL nominal capacity. Its open-top cell body gives direct access for pipette loading and visual sample checking. Supplied as 1 cuvette per price unit.

In Stock

SKU: C104CD14 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CD14 is an ultra-micro JGS1 quartz cuvette for fluorescence work when you need a 10 mm optical path but want to keep the nominal cell volume at 20 µL. The open-top body lets you fill and inspect the sample directly from above, while the Four-Way Light layout supports optical access around the sample region. Supplied as 1 cuvette per price unit, this option suits small-volume bench loading rather than a closed or permanently assembled format.

Path Length: 10 mm
Sample Volume (Nominal): 20 µL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	20 µL
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C104CD14 when your method is built around a 10 mm path and a very small nominal volume, and when direct top access matters for loading, checking or rinsing the sample chamber. The combination of open-top handling and Four-Way Light access is useful for fluorescence setups that rely on side optical geometry around the measurement region.

What makes this option different

10 mm optical path in an ultra-micro cell format.
20 µL nominal capacity for small sample loads.
Four-Way Light configuration for optical access around the sample region.
Open-top body for direct filling, viewing and cleaning from above.
JGS1 quartz cell body for fluorescence spectroscopy use.

Using this cell

Load the sample from the top with a suitable pipette and check that the illuminated region is fully covered before measurement. Keep bubbles, splashes and dried residue away from the optical faces, especially in small-volume work where a small trapped air pocket can affect the measurement area.

This is an open-top cell body, so use it as a directly filled sample cell rather than a sealed container. The stated 20 µL is the nominal capacity for this option, not a released minimum working volume.

First-use check

Inspect the cuvette on arrival and rinse it with a suitable liquid for your method before first use. Test the empty cell in the holder, then confirm with a blank or sample that the liquid covers the measurement region without visible bubbles and that you can repeat the same orientation each time.

Fit and optical alignment

Check the holder opening, side clearance and beam position before ordering. Four-Way Light describes the optical access category for this cell, but your instrument or fluorescence accessory still needs the correct beam geometry and physical support for the body style.

A customer-release Z Height is not established for this SKU, so fit should be checked against your actual holder or fixture instead of assumed from the family name. If you want a fit review, send your holder model or drawing to https://machinedquartz.com/contact/.

Solvents and cleaning

The body material is JGS1 quartz, but the exact chemical limits for this sale option are not established here. If your work involves aggressive reagents, mixed solvent systems, long contact times or specialised cleaning liquids, check suitability for the complete assembly before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the exterior optical faces gently with non-abrasive optical tissue. For general background, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

Supplied as 1 cuvette. No closure or accessory is specified as included with this sale option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs are quoted separately from the listed SKU. Please reference C104CD14 when you contact us at https://machinedquartz.com/contact/.
