(C014CS13) Quartz Screw-Top Cuvette, 1 mm Path, 350 µL, Pack of 2

Weight	30 g
Dimensions	1.25 × 0.35 × 5.5 mm

SKU: C014CS13

Original price was: $618.00.Current price is: $557.00.

In Stock

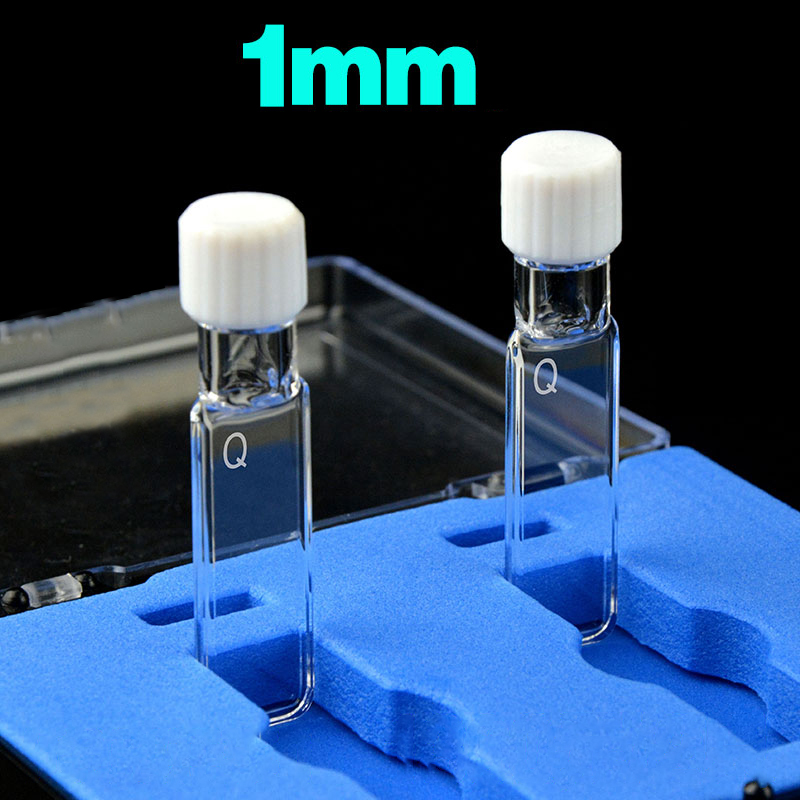

JGS1 quartz screw-top cuvette with a 1 mm optical path, Four-Way Light access and 350 µL nominal capacity. This short-path format also carries a stated 200–2500 nm wavelength range and is supplied as a pack of 2 cuvettes, with closures included.

In Stock

SKU: C014CS13 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C014CS13 is a JGS1 quartz screw-top cuvette with a 1 mm optical path, Four-Way Light geometry and 350 µL nominal capacity. It combines a short-path quartz measurement cell with a covered threaded opening, and the pack-of-two sale unit suits workflows that need the same listed cell for blank and sample runs, duplicate preparation or a spare on hand.

Path Length: 1 mm
Sample Volume (Nominal): 350 µL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	1 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
Overall Height without Closure	54 mm
Body Height	38 mm
Base Dimensions	12.5 × 3.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 83

Choose this option

Choose C014CS13 when your method needs a 1 mm path in a compact screw-top quartz cell and you want optical access from more than two sides. The 350 µL nominal capacity works with short-path handling, while the stated 200–2500 nm range makes this option relevant across UV to near-infrared methods that use compatible beam geometry.

What makes this option different

1 mm optical path for short-path transmission methods.
Four-Way Light geometry with optical access from multiple sides of the cell body.
Threaded opening with closures included for covered filling and handling.
Pack of 2 cuvettes as the priced sale unit for this SKU.

Using this cell

Fill the cell so the illuminated region is fully covered, then close it and place it in the holder with the intended optical faces aligned to the beam. The nominal volume is 350 µL, but minimum working volume is not specified, so confirm your own fill level if beam height or low-volume handling is important.

Handle the cell by non-optical surfaces and keep the windows free from bubbles, droplets and residue. For blank and sample measurements, keep the same orientation in the holder to maintain consistent optical positioning.

First-use check

Inspect the optical faces before first use, then rinse with a suitable blank or cleaning liquid for your method. After filling, verify in your own holder that the beam passes through a fully covered, bubble-free sample region and that the closure seats correctly for routine handling.

Fit and optical alignment

The base dimensions are 12.5 × 3.5 mm, the body height is 38 mm, and the overall uncapped height is 54 mm. These figures are useful for checking holder width, insertion clearance and vertical space around the neck area before ordering.

Z Height is not specified for this SKU, so do not assume beam-center compatibility from the overall size alone. Four-Way Light describes the optical access pattern of the cell body, not automatic compatibility with a particular spectrometer or holder.

Solvents and cleaning

This cuvette uses Molded 83 fabrication. This type is commonly chosen for methods involving organic solvents and for temperature-related applications, but the exact chemical limits for the complete assembled cell are not specified here.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with non-abrasive optical tissue or another suitable lint-free material, and check suitability first if your procedure involves aggressive chemicals or long exposure.

Included with this option

The listed sale unit is a pack of 2 cuvettes. Closures are included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. If you need a different fit, send a labelled drawing or sketch together with holder information, critical dimensions and sample conditions. Discuss your requirements and quote part number C014CS13.
