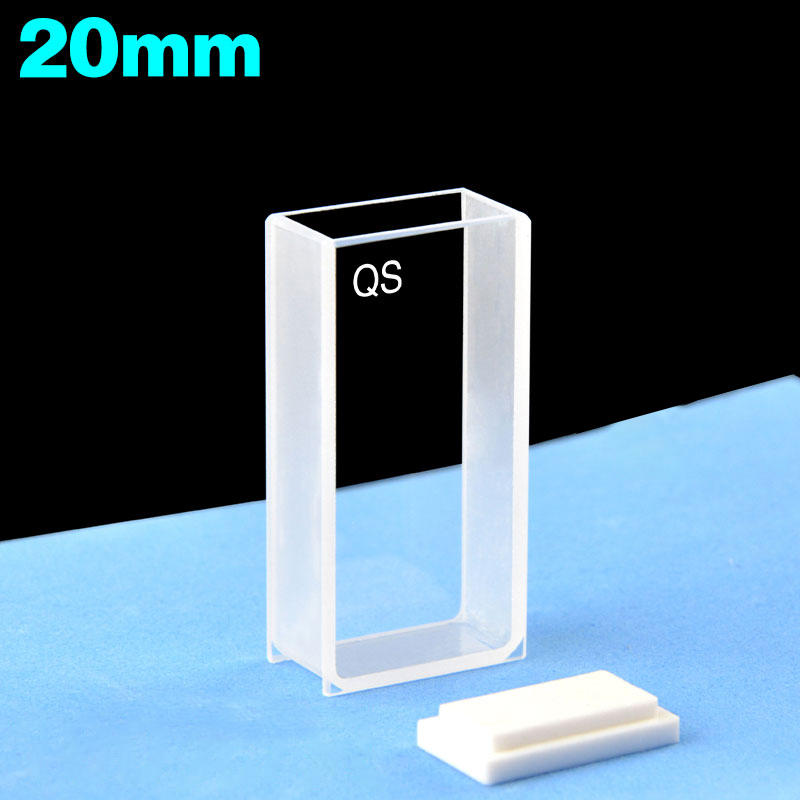

Quartz 10mm Path / 20mm Body Large Surface Cuvette, 7 ml, Sintered 83, Two-way Light, PTFE Cap, C202CR6

Weight	30 g

SKU: C202CR6

C202CR6 Quartz 10mm large surface cuvette – 7ml Sintered 83 Two-Way Light PTFE Cap

Original price was: $86.00.Current price is: $78.00.

In Stock

Quartz 10 mm large surface cuvette, 7ml, Sintered 83 (>83% transmittance). Two-Way Light. 190–2500 nm. PTFE Cap. SKU: C202CR6. In Stock.

In Stock

SKU: C202CR6 Categories: Cuvettes, Products, Quartz Large Window Cuvettes Brand: MachinedQuartz

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

The C202CR6 is a precision quartz large surface cuvette featuring a 10mm optical path length and 7ml internal volume. The Sintered 83 fabrication delivers superior optical purity with excellent deep-UV transmission below 200nm. With Two-Way Light configuration allows measurement from both polished faces, this cuvette features a PTFE cap for sample protection and evaporation control and delivers reliable performance for demanding spectroscopic applications.

Technical Specifications — Large Surface Cuvette

Specifications
Material	Quartz (Fused Silica)	SKU	C202CR6
Type	Large Surface Cuvette	Path Length	10 mm
Internal Volume	7ml	Fabrication	Sintered 83
Transmittance	>83%	Wavelength	190–2500 nm
Optical Windows	2 (Two-Way Light)	Exterior Dimensions	24 × 14 × 55 mm
Interior Dimensions	20 × 10 × 50 mm	Cap Type	PTFE Cap
Package	1pc/ea

Applications

◆ UV-Vis Spectrophotometry

◆ Large-Surface Optical Analysis

◆ Beam Profiling and Alignment

◆ Biochemical Assay Development

◆ Pharmaceutical Quality Control

◆ Deep-UV Transmission Measurement

◆ Multi-Angle Light Scattering

Why a 20mm Body Large Surface Cuvette?

The 20 mm body houses a standard 10 mm optical path, providing a large surface area for beam alignment and multi-angle measurement approaches. With 7ml capacity and interior dimensions of 20 × 10 × 50 mm, the C202CR6 is suited for experiments requiring generous sample volumes while maintaining precise 10 mm path measurements. The oversized body simplifies sample loading, reduces meniscus effects, and allows wider beam geometries for improved signal collection.

Why Sintered 83?

The Sintered 83 process fuses high-purity quartz granules at elevated temperatures, producing a cell with excellent deep-UV transmittance down to 190 nm and minimal fluorescence background. This makes the C202CR6 suitable for demanding UV applications including nucleic acid quantification and protein analysis at 260/280 nm.

Usage Tips

Handling: Always hold the cuvette by its frosted or unpolished surfaces to prevent fingerprints on optical windows. Clean with spectroscopic-grade solvents and lint-free wipes. For best results, rinse with your sample solution before final filling to minimize dilution effects. Store upright in a padded container to protect the polished optical faces.

Custom Orders

Need a modified path length, special coating, or custom dimensions? We manufacture quartz cuvettes to your exact specifications. Contact our team to discuss your requirements.

Specifications are nominal values measured under standard conditions. Actual performance may vary slightly. All quartz cuvettes are manufactured from high-purity synthetic quartz glass. Images are representative; actual product appearance may differ.
