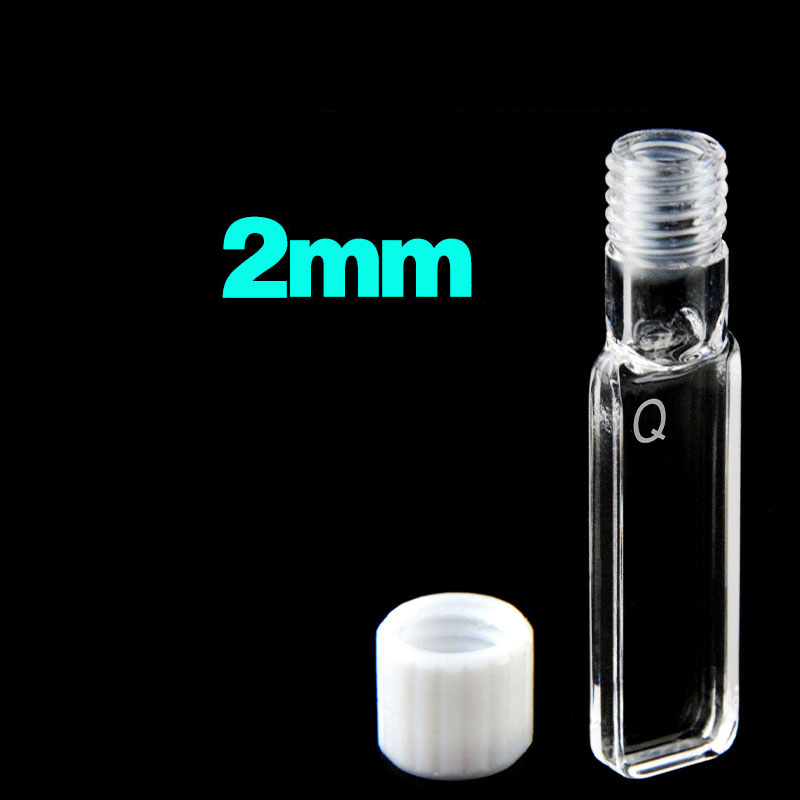

(C024TS10) Quartz Screw-Top Cuvette, 2 mm Path, 700 µL

Weight	30 g
Dimensions	1.25 × 1.25 × 5.5 mm

SKU: C024TS10

Original price was: $309.00.Current price is: $279.00.

In Stock

C024TS10 is a JGS1 quartz screw-top cuvette with a 2 mm optical path, Four-Way Light access and 700 µL nominal capacity. Its slim 12.5 × 4.5 mm base and tall rectangular body help when you need a narrow cell format and side optical access for a compatible measurement geometry. Sold as 1 cuvette per sale.

In Stock

SKU: C024TS10 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C024TS10 is a JGS1 quartz screw-top cuvette with a 2 mm optical path, Four-Way Light access and 700 µL nominal capacity. The narrow 12.5 × 4.5 mm base and 55 mm uncapped overall height make it a tall, slim rectangular cell for methods that call for a short path in a compact sample cross-section. Its threaded top format gives direct access to the sample chamber, while side optical access can be useful in measurement setups that are arranged for this geometry.

Path Length: 2 mm
Sample Volume (Nominal): 700 µL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	2 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 4.5 × 55 mm
Overall Height without Closure	55 mm
Base Dimensions	12.5 × 4.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Fabrication Method	Molded 83

Choose this option

Choose C024TS10 when your method calls for a 2 mm quartz cell and you want a screw-top format with optical access from multiple sides. The 700 µL nominal capacity is useful for planning sample preparation, while the slim base helps you check holder space and seating before you order. Because minimum working volume and Z Height are not specified, this option is best selected when your holder geometry and beam position can be checked directly.

What makes this option different

2 mm optical path for methods that require a shorter absorption path than a standard longer-path cell.
Four-Way Light configuration gives optical access from more than one side for compatible beam and detection layouts.
Threaded top format provides direct sample access through the screw-top opening style shown for this SKU.
700 µL nominal capacity helps you size your sample preparation without implying a minimum working fill.
12.5 × 4.5 mm base supports holder-space checks for a narrow rectangular cell body.
Optical-contact integrated construction is the recorded construction style for this cuvette, relevant when you are choosing between fabrication styles for sample handling and cleaning routines.
JGS1 quartz with a listed 200–2500 nm wavelength range for UV/Vis use within the stated source range.

Using this cell

Introduce the sample through the screw-top access and make sure the liquid covers the part of the sample region crossed by your instrument beam. As with other short-path cells, remove bubbles from the optical path and keep the cell orientation consistent if your method depends on repeatable positioning.

Handle the cuvette by the non-optical surfaces where possible. Keep the transmitting faces free from fingerprints, droplets and dried residue so the beam passes through a clean sample region.

First-use check

Inspect the optical faces and edges for chips, scratches or transport residue.
Place the empty cuvette in your holder to confirm seating and clearance.
Run a blank with your measurement solvent and verify that the filled sample region covers the beam path used by your instrument.

Fit and optical alignment

The base is 12.5 × 4.5 mm, and the recorded 55 mm dimension is the uncapped overall height from the base to the top of the cuvette before any closure is considered. Use those dimensions to check holder slot width and vertical clearance, but do not treat them as proof of universal instrument fit.

Four-Way Light access means this cell can be approached optically from more than one side, but the exact beam-center height is not stated here. If your instrument depends on a defined Z Height or a fixed beam position, check that alignment requirement before purchase.

Solvents and cleaning

This cuvette is classified here under Molded 83, with the recorded source construction described as optical-contact integrated construction. In practical use, choose your sample and cleaning routine for the complete assembled cell rather than from the quartz body alone, because the exact chemical limits and supplied closure details are not established for this listing.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning. Rinse with a suitable solvent for your method, then clean the optical faces gently with non-abrasive optical tissue.

Included with this option

Price is for 1 cuvette. Other package contents are not specified for this listing.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For a different design, send a drawing or describe the change you need. Custom JGS1 quartz enquiries are assessed separately from this listed specification; feasibility, quantity, price and production time are confirmed in the project quotation.
