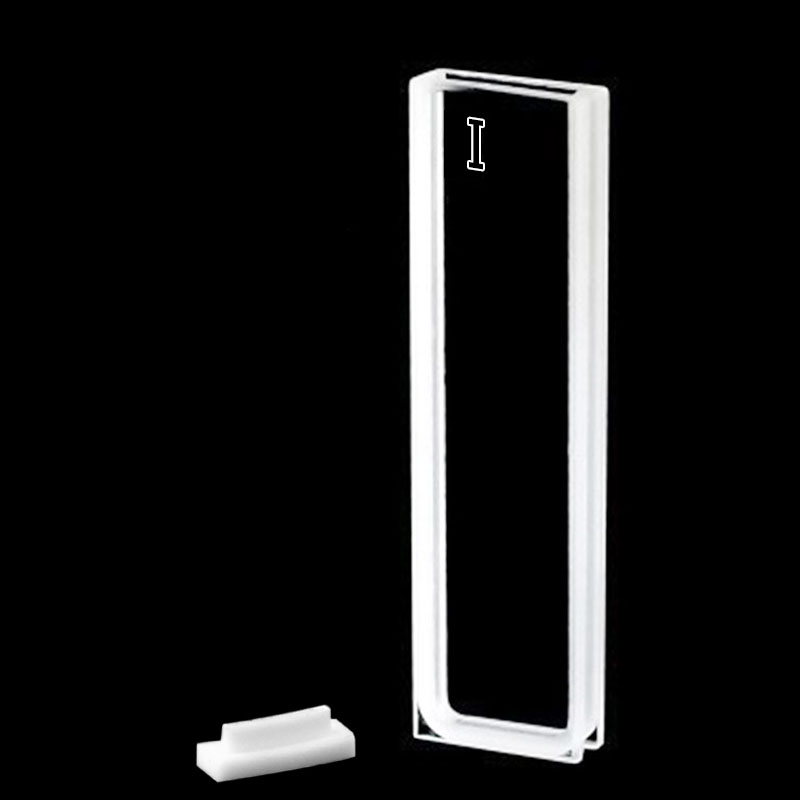

(C024CS) Quartz Rectangular Sample Cell, 2 mm Path, 700 µL

Weight	30 g

SKU: C024CS

Original price was: $51.00.Current price is: $46.00.

In Stock

C024CS is a JGS3 quartz rectangular sample cell with a 2 mm optical path, Two-Way Light layout and 700 µL nominal capacity for infrared spectroscopy and visible absorbance work. A closure is included with this option.

In Stock

SKU: C024CS Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C024CS is a JGS3 quartz rectangular sample cell with a 2 mm optical path and 700 µL nominal capacity. Its straight-through Two-Way Light layout and compact body make it a practical choice when you need a short-path rectangular cell for infrared spectroscopy or visible absorbance measurements, while still keeping covered sample handling available through the included closure.

Path Length: 2 mm
Sample Volume (Nominal): 700 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	Infrared Spectroscopy; Visible Absorbance Spectroscopy
Path Length	2 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 4.5 × 45 mm
Cell Body Dimensions	12.5 × 4.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C024CS when your method calls for a 2 mm path in a rectangular quartz cell and your sample conditions stay within the stated neutral-use limitation. The 700 µL nominal capacity suits routine small-volume preparation, and the JGS3 quartz body is specified for use across the stated 260–3500 nm range for visible and infrared work.

What makes this option different

2 mm optical path: match the measurement method to this transmission distance and align the beam through the sample region.
Two-Way Light: align the opposing optical faces with the transmission beam and use the same orientation for blank and sample readings.
700 µL nominal capacity: plan the working fill and beam footprint together so liquid covers the illuminated region; nominal capacity is not a minimum working fill.
Accompanying closure: cover the opening after preparation and allow room to remove it; no pressure or leak-tight rating is specified.

Using this cell

Fill the cell so the liquid fully covers the beam area used by your instrument, and keep the optical faces free from bubbles, droplets and dried residue. Use the same orientation for blank and sample measurements, and handle the cell by non-optical surfaces where possible.

The 700 µL figure is the nominal cell capacity, not a minimum working volume. If your method runs at low fill levels, confirm beam coverage in your own holder before routine use.

First-use check

Inspect the optical faces and opening area for dust, residue or transport contamination.
Confirm that the cell seats correctly in your holder.
Run a blank with the intended orientation before routine sample work.
Check that the filled liquid level covers the beam without trapped bubbles.

Fit and optical alignment

The stated body dimensions are 12.5 × 4.5 × 45 mm, and they apply to the body only. Check holder seating, side clearance and top clearance in your setup before ordering, especially if the closure remains in place during handling or measurement.

Z Height is not established for this exact option, so this page does not claim compatibility with holders or instruments that require a defined beam-center height.

Solvents and cleaning

This ordinary option is restricted to neutral samples. If your sample, rinse or cleaning routine involves non-neutral chemicals, check the full assembly suitability before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the exterior optical faces gently with non-abrasive optical tissue. For general construction guidance, see Compare fabrication options.

Included with this option

This configuration includes an accompanying closure. Confirm the cell quantity and any separately specified accessories covered by your order.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch, together with your holder or instrument details, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. You can discuss your requirements and reference C024CS.
