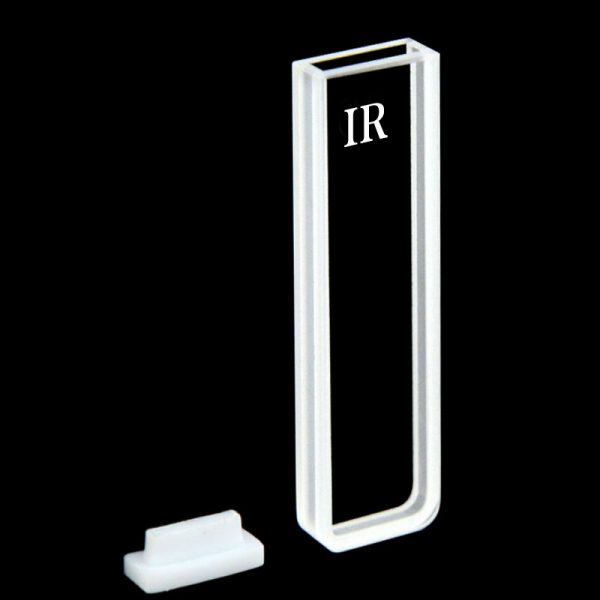

(C024CR2) Quartz Rectangular Sample Cell, 2 mm Path, 700 µL

Weight	30 g

SKU: C024CR2

Original price was: $75.00.Current price is: $68.00.

In Stock

C024CR2 is a JGS3 quartz rectangular sample cell for infrared spectroscopy and visible absorbance measurements. It combines a 2 mm optical path, Two-Way Light transmission, a 700 µL nominal capacity and an included closure in a slim 12.5 × 4.5 × 45 mm body.

In Stock

SKU: C024CR2 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C024CR2 is a JGS3 quartz rectangular sample cell for infrared spectroscopy and visible absorbance work. It combines a 2 mm optical path with Two-Way Light transmission and a 700 µL nominal capacity in a slim 12.5 × 4.5 × 45 mm rectangular body. This makes it a practical choice when your method is built around a short rectangular path and a relatively compact sample chamber.

Path Length: 2 mm
Sample Volume (Nominal): 700 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	Infrared Spectroscopy; Visible Absorbance Spectroscopy
Path Length	2 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 4.5 × 45 mm
Cell Body Dimensions	12.5 × 4.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C024CR2 when your method requires a 2 mm transmission path in a rectangular quartz cell rather than a longer-path body style. The JGS3 quartz material is specified for use from 260 to 3500 nm, so it suits infrared measurements while also covering visible absorbance work. The 700 µL nominal capacity provides a smaller nominal fill volume than larger rectangular cells, while keeping the standard top-loading handling style familiar for routine use.

What makes this option different

2 mm optical path: match the measurement method to this transmission distance and align the beam through the sample region.
Two-Way Light: align the opposing optical faces with the transmission beam and use the same orientation for blank and sample readings.
700 µL nominal capacity: plan the working fill and beam footprint together so liquid covers the illuminated region; nominal capacity is not a minimum working fill.
Accompanying closure: cover the opening after preparation and allow room to remove it; no pressure or leak-tight rating is specified.

Using this cell

Use the 2 mm path length in your method setup and fill enough sample to cover the beam area before measurement. Check for visible bubbles, and keep the same cell orientation between blank and sample so you compare like with like.

Handle the cell by the non-optical surfaces as much as possible. Keeping the transmission faces clean helps avoid fingerprints, droplets and dried residue in the optical path.

First-use check

Inspect the optical faces under good light when the cell arrives. Rinse with a suitable liquid for your method, run a blank, and confirm that the filled sample region covers the beam path cleanly without visible residue or bubbles.

Fit and optical alignment

The stated 12.5 × 4.5 × 45 mm dimensions refer to the body only. If your holder or instrument compartment is closely fitted, check seating width, depth and top clearance before ordering, because the stated size does not define the closure height above the body.

Z Height is not specified for this item. If your instrument depends on a defined beam-center height, that point should be checked before purchase.

Solvents and cleaning

This quartz cell is intended for infrared and visible transmission use, but the chemical limits for this exact SKU are not stated here. If your sample matrix or cleaning procedure involves aggressive chemicals, heated cleaning or long contact time, review suitability before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. For general background on MQ cuvette construction options, see fabrication method of cuvettes.

Included with this option

This configuration includes an accompanying closure. Confirm the cell quantity and any separately specified accessories covered by your order.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size, sample volume, optical window arrangement, Z Height or closure style, we can review a custom JGS1 quartz version. Please send your drawing or labelled sketch, holder or instrument details, critical dimensions and tolerances, sample conditions and target quantity through our contact page, and quote part number C024CR2.
