(C305CA) Quartz Fluorescence Cuvette, 30 mm / 10 mm (dual path) Path, 10.5 mL

Weight	100 g

SKU: C305CA

Original price was: $156.00.Current price is: $141.00.

In Stock

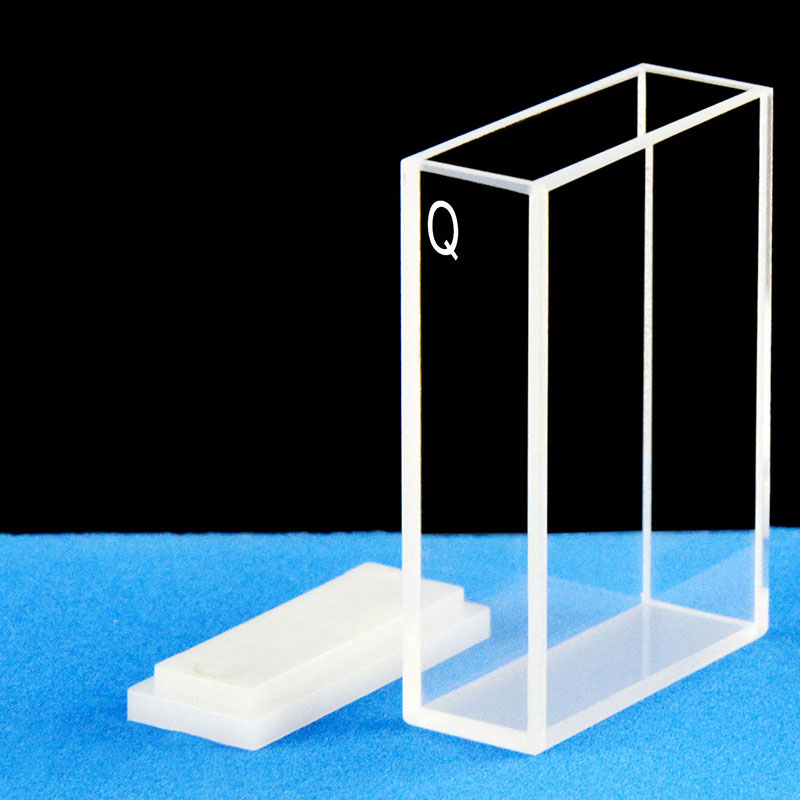

C305CA is a JGS1 quartz fluorescence cuvette with a 30 mm primary path, a 10 mm secondary path and 10.5 mL nominal capacity in one rectangular cell body. The covered opening uses a PTFE lid, which suits methods that want direct top access for filling and a lid in place during routine handling or measurement. Sold as 1 cuvette per price unit.

In Stock

SKU: C305CA Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C305CA is a JGS1 quartz fluorescence cuvette for methods that use a 30 mm optical path in a rectangular cell body. It also provides a 10 mm secondary path, giving you a second measurement orientation in the same cuvette, which is useful when your fluorescence setup or handling routine needs the sample presented in a different direction. The 10.5 mL nominal capacity and PTFE lid make it a practical choice when you want top filling, covered handling and a longer-path quartz cell in one format.

Path Length: 30 mm / 10 mm (dual path)
Sample Volume (Nominal): 10.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	30 mm / 10 mm (dual path)
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	10.5 mL
External Dimensions	12.5 × 32.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 32.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C305CA when your method is built around a 30 mm path but you also want a defined 10 mm orientation in the same cell body. That combination helps when the sample needs to be filled from the top, checked visually before measurement and then kept covered with the PTFE lid during normal bench use. The fused integrated construction term used by the supplier identifies this exact build style for the cell body; for selection, treat it as this product’s stated construction rather than as a claim about universal solvent use, certified tolerance or special instrument compatibility.

What makes this option different

30 mm primary path for fluorescence methods that require a longer optical distance than a standard 10 mm measurement direction.
10 mm secondary path in the same cell body, so you can orient the cuvette to suit the measurement direction used by your setup.
PTFE lid over a top opening for direct filling and sample access before covered handling or measurement.
10.5 mL nominal capacity for methods that use a larger sample volume in a rectangular fluorescence cuvette format.
Fused integrated construction as the supplier’s stated construction term for this exact cuvette body.
12.5 × 32.5 × 45 mm uncapped body for checking holder fit and top clearance separately from the lid.

Using this cell

Fill from the top opening and make sure the liquid covers the optical region used by your method. The PTFE lid acts as a cover rather than a threaded connection or removable plate assembly, so it is well suited to routine bench handling where you want direct access first and a covered sample afterward.

Use the same orientation for blank, standards and samples throughout the method. In practice, the 30 mm direction and the 10 mm direction are not interchangeable labels: they represent two different optical paths in the same rectangular body, so consistent positioning matters when your fluorescence setup is arranged around one specific viewing direction.

First-use check

Inspect the cuvette and lid on arrival, rinse according to your laboratory procedure, and place the empty cell in the holder before preparing a full sample. Then confirm that the beam passes through the intended faces in the orientation your method uses.

Fit and optical alignment

The listed 12.5 × 32.5 × 45 mm dimensions apply to the uncapped cell body. Check holder width, depth and top clearance separately if the lid remains in place during measurement, because the uncapped outline does not define installed clearance with the lid on.

Z Height is not specified for this item. If your instrument requires a defined beam-center height, confirm that point before ordering rather than assuming alignment from the external body shape.

Solvents and cleaning

The cell body is quartz and the supplied lid is PTFE. For background on cuvette construction approaches, see Compare fabrication methods.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Specific chemical limits for this exact configuration are not established here, so if your sample or cleaning routine involves demanding solvent, concentration, temperature or contact-time conditions, check suitability for the complete assembly before use.

Included with this option

One C305CA quartz fluorescence cuvette with PTFE lid.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch together with your holder or instrument details, critical dimensions, sample conditions and target quantity. Discuss your requirements and quote part number C305CA.
