(C305CA1) Quartz Fluorescence Cuvette, 30 mm / 10 mm (dual path) Path, 10.5 mL, Pack of 2

Weight	100 g

SKU: C305CA1

Original price was: $312.00.Current price is: $281.00.

In Stock

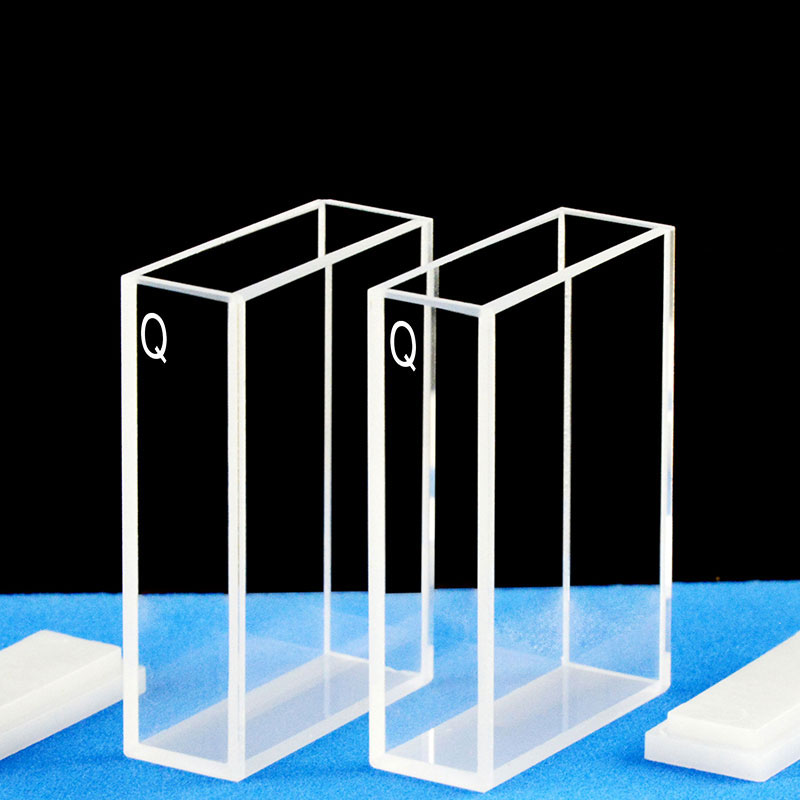

C305CA1 is a JGS1 quartz fluorescence cuvette with a 30 mm primary path, a 10 mm secondary path and 10.5 mL nominal capacity. Its top-access body is supplied with PTFE lids for covered handling after filling. Sold as a pack of 2 cuvettes.

In Stock

SKU: C305CA1 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C305CA1 is a JGS1 quartz fluorescence cuvette built for methods that use a 30 mm optical path in a rectangular cell. This option also provides a 10 mm secondary path in the alternate orientation, so one cell geometry can support two beam directions within the same body. With a 10.5 mL nominal capacity and supplied PTFE lids, it suits top filling followed by covered handling, and it is sold as a pack of 2 cuvettes.

Path Length: 30 mm / 10 mm (dual path)
Sample Volume (Nominal): 10.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	30 mm / 10 mm (dual path)
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	10.5 mL
External Dimensions	12.5 × 32.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 32.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C305CA1 when your method needs the longer 30 mm fluorescence path but you also want the practical option of using the same cell in its 10 mm orientation. That layout can be useful when your procedure, holder setup or check measurements call for a different beam direction without changing to a different cell format. The 10.5 mL nominal capacity gives a larger sample region than a very small rectangular cell, and the included PTFE lids let you cover the top opening after loading.

What makes this option different

30 mm primary path for fluorescence work that is arranged around a longer rectangular optical route.
10 mm secondary path so the same cuvette body can be used in a second orientation when your method calls for that geometry.
10.5 mL nominal capacity for methods that need a larger filled sample region in this cell format.
Top-access design with PTFE lids for direct filling from above, then covered handling once the sample is in place.
Fused integrated construction as the supplier’s stated construction term for this exact cuvette.
Uncapped body size of 12.5 × 32.5 × 45 mm for checking holder space and top clearance before ordering.
Pack of 2 cuvettes for this priced sales unit.

Using this cell

Load the sample from the top opening, then place the PTFE lid when your procedure benefits from covered handling during transfer or measurement. Keep the cuvette orientation consistent, because the body offers both a 30 mm primary path and a 10 mm secondary path depending on how the cell is placed in the beam.

The nominal capacity describes the cell’s stated fill volume, not a minimum working volume. Before measurement, make sure the liquid level fully covers the optical region your method uses, and check for bubbles or droplets on the optical faces.

First-use check

Inspect both cuvettes and the supplied lids on arrival, then rinse according to your laboratory procedure before first measurement. Test the cell in your holder with the intended orientation and confirm that the beam passes through the faces used for your 30 mm or 10 mm setup.

Fit and optical alignment

The listed 12.5 × 32.5 × 45 mm dimensions apply to the uncapped cell body. If your holder, compartment lid or sampling arrangement has limited overhead space, allow separately for the added clearance needed when the PTFE lid is in place.

Z Height is not specified for this item. If your instrument depends on a defined beam-center height, confirm that requirement before ordering rather than relying on the rectangular outline alone.

Solvents and cleaning

The cell body is quartz and the supplied lids are PTFE. The supplier describes this cuvette as having fused integrated construction; for general construction background across MQ cuvette types, see Compare fabrication methods.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and clean the optical faces gently with non-abrasive optical tissue. Suitability for your actual sample chemistry, concentration, temperature and contact time should be checked for the complete wetted setup.

Included with this option

Two C305CA1 quartz fluorescence cuvettes with PTFE lids.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, construction approach and tolerances. Send a dimensioned drawing or labelled sketch, plus your holder or instrument details, critical dimensions, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C305CA1.
