(C304CR9) Quartz Rectangular Sample Cell, 30 mm Path

Weight	100 g

SKU: C304CR9

Original price was: $246.00.Current price is: $222.00.

In Stock

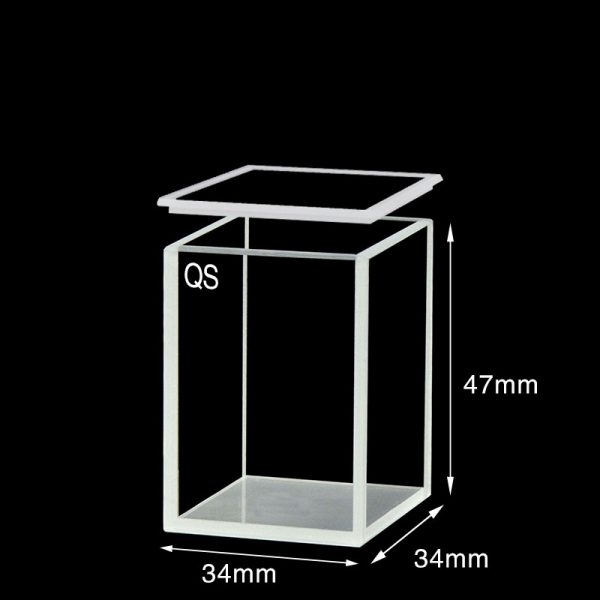

C304CR9 is a JGS1 quartz rectangular sample cell with a 30 mm optical path, Four-Way Light geometry and an included closure for UV/Vis work. Its 30 × 30 × 45 mm internal chamber and 47 mm body height provide a taller covered square format than the shorter-body version. Supplied as 1 cell.

In Stock

SKU: C304CR9 Categories: Cuvettes, Products, Quartz High-Capacity Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C304CR9 is a JGS1 quartz rectangular sample cell for UV/Vis spectroscopy with a 30 mm optical path, Four-Way Light access and a supplied closure. This version combines a covered square chamber with greater internal height, giving you a 30 × 30 × 45 mm sample space inside a 34 × 34 × 47 mm body. This listing is for 1 cell.

Path Length: 30 mm
Cell Type: Rectangular Sample Cell
Closure Type: Flat Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	30 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
External Dimensions	34 × 34 × 47 mm
Cell Body Dimensions	34 × 34 × 47 mm
External Dimensions Scope	Body Only
Body Height	47 mm
Internal Dimensions	30 × 30 × 45 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Flat Lid
Closure Included	Yes
Wall Thickness	2 mm

Choose this option

Choose C304CR9 when you need a 30 mm path length in a covered rectangular quartz cell and want more chamber height than the shorter covered version. The wider square opening and taller chamber can be easier to load and inspect from above, while the four-side optical layout keeps access available on all side faces.

What makes this option different

Closure included for a covered sample-chamber configuration.
30 mm optical path for methods specified for this path length.
Four-Way Light layout with optical access through all four side faces.
Taller covered format with a 30 × 30 × 45 mm internal chamber in a 34 × 34 × 47 mm body.

Using this cell

Fill the chamber so the liquid covers the beam region used by your instrument, then place the supplied closure as required by your procedure. Before measurement, remove visible bubbles and keep the optical faces free of fingerprints and residue.

The square chamber gives broad access for loading and visual inspection from above. The included closure covers the top during use, but no pressure limit or sealing performance is established here, so choose it as a covered cell rather than a pressure-rated assembly.

First-use check

Inspect the optical faces, top opening and closure seating area for chips, dust or residue.
Rinse the chamber with a suitable liquid for your method before first use.
Check that the cell seats stably in the holder and that the closure fits properly.
Run a blank in the same orientation planned for the sample.

Fit and optical alignment

The stated 34 × 34 × 47 mm dimensions apply to the cell body only. Use them to check holder seating, vertical clearance and side access, and allow separately for the covered arrangement when installed.

Z Height is not established for this SKU. If your holder or method depends on a defined beam-center height, verify that point directly rather than inferring it from the body height.

Solvents and cleaning

This quartz cell is listed for UV/Vis use across 200–2500 nm. For general fabrication background and care guidance, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

The exact chemical limits for this assembled SKU are not established here, so review compatibility if your sample or cleaning routine involves aggressive chemicals, heated liquids or prolonged contact. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning on the optical faces.

Included with this option

Supplied as 1 rectangular sample cell. A closure is included. The current source does not establish further package-content detail.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes to dimensions, optical path length, chamber geometry, closures or fit requirements. Send a dimensioned drawing or labelled sketch together with holder details, beam-height requirements, sample conditions and target quantity via https://machinedquartz.com/contact/, and quote C304CR9.
