Quartz 35mm Quartz Two-Way Cuvette, 5.3ml, Sintered 83, Two-way Light, No Cap, 1pc/ea, C352CR

Weight	100 g

SKU: C352CR

C352CR Quartz 35mm Two-Way Light Quartz Two-Way Cuvette 5.3ml Sintered 83

~~USD$90.00~~ USD$81.00

In Stock

Quartz 35mm quartz two-way cuvette, 5.3ml, Sintered 83 (>83% transmittance). Two-Way Light. Open Top (No Cap). 190–2500 nm. SKU: C352CR.

In Stock

SKU: C352CR Categories: Cuvettes, Products, Quartz Custom Cuvettes

Description

The C352CR is a quartz quartz two-way cuvette with 35mm path length and two-way light optical configuration — two opposite vertical faces are polished to optical grade, forming the standard transmission geometry for UV-Vis absorbance measurements. With a 5.3ml internal volume (34.5 × 5 × 38.5 mm chamber), the cell is compatible with most commercial spectrophotometers. Fabricated using Sintered 83 (>83% transmittance) — high-temperature sintered to fuse quartz panels without adhesive. Features a 35mm wide-path two-way cuvette with 5.3ml capacity, providing extended optical path for enhanced absorption measurements of dilute solutions.

Technical Specifications — Quartz Two-Way Cuvette
Material	Quartz	SKU	C352CR
Path Length	35mm	Internal Volume	5.3ml
Optical Windows	2 (Two-Way Light)	Fabrication	Sintered 83
Transmittance	>83%	Wavelength	190–2500 nm

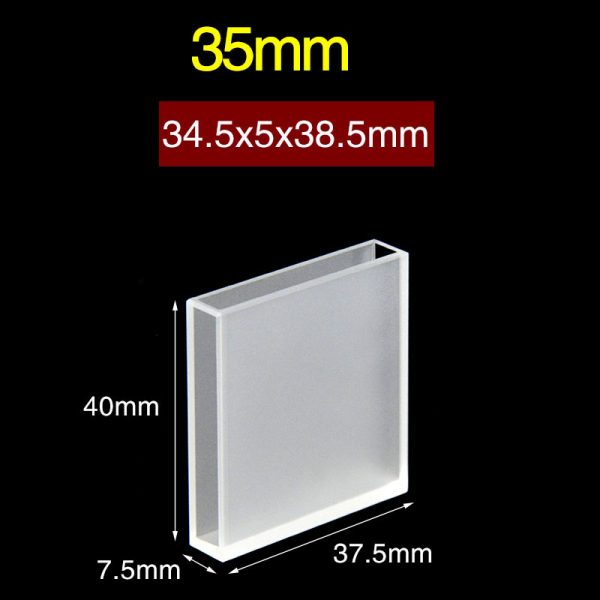

Exterior Dimensions	37.5 × 7.5 × 40 mm	Interior Dimensions	34.5 × 5 × 38.5 mm
Closure	Open Top (No Cap)	Package	1pc/ea

Spectroscopy Applications

◆ UV-Vis Absorbance Spectroscopy — quantitative concentration, kinetics, Beer–Lambert studies

◆ DNA / RNA Quantification — nucleic-acid purity checks at 260/280 nm

◆ Protein Assays — Bradford, BCA, Lowry, and direct A280 measurements

◆ Enzyme Kinetics — real-time substrate conversion and inhibition studies

◆ Water Quality & Environmental — COD, nitrate, phosphate, heavy-metal colorimetric tests

◆ Pharmaceutical QC — dissolution testing, drug concentration, stability monitoring

◆ Chemical Reaction Monitoring — reaction progress tracking via absorbance changes

◆ Teaching & Student Labs — durable quartz cells for undergraduate spectroscopy courses

Why Two-Way Light?

Two-way light cuvettes have two opposite vertical faces polished to optical grade, forming the standard transmission geometry for UV-Vis absorbance measurements. The remaining two faces are frosted to minimize stray-light interference, providing clean baseline performance for quantitative spectrophotometry.

Why Open Top?

This cuvette features an open-top design without a cap or cover, providing unrestricted access to the sample chamber for easy filling, mixing, and cleaning. The open design is ideal for workflows requiring frequent sample changes, titration experiments, or when using dip probes and fiber-optic accessories that need direct access to the liquid surface.

Why Sintered 83?

Sintered 83 uses high-temperature sintering to fuse quartz panels without adhesive, delivering >83% UV transmittance from 200–2500 nm. The sintered joints are chemically inert and compatible with strong acids, bases, and most organic solvents (excluding HF and aggressive organics such as toluene and acetone). This fabrication is ideal for analytical workflows involving harsh chemical matrices where standard glued cells would degrade.

Usage Tips

Rinse with a compatible solvent (e.g., ethanol or the measurement solvent) before first use to remove any residual particles.
Do not use abrasive materials or brushes on the polished optical faces — wipe gently with lens tissue.
Compatible with strong acids, bases, and most organic solvents (excluding HF and aggressive organics such as toluene and acetone).
Store in the original protective case to prevent scratches on the optical windows.
For baseline correction, fill with your reference solvent, and run a blank before sample measurements.

Custom Orders
Need a non-standard path length, volume, window configuration, or closure type? We manufacture quartz cuvettes to your exact specifications. Request a custom quote.

Disclaimer: Specifications are nominal values measured under standard laboratory conditions. Actual transmittance may vary slightly with wavelength and sample conditions. Images are representative; minor cosmetic variations between production batches are normal and do not affect optical performance.
