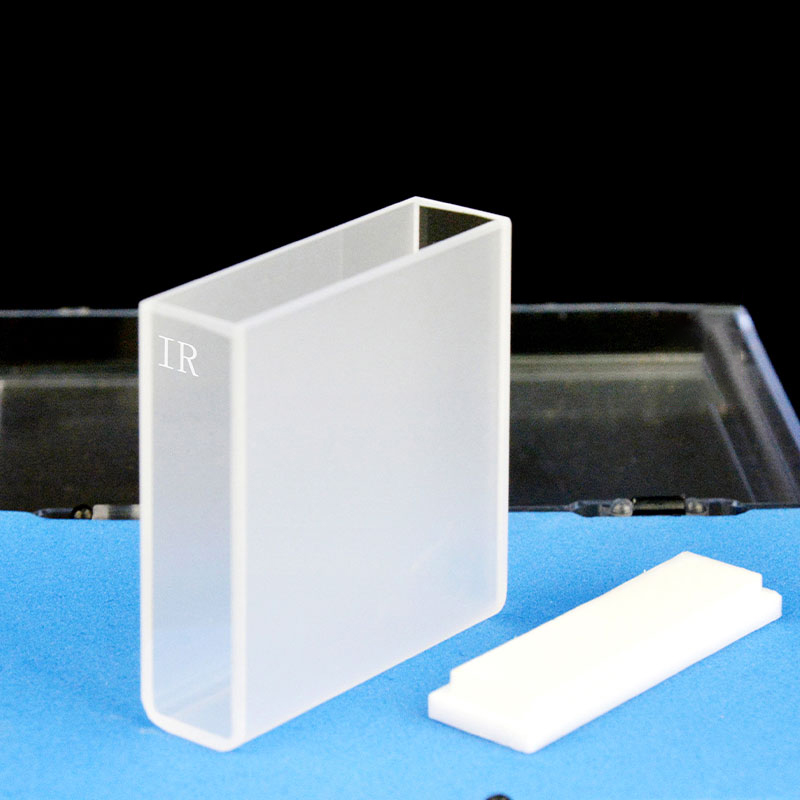

(C402CR6) Quartz Rectangular Sample Cell, 40 mm Path, 14 mL

Weight	100 g

SKU: C402CR6

Original price was: $105.00.Current price is: $95.00.

In Stock

JGS3 quartz rectangular sample cell with a 40 mm optical path for infrared spectroscopy and visible absorbance work. Its 14 mL nominal capacity, Two-Way Light layout and included closure suit filled-cell measurements that need a longer straight path in a compact rectangular body. Supplied as 1 cell.

In Stock

SKU: C402CR6 Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C402CR6 is a JGS3 quartz rectangular sample cell with a 40 mm optical path for infrared spectroscopy and visible absorbance measurements. Its 14 mL nominal capacity and Two-Way Light layout suit methods that need a longer straight measurement path while keeping a compact rectangular body. This MQ offer is supplied as 1 cell, and a closure is included.

Path Length: 40 mm
Sample Volume (Nominal): 14 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	Infrared Spectroscopy; Visible Absorbance Spectroscopy
Pack Quantity	1 Piece
Path Length	40 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	14 mL
External Dimensions	12.5 × 42.5 × 45 mm
Cell Body Dimensions	12.5 × 42.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C402CR6 when your method is written for a 40 mm path and you want a filled rectangular sample cell rather than an open chamber or flow-style assembly. The included closure helps cover the sample during routine handling, while the body-only dimensions are useful when checking whether a long-path cell will fit your holder or instrument compartment.

What makes this option different

40 mm optical path: intended for methods that require a longer fixed transmission path.
Two-Way Light layout: measurement is taken through one opposing pair of optical faces.
Compact long-path body: the stated 12.5 × 42.5 × 45 mm dimensions apply to the body only.
Closure included: the cell is supplied with a cover, but no pressure or leak-tight rating is stated.

Using this cell

Fill the cell so the liquid fully covers the beam path, then remove visible bubbles or droplets from the optical area before measurement. Use the same orientation for blank and sample runs, and handle the cell by non-optical surfaces to keep the windows clean.

The included closure is useful for covering the filled cell during normal handling and measurement setup. Because the exact closure design and pressure rating are not established here, it should be treated as a cover rather than a pressure or transport-sealing specification.

First-use check

Inspect the optical faces for dust, residue or transport marks.
Check that the cell seats correctly in the intended holder without forcing the body.
Fill with your blank first and confirm that the beam passes cleanly through the intended faces without bubbles.
Check closure clearance in the installed position before starting routine measurements.

Fit and optical alignment

The stated 12.5 × 42.5 × 45 mm dimensions are for the cell body only and do not include the closure. Check these against your holder or compartment before ordering, especially if your instrument uses a tight clamp, fixed-height mount or limited top clearance.

Z Height is not established for this item, so do not assume beam-centre alignment from overall body geometry alone. If your instrument has a fixed beam height requirement, please confirm that fit before purchase.

Solvents and cleaning

Quartz is widely used for optical cells, but the chemical limits of this exact assembly are not established here. If your application involves aggressive chemicals, long contact times or demanding cleaning solvents, check compatibility for the complete cell assembly before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. Wipe the optical faces gently with non-abrasive optical tissue. For more background on cell construction choices, see MQ Cuvette Fabrication Glossary.

Included with this option

Price is for 1 rectangular sample cell. A closure is included. Additional package contents are not specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and fabrication or tolerance requirements. Send a dimensioned drawing or labelled sketch, together with your instrument or holder details, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and mention part number C402CR6.
