(C0.52CM) Quartz Standard Cuvette, 0.5 mm Path, 170 µL

Weight	30 g

SKU: C0.52CM

Original price was: $190.00.Current price is: $171.00.

In Stock

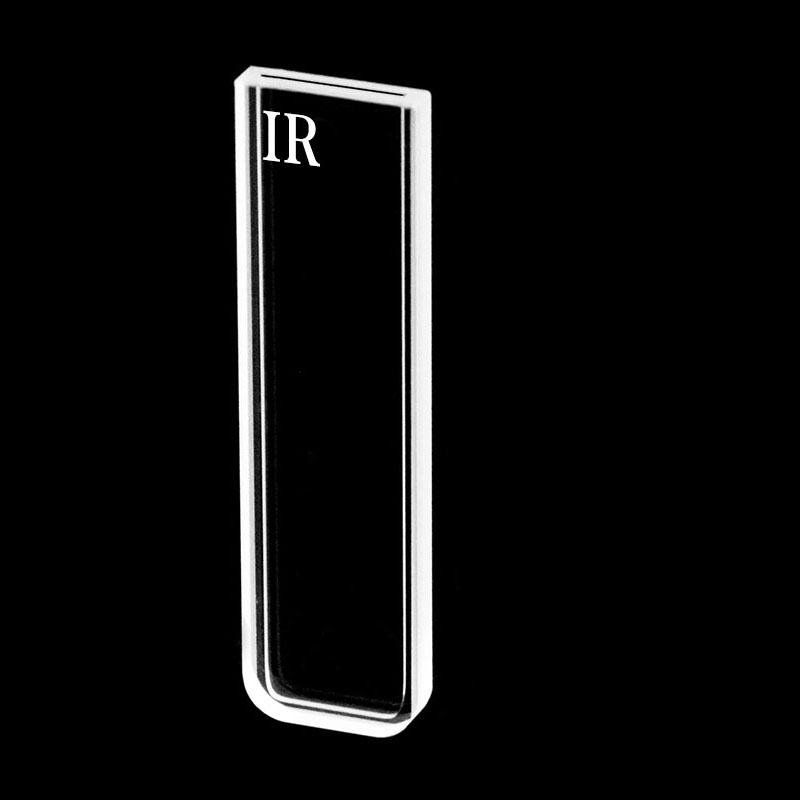

C0.52CM is a JGS3 quartz standard cuvette with a 0.5 mm optical path, Two-Way Light layout and 170 µL nominal capacity for infrared work. Its open-top body gives direct top access for filling and checking the sample, while the slim 12.5 × 3 mm footprint suits narrow holder spaces.

In Stock

SKU: C0.52CM Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C0.52CM is a JGS3 quartz standard cuvette for infrared measurements that need a short 0.5 mm optical path in a slim cell body. Its open-top design gives direct access to the sample area, and the 170 µL nominal capacity keeps this option focused on small-volume work without turning it into a deep standard-cell format.

Path Length: 0.5 mm
Sample Volume (Nominal): 170 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Infrared Spectroscopy
Pack Quantity	1 Piece
Path Length	0.5 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	170 µL
External Dimensions	12.5 × 3 × 45 mm
Uncapped Cell Dimensions	12.5 × 3 × 45 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Base Dimensions	12.5 × 3 mm
Material	Quartz
Material Grade	JGS3
Opening Configuration	Open Top

Choose this option

Choose C0.52CM when your method calls for a short path and a narrow body that can be placed in limited holder space. The open top is useful when you need to pipette directly into the cell and visually check the liquid from above before measurement, while the Two-Way Light arrangement supports a straight-through transmission setup.

What makes this option different

0.5 mm optical path for methods that need a short liquid path rather than a deeper sample layer.
Open-top access lets you fill, inspect and rinse the sample chamber directly from above.
Two-Way Light layout supports transmission measurement through the defined optical path.
170 µL nominal capacity suits small-volume loading, but it is still a nominal capacity rather than a minimum working fill.
JGS3 quartz body specified for infrared use, with a stated 260–3500 nm range.
Fused integrated construction is the supplier’s stated build style for this cell, used here as a compact fixed body rather than a demountable plate assembly.
Uncapped body dimensions of 12.5 × 3 × 45 mm help when checking holder slot width and surrounding clearance.

Using this cell

Fill the cell from the top and load enough sample to cover the beam area used by your instrument. Because the body is open rather than covered by a fitted closure, this format is best suited to bench handling where you can load, place and measure the sample directly.

The 170 µL figure is a nominal capacity, not a minimum working volume. If your method uses a low fill level, check that the liquid height in your setup fully covers the optical path during measurement.

First-use check

Inspect the optical faces for dust, smears or scratches.
Rinse with a cleaning liquid appropriate to your sample and handling routine.
After filling, confirm that the sample covers the beam area used in your instrument.
Run a blank if your measurement method requires one.

Fit and optical alignment

The recorded external dimensions apply to the uncapped cell body: 12.5 × 3 × 45 mm, with a 12.5 × 3 mm base. Use these body dimensions to check holder width, seating depth and nearby clearance before ordering.

Z Height is not established for this item. If your holder or optical bench depends on a fixed beam-center height, check that requirement against your setup instead of assuming a standard position from the overall body height.

Solvents and cleaning

This is a quartz cell for laboratory infrared use. The supplier describes it as fused integrated construction, meaning the body is a fixed assembled cell rather than a removable cover-plate style format. For general fabrication background, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Chemical limits for this exact assembly are not established here, so if your sample or cleaning routine involves aggressive solvents or long contact times, check suitability for the complete cell construction before use.

Included with this option

Supplied as 1 cuvette. A closure or other accessories are not established for this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom quartz production for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and related fit requirements. Send a dimensioned drawing or labelled sketch together with your holder details, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements.
