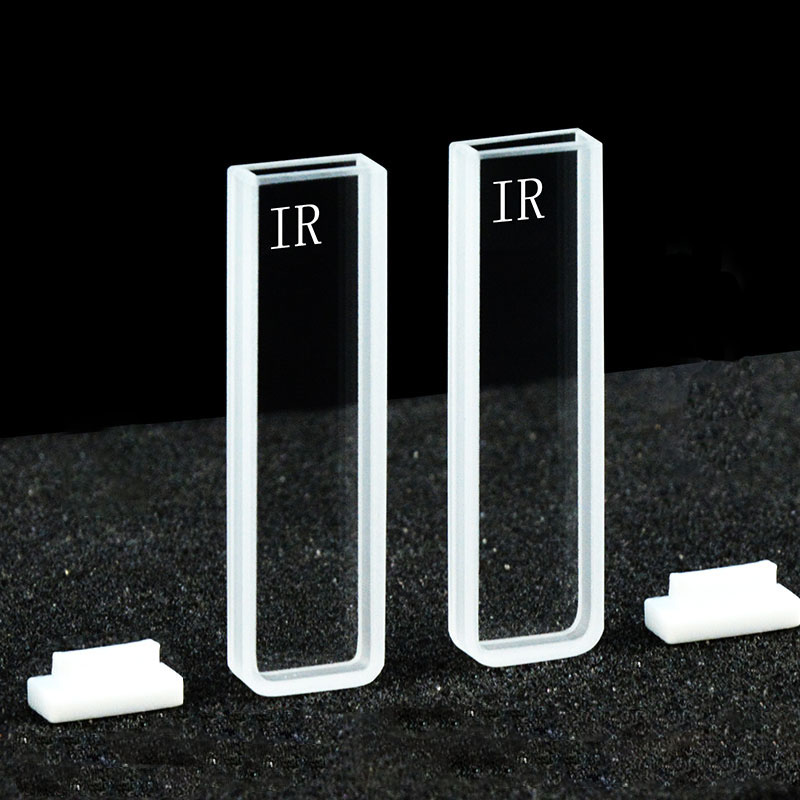

(C032CM1) Quartz Rectangular Sample Cell, 3 mm Path, 1.05 mL, Pack of 2

Weight	30 g

SKU: C032CM1

Original price was: $148.00.Current price is: $134.00.

In Stock

C032CM1 is a JGS3 quartz rectangular sample cell for infrared and visible absorbance work, with a 3 mm optical path, Two-Way Light transmission and 1.05 mL nominal capacity. Its open-top format gives direct access for filling and inspection, and lids are included for covered handling. Supplied as a pack of 2 cells.

In Stock

SKU: C032CM1 Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C032CM1 is a JGS3 quartz rectangular sample cell for infrared and visible absorbance measurements over 260–3500 nm. Its 3 mm optical path, open-top rectangular body and 1.05 mL nominal capacity make it a practical choice when you want direct pipette access to the sample region without tubing or a demountable plate assembly. This sale option supplies 2 cells, with lids included for covered handling and storage.

Path Length: 3 mm
Sample Volume (Nominal): 1.05 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	Infrared Spectroscopy; Visible Absorbance Spectroscopy
Pack Quantity	Pack of 2
Path Length	3 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 5.5 × 45 mm
Cell Body Dimensions	12.5 × 5.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C032CM1 when your method is set for a 3 mm transmission path and you want a compact rectangular cell that fills from the top. The open access suits routine liquid loading, visual checking and rinsing between runs, while the nominal 1.05 mL chamber gives a defined sample space without moving to a large standard-body cell. The JGS3 quartz format also makes this option relevant where your work includes infrared measurement rather than visible absorbance only.

What makes this option different

Open-top sample access lets you fill, empty and inspect the chamber directly from above, which is useful for pipetting and routine bench handling.
3 mm optical path suits methods built around that transmission length, rather than a longer or shorter rectangular cell path.
Two-Way Light layout supports straight-through transmission measurement across the defined optical path for the stated infrared and visible absorbance uses.
1.05 mL nominal capacity gives a compact sample region for this rectangular format while still allowing ordinary top filling.
Fused integrated construction is the supplier’s construction term for this cell, giving a fixed assembled body rather than a user-taken-apart plate style.
JGS3 quartz body is specified for infrared spectroscopy and visible absorbance use over 260–3500 nm.
Pack of 2 cells is the current MQ sale unit for the listed price.

Using this cell

Fill the cell from the open top, then check that the liquid fully covers the beam area used by your instrument before measurement. The rectangular body is intended for direct loading and straightforward rinsing, so it suits workflows where you change samples manually rather than through connected flow lines.

The included lids cover the open top during handling or storage. They should be treated as covers for this open-top cell format, not as a stated pressure-rated or leak-tight closure.

First-use check

Inspect both cells for clean optical faces and a clear sample chamber.
Rinse with a liquid suitable for your method before first use.
Fill and confirm that the sample covers the measurement region used by your setup.
Seat each cell in the holder and check that it stands consistently before running measurements.

Fit and optical alignment

The stated body dimensions are 12.5 × 5.5 × 45 mm, and they apply to the cell body only. Check your holder width, seating depth and top clearance if the compartment is closely fitted or if the lid remains in place during handling.

Two-Way Light indicates transmission across the optical path, but it does not by itself establish compatibility with any specific holder or beam-center geometry. Z Height is not stated for this SKU, so instruments that depend on a defined beam-center height should be checked separately.

Solvents and cleaning

This cell is described with the supplier term fused integrated construction. In ordinary use, that means working with the assembled body as supplied and choosing cleaning steps that suit both your sample and the finished cell, rather than treating it as a demountable part set.

A detailed chemical compatibility list is not established here for this exact SKU, so match the cell to your actual liquids and cleaning routine. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. For general construction background, see fabrication guidance.

Included with this option

One order supplies 2 rectangular sample cells. Lids are included with this SKU.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz projects involving dimensions, optical path length, sample volume, optical windows or Z Height, closures, connections and tolerance requirements. Send a dimensioned drawing or labelled sketch, your holder details, sample conditions and quantity through our contact page, and refer to part number C032CM1.
