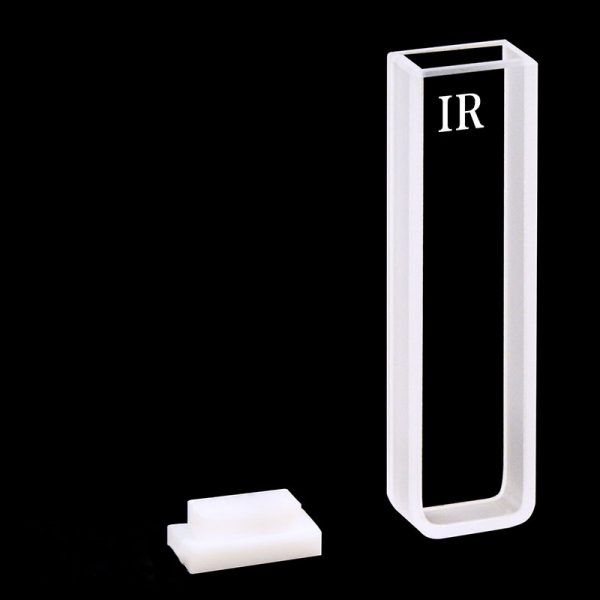

(C052CM) Quartz Rectangular Sample Cell, 5 mm Path, 1.75 mL

Weight	30 g

SKU: C052CM

Original price was: $51.00.Current price is: $46.00.

In Stock

C052CM is a JGS3 quartz rectangular sample cell for infrared spectroscopy and visible absorbance work, with a 5 mm optical path, 1.75 mL nominal capacity and straight-through Two-Way Light transmission. The open-top body gives direct sample access, and a closure is included.

Sold as 1 cuvette per price unit.

In Stock

SKU: C052CM Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C052CM is a JGS3 quartz rectangular sample cell for infrared spectroscopy and visible absorbance measurements. It combines a 5 mm optical path with 1.75 mL nominal capacity in a compact open-top body, so you can fill the sample directly while keeping a simple straight-through optical layout. A closure is included with the cell.

Path Length: 5 mm
Sample Volume (Nominal): 1.75 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	Infrared Spectroscopy; Visible Absorbance Spectroscopy
Pack Quantity	1 Piece
Path Length	5 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	12.5 × 7.5 × 45 mm
Cell Body Dimensions	12.5 × 7.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C052CM when your method needs a rectangular quartz cell with a defined 5 mm path and material suitable for infrared work as well as visible absorbance. The open-top format is convenient for manual filling, and the compact body dimensions help when you need to check fit carefully in a holder or sample compartment.

What makes this option different

JGS3 quartz body for infrared spectroscopy and visible absorbance applications.
5 mm optical path with 1.75 mL nominal capacity for methods that use this path-and-volume combination.
Two-Way Light configuration provides one straight optical path through opposing faces.
Open-top body with closure included gives direct sample access while keeping a separate top closure available.
Body dimensions of 12.5 × 7.5 × 45 mm help when planning compact holder or compartment fit.

Using this cell

Fill the cell from the open top and make sure the sample covers the beam area used by your instrument. Remove visible bubbles before measurement, and keep the same orientation for blank and sample if your method depends on consistent positioning.

The 1.75 mL figure is the nominal capacity of the cell. It should not be treated as a minimum working volume, so partial-fill methods and fixed-beam setups should be checked against the actual liquid level in use.

First-use check

Inspect the optical faces for dust, marks or shipping residue.
Check that the top opening and closure fit your intended filling and handling routine.
Run your normal blank or reference measurement before testing the sample.

Fit and optical alignment

The stated external dimensions apply to the body only and exclude the closure. Use the body dimensions for holder and compartment clearance checks, and leave additional space above the body for filling access and for the installed closure.

Z Height is not specified for this item. If your instrument or holder requires a defined beam-center height, confirm that point before ordering rather than relying on the body height alone.

Solvents and cleaning

This cell is made from JGS3 quartz and is listed for infrared and visible absorbance use across 260–3500 nm. Exact chemical limits for this assembly are not established here, so if your work involves aggressive chemicals, elevated temperature or long contact time, check the full conditions before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods, and wipe the optical faces gently with non-abrasive optical tissue. For general fabrication background, see Compare fabrication options.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and tolerance requirements. Send a dimensioned drawing or labelled sketch together with your holder or instrument details, sample chemistry, contact conditions and target quantity.

Prototype batches typically involve 2–4 cells, with feasibility, final specifications, price and production time confirmed in the project quotation. Discuss your requirements and quote part number C052CM.
