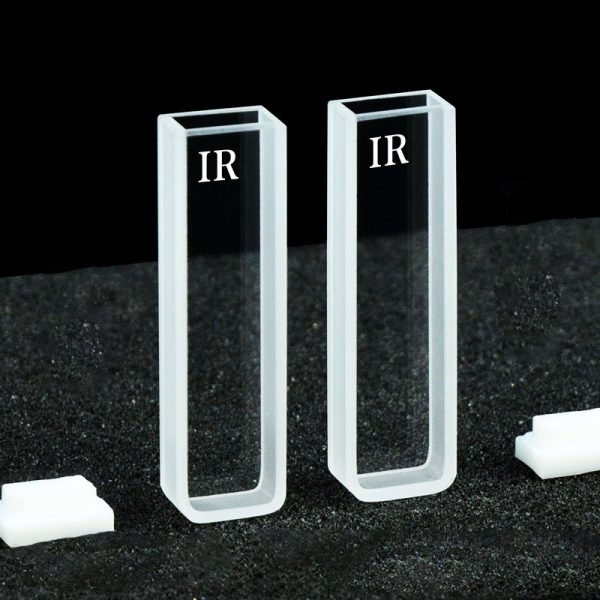

(C052CM1) Quartz Rectangular Sample Cell, 5 mm Path, 1.75 mL, Pack of 2

Weight	30 g

SKU: C052CM1

Original price was: $100.00.Current price is: $90.00.

In Stock

C052CM1 is a JGS3 quartz rectangular sample cell for infrared and visible absorbance work, with a 5 mm optical path, Two-Way Light transmission and 1.75 mL nominal capacity. Its open-top body allows direct filling, and a closure is included. Supplied as a pack of 2 cells.

In Stock

SKU: C052CM1 Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C052CM1 is a JGS3 quartz rectangular sample cell for infrared and visible absorbance measurements where you need a defined 5 mm optical path in a compact rectangular format. It combines Two-Way Light transmission, a 1.75 mL nominal capacity and an open top for direct sample access, with closure included. This sale option supplies 2 cells per listed price unit.

Path Length: 5 mm
Sample Volume (Nominal): 1.75 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	Infrared Spectroscopy; Visible Absorbance Spectroscopy
Pack Quantity	Pack of 2
Path Length	5 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	12.5 × 7.5 × 45 mm
Cell Body Dimensions	12.5 × 7.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose this cell when your method is set for a 5 mm transmission path and you want a straightforward rectangular body for direct filling and routine handling. The JGS3 quartz specification and stated 260–3500 nm application range make it suitable for infrared work while still covering visible absorbance use. The 1.75 mL nominal capacity gives you a defined chamber size without moving to a larger body format.

What makes this option different

5 mm optical path for transmission methods built around that path length.
Two-Way Light geometry with one straight optical path through opposing faces.
Open-top rectangular body for direct filling, rinsing and visual sample access from above.
JGS3 quartz specified for infrared spectroscopy and visible absorbance spectroscopy over 260–3500 nm.
Pack of 2 cells for this listed sale unit, with closure included.

Using this cell

Fill the cell from the top opening and make sure the liquid covers the beam area used by your instrument. Before measurement, remove visible bubbles, droplets and residue from the optical faces. If you use one cell for blank and the other for sample, keep orientation and handling consistent between both cells.

The 1.75 mL figure is the nominal capacity of the cell, not a minimum working fill. If your method uses a low sample level or depends on a defined beam height, check that the liquid level will intersect the beam correctly in your own setup.

First-use check

Inspect both cells for clean optical faces, dust and any visible transport residue.
Rinse with a cleaning liquid suitable for your method before first measurement.
Run a blank and confirm the beam passes through a fully covered sample region.
Check that each cell seats consistently in the holder if you plan to alternate between them.

Fit and optical alignment

The stated body dimensions are 12.5 × 7.5 × 45 mm, and they apply to the cell body only. Check holder slot size, seating depth and top clearance separately if your compartment is close-fitting or if closure clearance matters in use.

Z Height is not stated for this SKU. If your spectrometer or holder requires a specific beam-center height, confirm that separately rather than relying on the outer body dimensions alone.

Solvents and cleaning

Compare fabrication options if your sample or cleaning routine involves demanding chemicals. This SKU is described as quartz with a fused integrated construction term, but no exact chemical compatibility list is established here for specific liquids or conditions.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

2 cuvettes per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Discuss your requirements and quote part number C052CM1.
