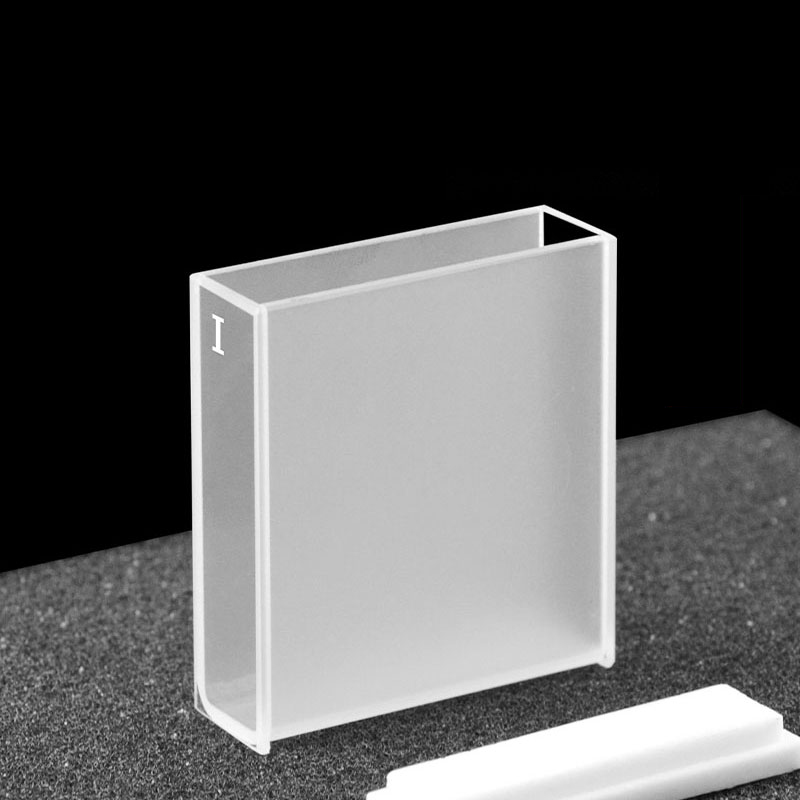

(C402CS6) Quartz Rectangular Sample Cell, 40 mm Path, 14 mL

Weight	100 g

SKU: C402CS6

Original price was: $56.00.Current price is: $51.00.

In Stock

C402CS6 is a JGS3 quartz rectangular sample cell for infrared spectroscopy and visible absorbance work with a 40 mm optical path and 14 mL nominal capacity. Its Two-Way Light layout gives one straight measurement direction through opposing faces, and a closure is included. Supplied as 1 cell.

In Stock

SKU: C402CS6 Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C402CS6 is a JGS3 quartz rectangular sample cell for infrared spectroscopy and visible absorbance methods that use a 40 mm optical path. It combines a longer straight transmission length with a 14 mL nominal capacity in a rectangular body, with a closure included for routine covered handling. This sale unit is supplied as 1 cell.

Path Length: 40 mm
Sample Volume (Nominal): 14 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	Infrared Spectroscopy; Visible Absorbance Spectroscopy
Pack Quantity	1 Piece
Path Length	40 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	14 mL
External Dimensions	12.5 × 42.5 × 45 mm
Cell Body Dimensions	12.5 × 42.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C402CS6 when your method calls for a fixed 40 mm path in a rectangular quartz cell and you only need a single cell in the order. The 14 mL nominal capacity suits filled-cell measurements over a longer path, and the Two-Way Light layout matches methods that read through one opposing pair of optical faces. This ordinary option is intended for neutral samples.

What makes this option different

40 mm optical path for methods that require a longer fixed transmission length.
14 mL nominal capacity for a larger filled sample region than very small-volume cells.
Two-Way Light layout for one defined measurement direction through opposing faces.
Single-cell sale unit with closure included for buyers who need one cell rather than a pack.

Using this cell

Fill the cell so the liquid covers the full measurement region, then remove visible bubbles from the optical path before measurement. Keep the same orientation for blank and sample runs, and hold the cell by the outer surfaces rather than the optical faces.

The supplied closure is useful for covering the sample during routine handling and measurement. It should not be treated as a pressure or leak-tight specification, because no pressure rating is stated here.

First-use check

Inspect the optical faces for dust, residue or handling marks.
Check that the closure sits properly during routine covered use.
Rinse with a cleaning liquid suitable for your method.
Run a blank first and confirm a clear beam path through the intended faces.

Fit and optical alignment

The body dimensions are 12.5 × 42.5 × 45 mm, and these dimensions apply to the body only. Use them to check holder and compartment clearance, especially where space around the cell is limited.

Z Height is not established for this item. If your instrument or holder depends on a specific beam-center height, please verify that fit before ordering. The optical layout is Two-Way Light, so selection should suit instruments that measure through one opposing pair of faces rather than multi-side optical access.

Solvents and cleaning

This ordinary option is restricted to neutral samples. The full solvent limits of the assembled cell are not established here, so if your sample, rinse liquid or cleaning routine involves aggressive chemicals, please check the conditions with us before ordering.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. Wipe the optical faces gently with non-abrasive optical tissue. For broader construction background, see MQ Cuvette Fabrication Glossary.

Included with this option

Supplied as 1 quartz rectangular sample cell with a closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch together with instrument or holder details, critical dimensions, sample chemistry and any target date. Prototype batches typically involve 2–4 cells; final feasibility, specifications, quantity, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C402CS6.
