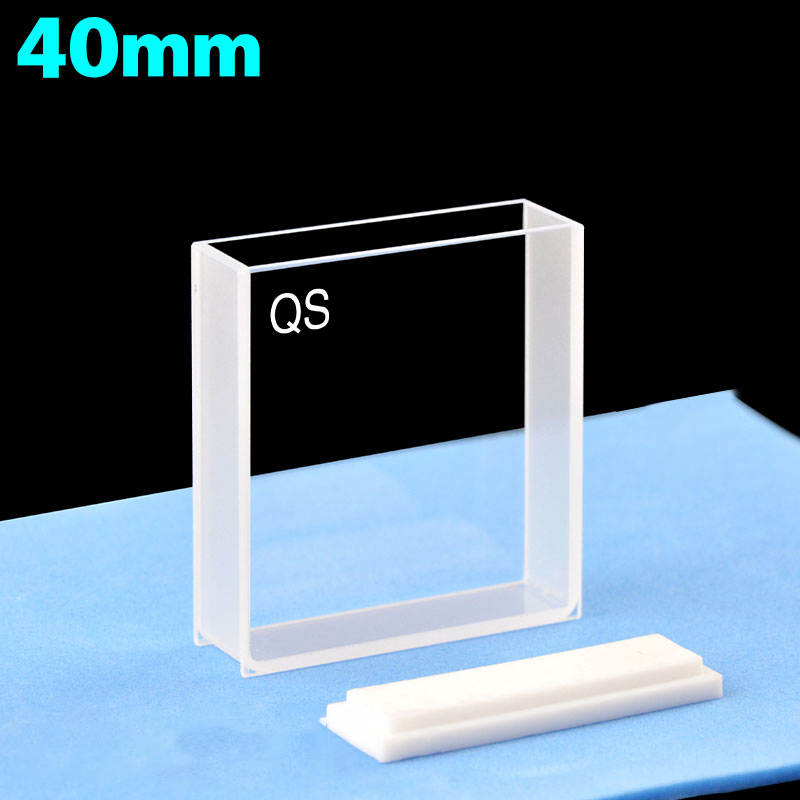

Quartz 10mm Path / 40mm Body Large Surface Cuvette, 14ml, Molded 83, Two-way Light, PTFE Cap, 1pc/ea, C402CE2

Weight	100 g

SKU: C402CE2

C402CE2 Quartz 10mm large surface cuvette – 14ml Molded 83 Two-Way Light PTFE Cap

Original price was: $147.00.Current price is: $133.00.

In Stock

Quartz 10 mm large surface cuvette, 14ml, Molded 83 (>83% transmittance). Two-Way Light. 190–2500 nm. PTFE Cap. SKU: C402CE2. In Stock.

In Stock

SKU: C402CE2 Categories: Cuvettes, Products, Quartz Large Window Cuvettes

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

Designed for Large-Surface Optical Analysis, the C402CE2 quartz large surface cuvette offers a 10mm path length with 14ml internal volume. The Molded 83 fabrication provides outstanding optical precision with minimal birefringence. features a PTFE cap for sample protection and evaporation control, making it well-suited for laboratories requiring Beam Profiling and Alignment.

Technical Specifications — Large Surface Cuvette

Specifications
Material	Quartz (Fused Silica)	SKU	C402CE2
Type	Large Surface Cuvette	Path Length	10 mm
Internal Volume	14ml	Fabrication	Molded 83
Transmittance	>83%	Wavelength	190–2500 nm
Optical Windows	2 (Two-Way Light)	Exterior Dimensions	44 × 14 × 55 mm
Interior Dimensions	40 × 10 × 50 mm	Cap Type	PTFE Cap
Package	1pc/ea

Applications

◆ UV-Vis Spectrophotometry

◆ Large-Surface Optical Analysis

◆ Beam Profiling and Alignment

◆ Environmental Monitoring

◆ Water Quality Assessment

◆ Precision Fluorescence Studies

◆ Deep-UV Transmission Measurement

◆ Multi-Angle Light Scattering

Why a 40mm Body Large Surface Cuvette?

The 40 mm body houses a standard 10 mm optical path, providing a large surface area for beam alignment and multi-angle measurement approaches. With 14ml capacity and interior dimensions of 40 × 10 × 50 mm, the C402CE2 is suited for experiments requiring generous sample volumes while maintaining precise 10 mm path measurements. The oversized body simplifies sample loading, reduces meniscus effects, and allows wider beam geometries for improved signal collection.

Why Molded 83?

The Molded 83 fabrication melts and forms high-grade quartz into precision optical cells, achieving low birefringence and high UV transparency down to 190 nm. The C402CE2 benefits from this method through consistent wall thickness, superior optical homogeneity, and >83% transmittance across the full UV-Vis-NIR range.

Usage Tips

Handling: Always hold the cuvette by its frosted or unpolished surfaces to prevent fingerprints on optical windows. Clean with spectroscopic-grade solvents and lint-free wipes. For best results, rinse with your sample solution before final filling to minimize dilution effects. Store upright in a padded container to protect the polished optical faces.

Custom Orders

Need a modified path length, special coating, or custom dimensions? We manufacture quartz cuvettes to your exact specifications. Contact our team to discuss your requirements.

Specifications are nominal values measured under standard conditions. Actual performance may vary slightly. All quartz cuvettes are manufactured from high-purity synthetic quartz glass. Images are representative; actual product appearance may differ.
