(C504CS) Quartz High-Capacity Cuvette, 50 mm Path, 125 mL
Original price was: $237.00.$214.00Current price is: $214.00.
C504CS is a JGS1 quartz high-capacity cuvette with a 50 mm optical path, Four-Way Light access and an open-top square chamber. Its 125 mL nominal capacity suits methods that need a larger sample region together with side optical access around the cell. Sold as 1 cuvette.
Description
C504CS is a JGS1 quartz high-capacity cuvette with a 50 mm optical path, Four-Way Light geometry and a 125 mL nominal capacity. Its open-top square chamber gives direct access for filling and rinsing, while the large sample region and side optical access make it suitable for fluorescence work and other compatible beam layouts that do more than a simple front-to-back transmission measurement.
- Path Length
- 50 mm
- Sample Volume (Nominal)
- 125 mL
- Opening Configuration
- Open Top
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | High-Capacity Cuvette |
| Measurement Mode | Fluorescence Spectroscopy |
| Path Length | 50 mm |
| Light Transmission Configuration | Four-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 125 mL |

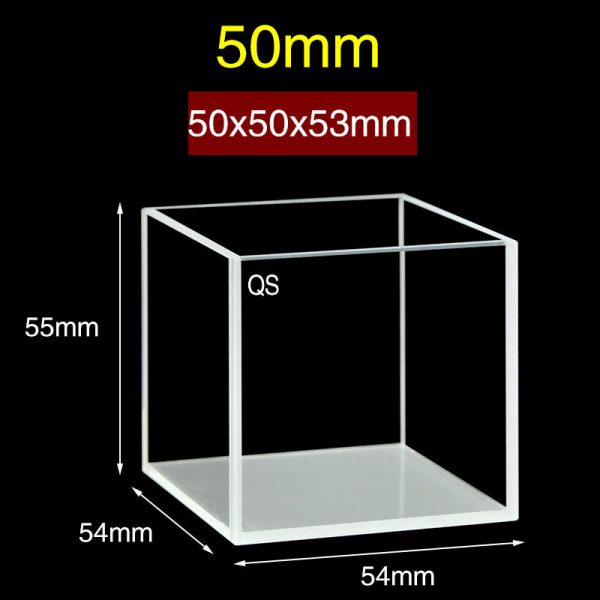

| External Dimensions | 54 × 54 × 55 mm |
| Cell Body Dimensions | 54 × 54 × 55 mm |
| External Dimensions Scope | Body Only |
| Internal Dimensions | 50 × 50 × 53 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Closure Type | Open Top |
| Opening Configuration | Open Top |
Choose this option
Choose C504CS when your method needs a longer 50 mm path together with a large sample chamber and optical access from four sides. The open-top format is useful when you need to add or remove liquid directly from above, inspect the sample surface during setup, or rinse the chamber between runs without working through a cap or connection fitting.
What makes this option different
- 50 mm optical path for methods written around a longer transmission distance.
- Four-Way Light geometry for optical access around the sample region from four sides.
- 125 mL nominal capacity for larger-volume measurements.
- 50 × 50 × 53 mm internal chamber that provides a broad square sample region.
- Open-top access for direct filling, emptying and rinsing.
- JGS1 quartz construction for UV/Vis and fluorescence-related optical use within the stated wavelength range.
- Supplier-described fused integrated construction.
Using this cell
Fill the chamber from the top and make sure the liquid level covers the optical region used in your setup. If your method reads from more than one direction, check for bubbles, suspended particles or surface films that could sit in the light path from the side as well as the main transmission direction.
The wide opening also makes this format easier to rinse after larger-volume use. Handle the cell by non-optical surfaces where possible, and keep fingerprints or residue away from the faces used by the beam and any side viewing path.
First-use check
Before first use, inspect the optical faces and top opening for dust, chips or residue. Place the empty cell in your holder first to confirm seating, beam clearance and access to the faces your method needs, then rinse with a liquid suitable for your application.
Fit and optical alignment
The body dimensions are 54 × 54 × 55 mm, and those dimensions apply to the body only. This is a larger square cell format, so check holder opening, stage clearance and surrounding space before ordering, especially if your instrument area was designed around smaller cuvettes.
Four-Way Light indicates the optical access category, not guaranteed fit in a particular holder or fluorescence instrument. Z Height is not specified for this SKU, so beam-height systems and fixed optical mounts should be checked against your own holder geometry before use.
Solvents and cleaning
This cell uses quartz, but a detailed chemical compatibility list is not provided for this exact option. If your sample or cleaning routine involves aggressive chemicals, elevated temperature or long contact time, check suitability before ordering.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with non-abrasive optical tissue. For general background on cuvette construction, see fabrication methods of cuvettes.
Included with this option
This listing is for one C504CS cuvette. A lid or other accessories are not specified for this option.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
If you need a different body size, path length, capacity, optical window arrangement or other installation details, we can review a custom JGS1 quartz version. Send a drawing or labelled sketch, your holder or instrument details, the sample conditions and the required quantity via the contact page, and reference C504CS.
Additional information
| Weight | 100 g |
|---|
