(C502CR6) Quartz Rectangular Sample Cell, 50 mm Path

Weight	100 g

SKU: C502CR6

Original price was: $133.00.Current price is: $120.00.

In Stock

C502CR6 is a JGS1 quartz rectangular sample cell for UV/Vis spectroscopy with a 50 mm optical path and a Two-Way Light layout. Its open-top square chamber gives direct top access for filling, rinsing and visual inspection, and the larger body suits setups that can accommodate a broad rectangular cell. Sold as 1 cuvette per sale.

In Stock

SKU: C502CR6 Categories: Cuvettes, Products, Quartz High-Capacity Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C502CR6 is a JGS1 quartz rectangular sample cell for UV/Vis spectroscopy with a 50 mm optical path in a larger square-body format. The open-top chamber gives direct access from above for filling, rinsing and checking the sample, while the Two-Way Light layout supports straight-through transmission through two opposite faces. Sold as 1 cuvette per sale.

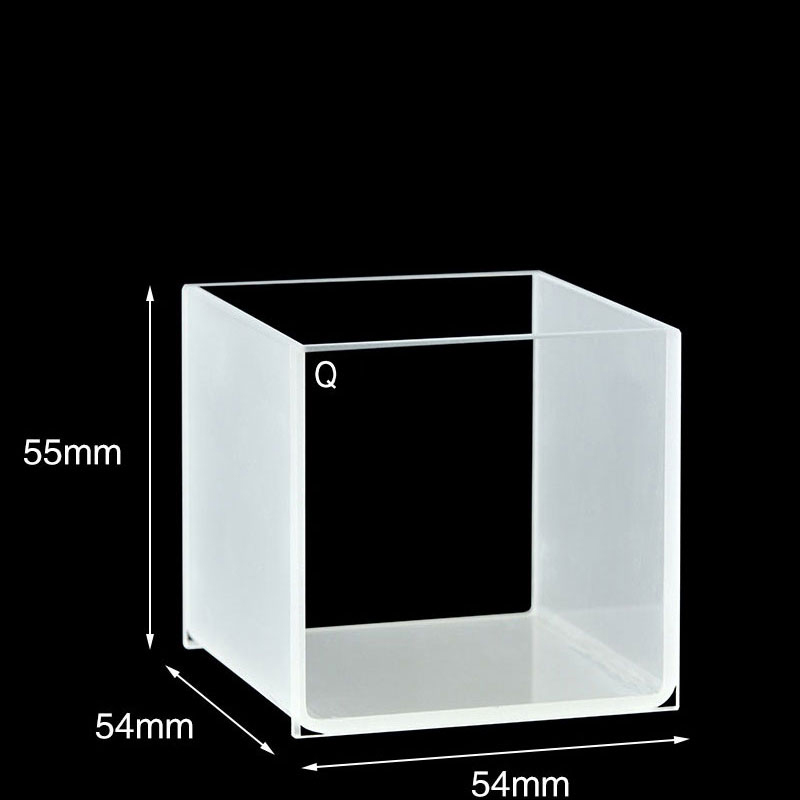

This option is useful when you need a long path together with a broad internal sample region rather than a narrow cuvette profile. The listed body size is 54 × 54 × 55 mm, with a 50 × 50 × 53 mm internal chamber, so holder space and beam height should be checked as part of instrument fit.

Path Length: 50 mm
Cell Type: Rectangular Sample Cell
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	50 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
External Dimensions	54 × 54 × 55 mm
Cell Body Dimensions	54 × 54 × 55 mm
External Dimensions Scope	Body Only
Body Height	55 mm
Internal Dimensions	50 × 50 × 53 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Open Top
Opening Configuration	Open Top (Cell Body)
Wall Thickness	2 mm

Choose this option

Choose C502CR6 when your method needs a 50 mm transmission path in an open-top rectangular quartz cell and your setup has room for a larger square body. It suits direct top loading and chamber rinsing, and it is easier to inspect the sample surface and chamber condition before measurement than a design with a narrow neck or fitted connection.

What makes this option different

50 mm optical path for methods that call for a longer straight-through transmission distance.
Two-Way Light layout for transmission across two opposite optical faces in a standard through-beam arrangement.
Open-top chamber for direct filling, emptying and rinsing from above without working through a stopper or threaded cap.
Broad internal sample region with listed internal dimensions of 50 × 50 × 53 mm.
Larger square body with listed body dimensions of 54 × 54 × 55 mm, useful where holder clearance is available.
Fused integrated construction as the supplier’s stated construction term for this cell family.

Using this cell

Fill the cell from the top and make sure the liquid level covers the beam region used by your instrument. Before measurement, remove visible bubbles from the optical path and keep the same orientation for blank and sample runs.

Because this is an open-top body, handle it with the sample surface in mind during transfer and setup. Hold the cell by non-optical surfaces where possible, and avoid touching the transmission faces.

First-use check

Inspect the optical faces and chamber edges for chips, residue or transport marks before first use. Rinse the chamber with a suitable liquid for your method, place the empty cell in the holder to confirm stable seating, then run a blank to check beam alignment through the intended faces.

Fit and optical alignment

The 54 × 54 × 55 mm dimensions apply to the cell body. Use these dimensions to check holder seating, compartment clearance and side access, especially if your instrument is arranged for slimmer rectangular cells.

Z Height is not stated for this option. If your holder or instrument depends on a defined beam-center height, confirm that separately before ordering instead of relying on the overall body size.

Solvents and cleaning

This quartz cell is listed for UV/Vis use over 200–2500 nm. For general construction background and selection guidance, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. The chemical limits of this assembled option are not stated here, so aggressive, heated or long-contact samples and cleaning liquids should be checked before ordering.

Included with this option

Price is for 1 cuvette. A supplied closure or other package accessories are not confirmed for this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch with your holder or instrument details, critical dimensions, sample chemistry and target quantity. Discuss your requirements and mention part number C502CR6.
