(C505CR6) Quartz Rectangular Sample Cell, 50 mm Path

Weight	100 g

SKU: C505CR6

Original price was: $331.00.Current price is: $298.00.

In Stock

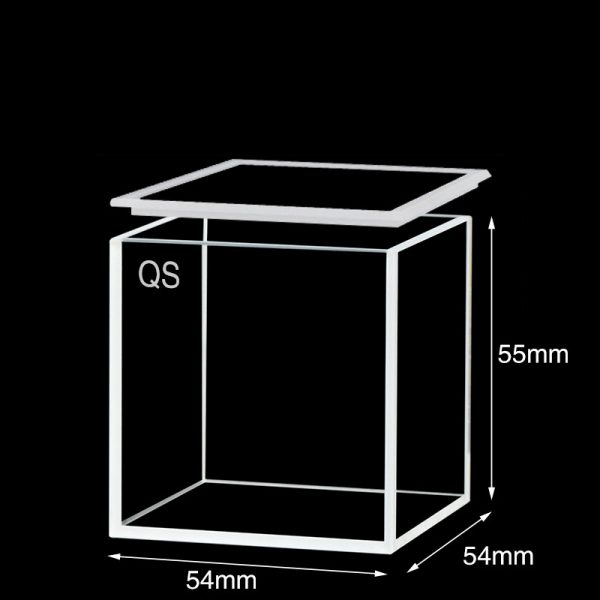

C505CR6 is a JGS1 quartz rectangular sample cell with a 50 mm optical path, Five-Way Light geometry and an included lid. Its 54 × 54 × 55 mm body and 50 × 50 × 53 mm internal chamber suit UV/Vis work that needs a long path in a large square sample region. Supplied as 1 cell.

In Stock

SKU: C505CR6 Categories: Cuvettes, Products, Quartz High-Capacity Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C505CR6 is a JGS1 quartz rectangular sample cell for UV/Vis spectroscopy with a 50 mm optical path, Five-Way Light geometry and an included lid. Its large square chamber and 55 mm body height make it a practical choice when you need a long path in a deeper cell body rather than a shallow chamber format. The stated body dimensions are 54 × 54 × 55 mm, with a 50 × 50 × 53 mm internal chamber.

Path Length: 50 mm
Cell Type: Rectangular Sample Cell
Closure Type: Flat Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	50 mm
Light Transmission Configuration	Five-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
External Dimensions	54 × 54 × 55 mm
Cell Body Dimensions	54 × 54 × 55 mm
External Dimensions Scope	Body Only
Body Height	55 mm
Internal Dimensions	50 × 50 × 53 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Flat Lid
Closure Included	Yes
Wall Thickness	2 mm

Choose this option

Choose C505CR6 when your method needs a 50 mm path length together with broad optical access around a square sample chamber. The included lid gives you a covered setup for filling and measurement, while the larger internal space suits samples or arrangements that need more chamber depth than a shorter body provides.

What makes this option different

50 mm optical path in a rectangular JGS1 quartz sample cell.
Five-Way Light configuration for multi-direction optical access in this cell format.
Included lid for a covered sample chamber.
54 × 54 × 55 mm body with a 50 × 50 × 53 mm internal chamber.

Using this cell

Fill the chamber so the liquid covers the measurement path and place the lid as supplied before use. For consistent readings, keep the same orientation for blank and sample measurements and avoid bubbles in the optical region.

The large square chamber gives direct access for filling and cleaning. The lid adds top coverage during use, but it should not be treated as a stated pressure-rated or chemically defined closure for this SKU.

First-use check

Inspect the optical faces, edges and lid-contact area for chips, dust or residue.
Place the cell in your holder and confirm body seating and top clearance with the lid arrangement you plan to use.
Run a blank at your working wavelength and confirm that the beam passes fully through the filled sample region.

Fit and optical alignment

The listed 54 × 54 × 55 mm dimensions describe the cell body itself. They do not establish the overall installed size with the lid in place, so check top clearance and holder clearance in your instrument or fixture before ordering.

Five-Way Light identifies this optical-access category, but it is not an instrument compatibility guarantee. If your setup depends on a specified beam-center height, please note that Z Height is not established for this item.

Solvents and cleaning

This quartz cell is intended for UV/Vis use across the stated 200–2500 nm range. For fabrication background, see Compare fabrication options.

Chemical compatibility for this exact SKU is not fully established, and the lid material is not specified here, so check the suitability of the complete assembly for your sample and cleaning routine before regular use. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe optical faces gently with a non-abrasive optical tissue.

Included with this option

Supplied as 1 rectangular sample cell with an included lid.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, optical access, closures and related fit details. Send a dimensioned drawing or labelled sketch together with your holder or instrument information, critical dimensions and sample conditions. Discuss your requirements and quote part number C505CR6.
