(C602CR) Quartz Rectangular Sample Cell, 60 mm Path

Weight	100 g

SKU: C602CR

Original price was: $237.00.Current price is: $214.00.

In Stock

C602CR is a JGS1 quartz rectangular sample cell with a 60 mm optical path, Two-Way Light geometry and a large open-top chamber. Its 64 × 64 × 62 mm body and 60 × 60 × 60 mm internal chamber suit UV/Vis work that needs a long path in a large square cell. Supplied as 1 cell.

In Stock

SKU: C602CR Categories: Cuvettes, Products, Quartz High-Capacity Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C602CR is a JGS1 quartz rectangular sample cell for UV/Vis setups that need a 60 mm optical path in a large square body. The open-top chamber gives direct access for filling and rinsing, while the Two-Way Light layout keeps the measurement path on two opposite optical faces. This is a practical choice when your method needs a long transmission length and your holder or fixture can accept a larger-format cell.

Path Length: 60 mm
Cell Type: Rectangular Sample Cell
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	60 mm
Light Transmission Configuration	Two-Way Light

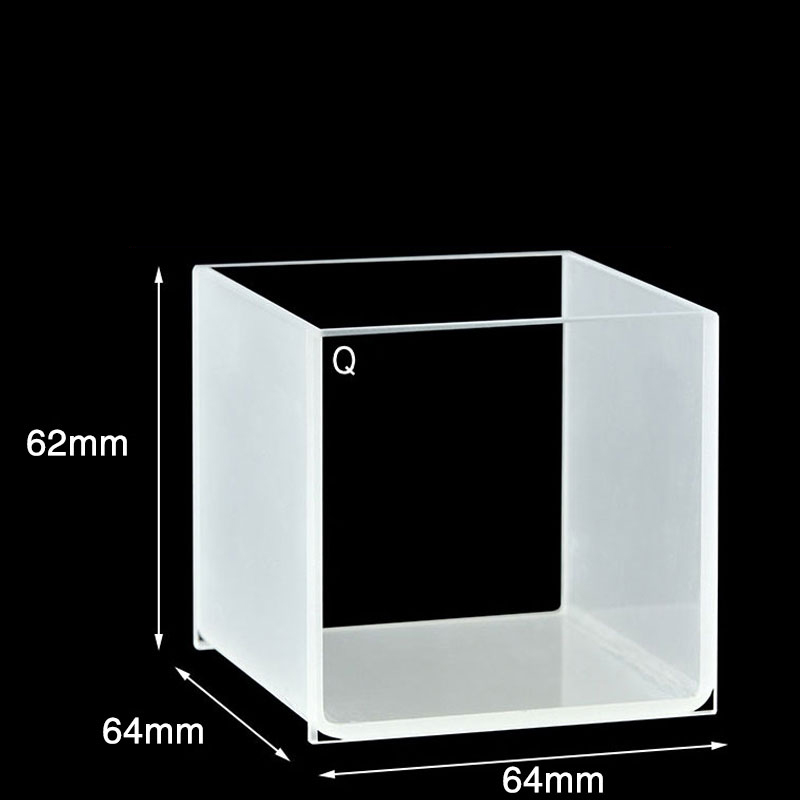

External Dimensions	64 × 64 × 62 mm
Cell Body Dimensions	64 × 64 × 62 mm
External Dimensions Scope	Body Only
Body Height	62 mm
Internal Dimensions	60 × 60 × 60 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Open Top
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C602CR when the path length matters more than compact size. Its 60 mm optical path and 60 × 60 × 60 mm internal chamber make it suitable for methods built around a substantial sample region, and the open top is convenient when you want to pour, pipette or rinse directly from above rather than work through a narrow neck or fixed closure.

What makes this option different

60 mm optical path for methods written around a long transmission distance.
Two-Way Light geometry with measurement through two opposite faces.
Open-top chamber for direct filling, emptying and rinsing from above.
Large square body with 64 × 64 × 62 mm external dimensions and a 60 × 60 × 60 mm internal chamber.

Using this cell

Fill from the top and make sure the liquid covers the beam region used by your instrument. Before measurement, clear visible bubbles from the optical path and keep the same cell orientation for blanks and samples if your procedure depends on a fixed beam direction.

This is an open-top cell body. Use it where an exposed opening is acceptable for your sample handling routine, and review that point before ordering if your process depends on a supplied closure or controlled coverage above the chamber.

First-use check

Inspect the optical faces and top rim for chips, residue or handling marks.
Rinse with a suitable liquid for your method.
Place the cell in the intended holder and verify beam position through the two transmission faces.
Run a blank after confirming that the filled sample region covers the beam path.

Fit and optical alignment

The body measures 64 × 64 × 62 mm, and these dimensions apply to the cell body itself. Check holder width, seating area and surrounding clearance before purchase, especially if your instrument was designed around a smaller cuvette format.

Z Height is not established for this SKU, so body size and path length alone should not be treated as a beam-height match. The chamber size is useful for physical planning, but if your method depends on a specific working fill height in the instrument, please review that point before ordering.

Solvents and cleaning

This cell is intended for UV/Vis spectroscopy in quartz construction. For general fabrication background, see Compare fabrication methods.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Chemical limits for this exact assembly are not established here, so if your sample or cleaning procedure involves aggressive solvents, mixed chemicals, elevated temperature or long contact time, please check the exact conditions with us before ordering.

Included with this option

Supplied as 1 rectangular sample cell. An included closure is not established for this option, and package contents beyond the cell body are not specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, windows or Z Height, closures and fabrication requirements. Send a dimensioned drawing or labelled sketch together with holder details, beam layout, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements
