700 µL Glass Micro Cuvette: Start with the Solution Limit (MQQMC063)
Custom design guide · MQQMC063
This 700 µL glass microcuvette has a nominal 10 mm path and a narrow 2 mm region. Consider the selected configuration only within its stated neutral-solution restriction and at a suitable measurement wavelength.
The situations and proposed changes below are planning examples, not completed customer projects.
Selection · Configuration · Structure · Custom version · Fit and use · Drawing · Enquiry
Check the glass and medium before the holder fit

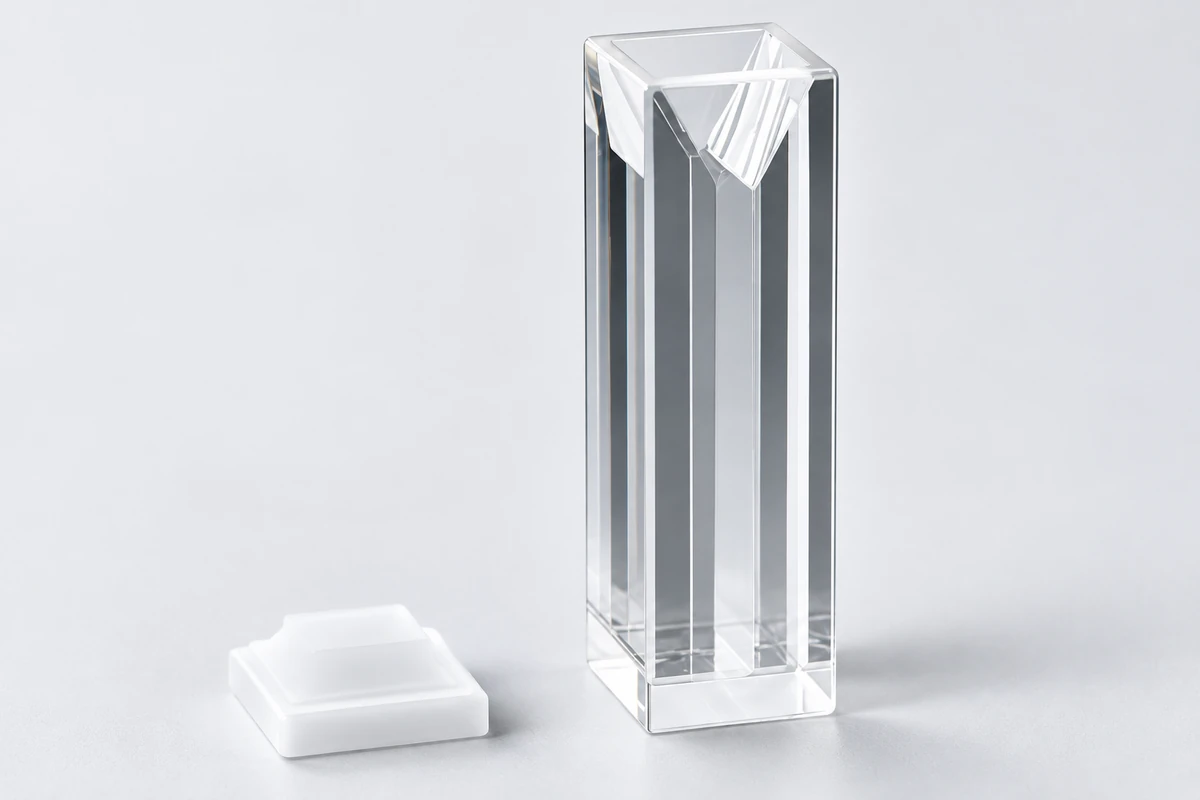

MQQMC063 is a glass microcuvette, not a quartz version of a similar shape. The selected option is listed for neutral solutions, with a nominal 10 mm path, 700 µL capacity and 2 mm narrow region. Those material and sample conditions belong at the start of selection.
The catalogue reference envelope is 12.5 × 12.5 × 45 mm, adopted from the related glass-cell family. Confirm the ordered cell dimensions before using that envelope for instrument fit. A similar outline does not establish the optical or chemical behaviour of another material. Other capacity options are separate configurations; this guide concerns the 700 µL selection.
The listed configuration
Configuration to confirm: The outside envelope is a catalogue family reference, not an exact-cell measurement. Confirm the ordered option dimensions for holder fit.

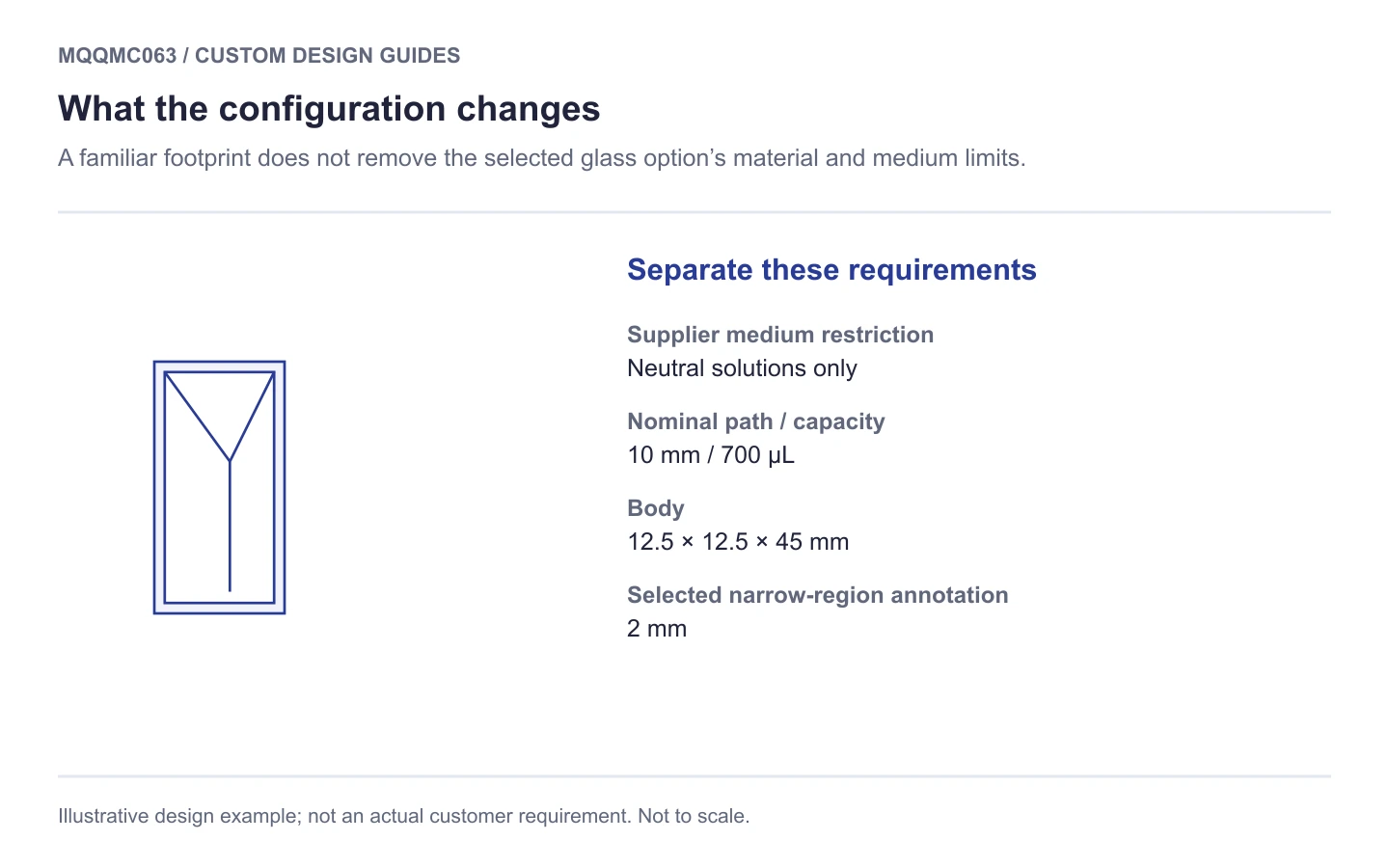

View the selection schematic

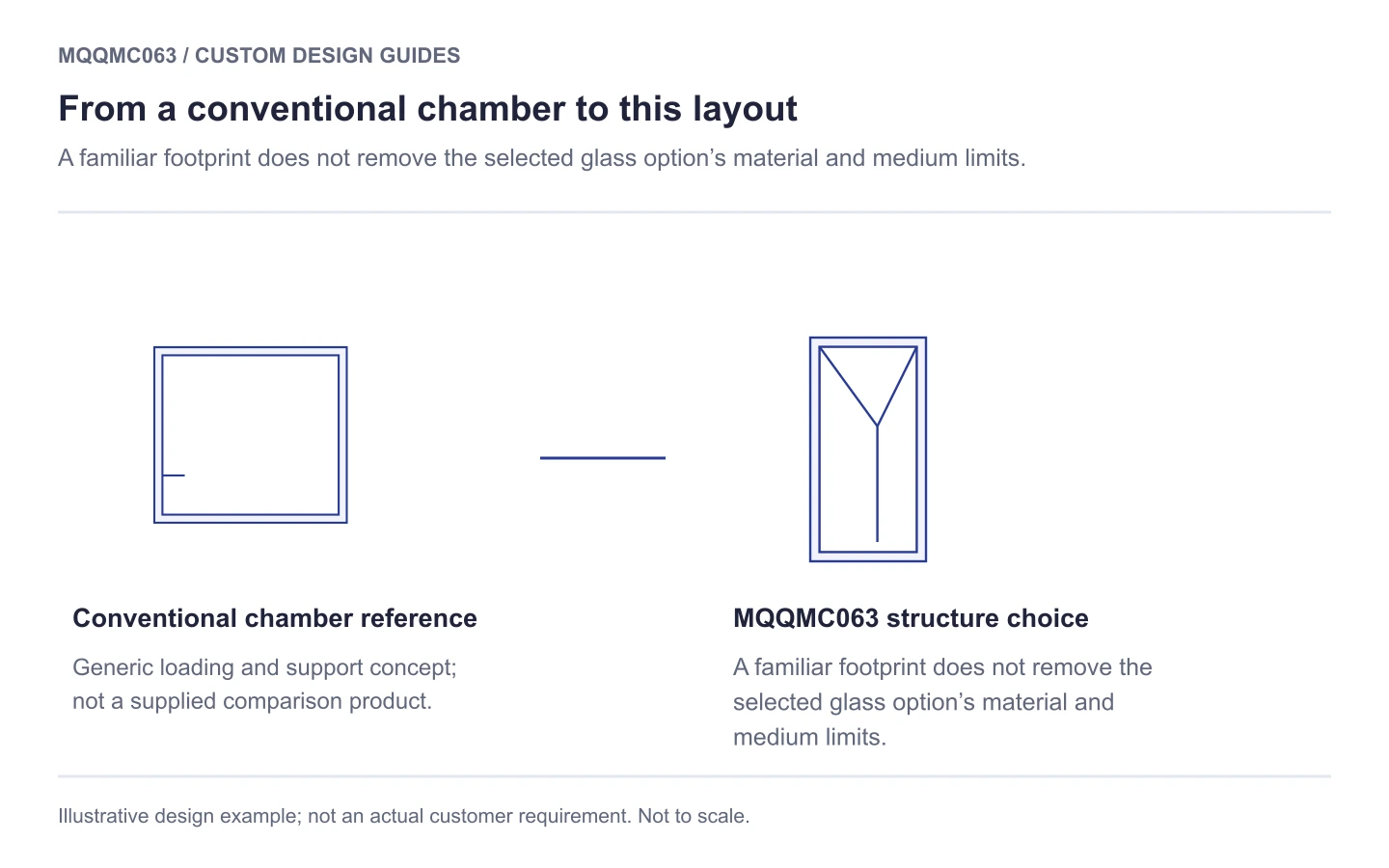

How the structure differs from a conventional cell
A wider loading area leads toward the narrow sample region, reducing nominal chamber capacity while retaining the specified path in the measurement direction. This brings filling and beam position into a closer relationship. The listed lid is a closure part; it does not establish a pressure-rated or gas-tight assembly.
Separate buying this glass cell from discussing a new design
For the current glass option, provide the actual neutral medium, wavelength and beam geometry. Check useful optical access and working liquid level against that method. Nominal capacity alone does not establish the smallest amount that will cover the beam.
For a modified design or a medium outside the stated restriction, ask MQ to review a separate material-and-construction proposal. Include the fixed holder interface and path, the desired sample region and the complete operating conditions. A possible JGS1 quartz proposal needs its own feasibility and quotation review; this glass listing does not establish custom-glass availability or the suitability of an alternative.

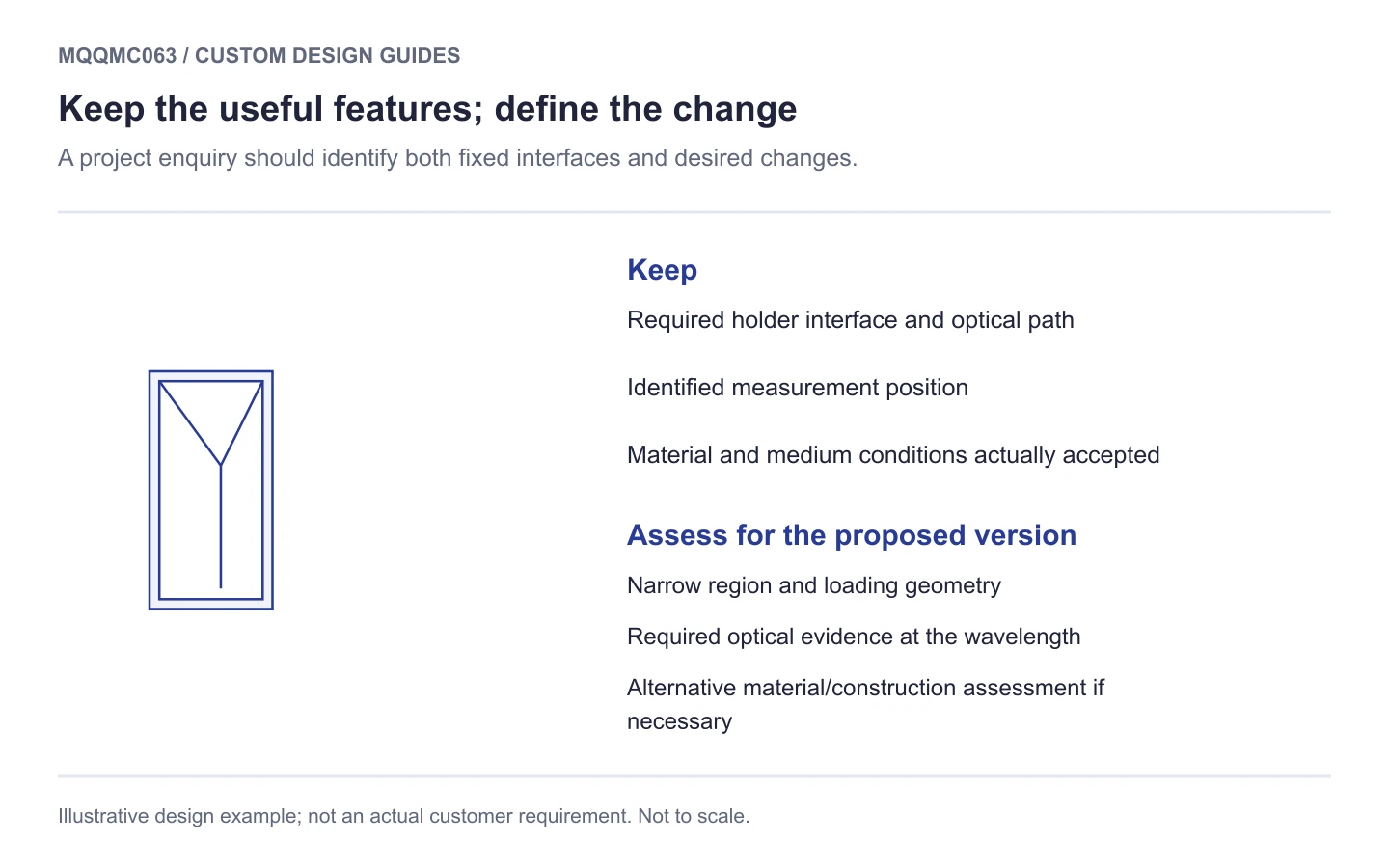

View a custom-design discussion sketch
Three checks for the proposed setup
- Selected medium. Keep the stated neutral-solution restriction and provide the complete sample and cleaning media.
- Optical requirement. Give the wavelength and acceptance conditions for the finished glass cell.
- Option identity. Use the 700 µL / 2 mm configuration rather than borrowing another option’s dimensions.
Plan the method check within the accepted sample conditions

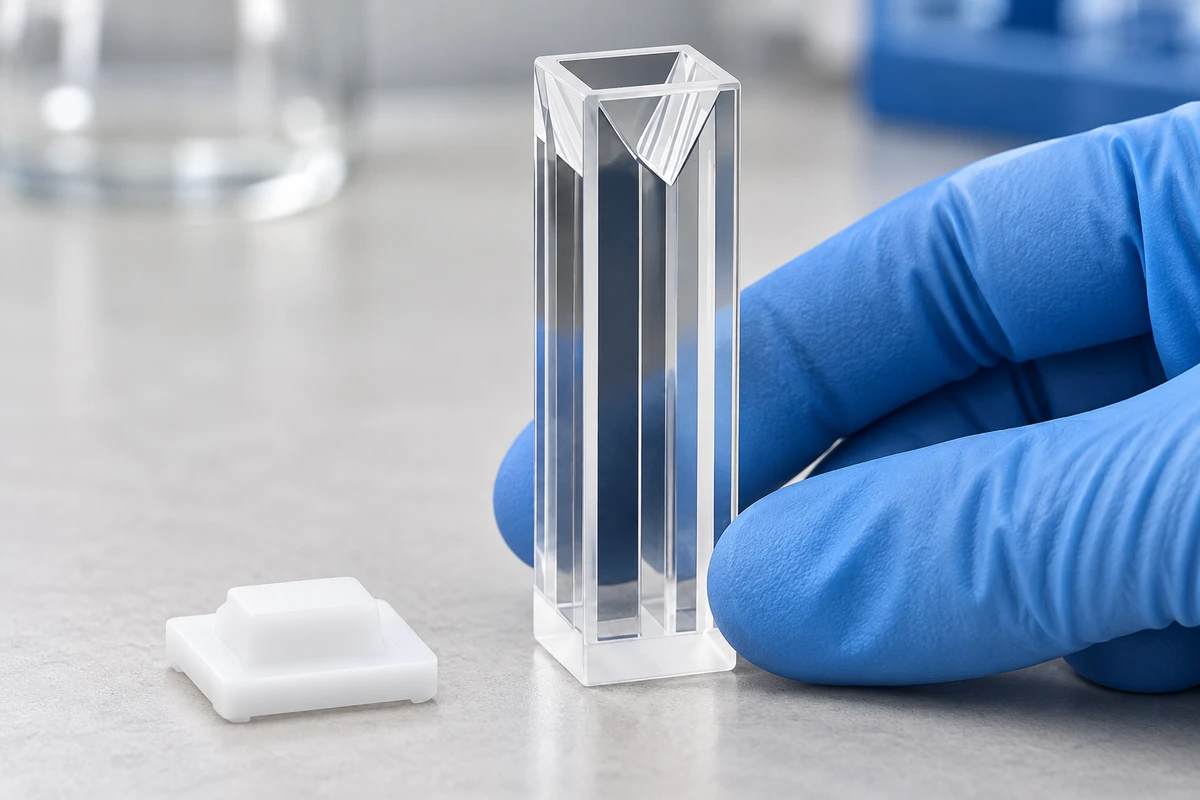

Assess continuous filling of the narrow region and whether bubbles or residue cross the intended beam. Check repeatable holder location separately. Grip non-optical outside edges and agree cleaning for the glass, adhesive-bonded construction and sample. Do not extend a material or medium claim from a different configuration.
What if our sample needs a material other than this glass configuration?
Describe the medium, cleaning conditions, wavelength and fixed instrument interfaces in a separate design enquiry. Keep the current glass SKU distinct from any proposed alternative. Material availability, geometry, optical evidence and price must be reviewed for that new proposal.

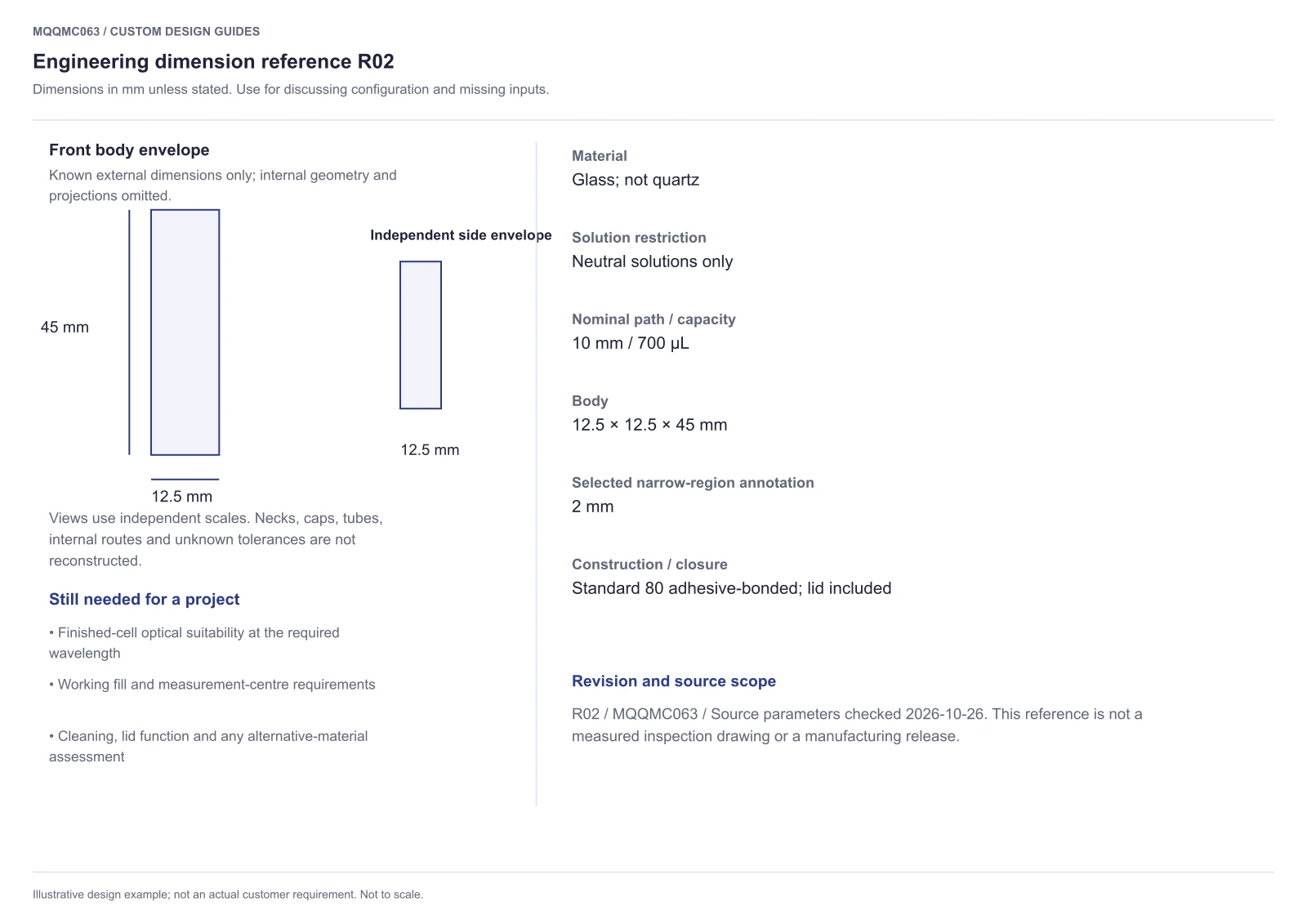

Engineering dimension reference
The reference records known external dimensions and configuration notes. Internal geometry, tolerances and operating limits still require a project-specific specification.
Open the engineering reference image
Download MQQMC063 engineering reference R02 (PDF). Illustrative design example; not an actual customer requirement.
Order this configuration or discuss a change
View MQQMC063 specifications and current pricing. Ask about availability and preparation or production time if you have a required delivery date.
For a modified version, attach a dimensioned drawing or labelled sketch. Contact MQ to review feasibility, quantity, inspection scope, price and timing for the proposed design.
Copy a starting brief for your enquiry
Reference SKU: MQQMC063
Selected reference: 700 µL glass / 2 mm region. Medium and wavelength ___; beam/holder ___; current option or separate design enquiry ___; fixed requirements and checks ___; quantity ___.
Attach your marked drawing and note any required inspection or documentation. Include the destination and target date so preparation, transport and customs can be discussed separately.
Send your sketch and requirements. Identify fixed interfaces and proposed changes.
Configuration and technical references
Configuration source: MQQMC063 configuration information. Listed parameters reviewed 26 October 2026.
Prepared for MachinedQuartz product selection and custom enquiries. MachinedQuartz is a US-based supplier established in New Mexico, USA, in 2026. Contact MQ. Custom cuvette enquiries · More design guides.
