Glass 10mm Glass Fluorescence Cuvette, 3.5ml, Standard 80, Four-Way Light, PTFE Cap, Pack of Two, C104CS20
9%
USD$34.00 USD$31.00
Glass 10 mm cuvette, 3.5 ml, Standard 80 (>80%). Two-Way Light. 340–2500 nm. PTFE Cap. Pack of Two. SKU: C104CS20. In Stock.
Description

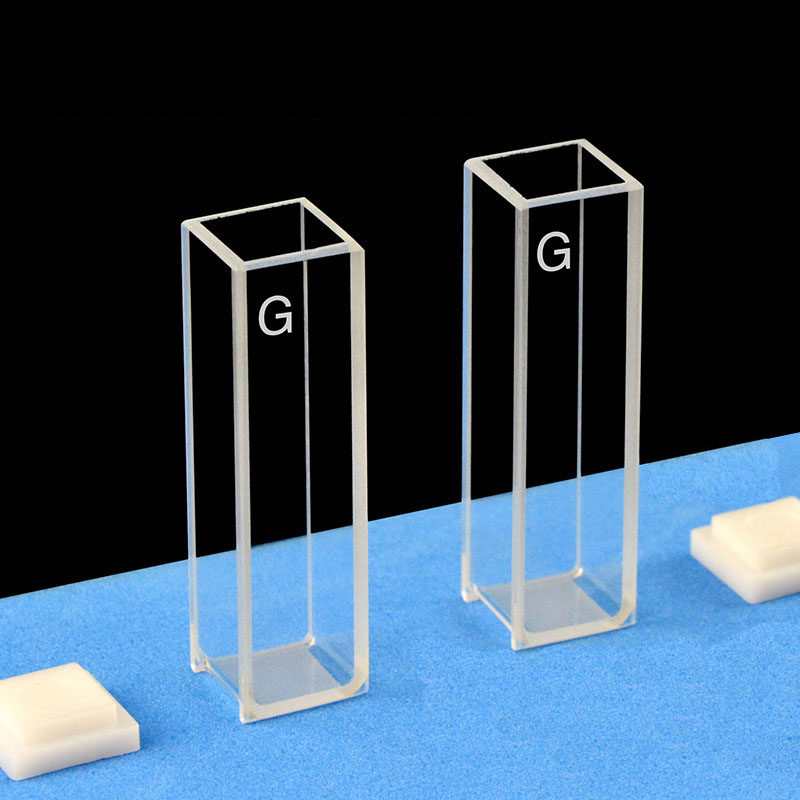

The C104CS20 is a pack of two of optical glass cuvettes, each with a 10 mm optical path length and 3.5 ml volume. Built with Standard 80 fabrication for reliable precision in routine spectroscopy. Compatible with all standard spectrophotometers. Transmits across 340–2500 nm with >80% transmittance.
| Specifications — C104CS20 | |||
|---|---|---|---|
| Material | Optical Glass (Standard 80) | SKU | C104CS20 |
| Type | Fluorescence Cell (Four-Way Light) (Two-Way Light) | Path Length | 10 mm |
| Volume | 3.5 ml | Optical Windows | 2 (frosted sides) |
| Corner Style | Sharp Corner | Fabrication | Standard 80 |
| Transmittance | > 80% (340–2500 nm) | Wavelength Range | 340 – 2500 nm |
| Exterior Dimensions | 12.5 × 12.5 × 45 mm | Interior Dimensions | 10 × 10 × 43 mm |
| Cap Type | PTFE Cap | Package | Pack of Two |
Spectroscopy Applications
🔬UV-Vis Spectroscopy
Absorbance and transmittance measurements across 340–2500 nm🏥Clinical Diagnostics
Blood chemistry, serum protein, and biomarker analysis💊Pharmaceutical Analysis
Drug concentration, purity, and dissolution testing🌊Environmental Monitoring
Water quality, pollutant detection, and nutrient analysis🍷Food & Beverage Testing
Color measurement, additive analysis, and quality control🎓Educational Laboratories
Teaching spectroscopy principles with durable, affordable cells⚗️Chemical Analysis
Reaction kinetics, titration monitoring, and concentration assays🧪Quality Control
Industrial process monitoring and raw material verification
Absorbance and transmittance measurements across 340–2500 nm🏥Clinical Diagnostics
Blood chemistry, serum protein, and biomarker analysis💊Pharmaceutical Analysis
Drug concentration, purity, and dissolution testing🌊Environmental Monitoring
Water quality, pollutant detection, and nutrient analysis🍷Food & Beverage Testing
Color measurement, additive analysis, and quality control🎓Educational Laboratories
Teaching spectroscopy principles with durable, affordable cells⚗️Chemical Analysis
Reaction kinetics, titration monitoring, and concentration assays🧪Quality Control
Industrial process monitoring and raw material verification
Why Optical Glass?
Optical glass (Standard 80) transmits reliably across 340–2500 nm, covering the full visible spectrum and near-UV/near-IR regions. More economical than quartz while delivering excellent clarity for routine spectroscopy. For deep-UV work below 340 nm, consider a quartz cuvette.
💡 Usage Tips
Filling: Fill to approximately 80% capacity (~2.8 ml) for optimal light path coverage.
Cleaning: Rinse with distilled water, then ethanol or acetone. Dry with lint-free tissue.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
Filling: Fill to approximately 80% capacity (~2.8 ml) for optimal light path coverage.
Cleaning: Rinse with distilled water, then ethanol or acetone. Dry with lint-free tissue.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
🛠 Custom Orders
Need a different path length, volume, or material? We offer custom fabrication. Contact us with your specifications.
Need a different path length, volume, or material? We offer custom fabrication. Contact us with your specifications.
Specifications are nominal and may vary slightly due to manufacturing tolerances. Images are for reference only; actual product appearance may differ.
Additional information
| Weight | 30 g |
|---|
