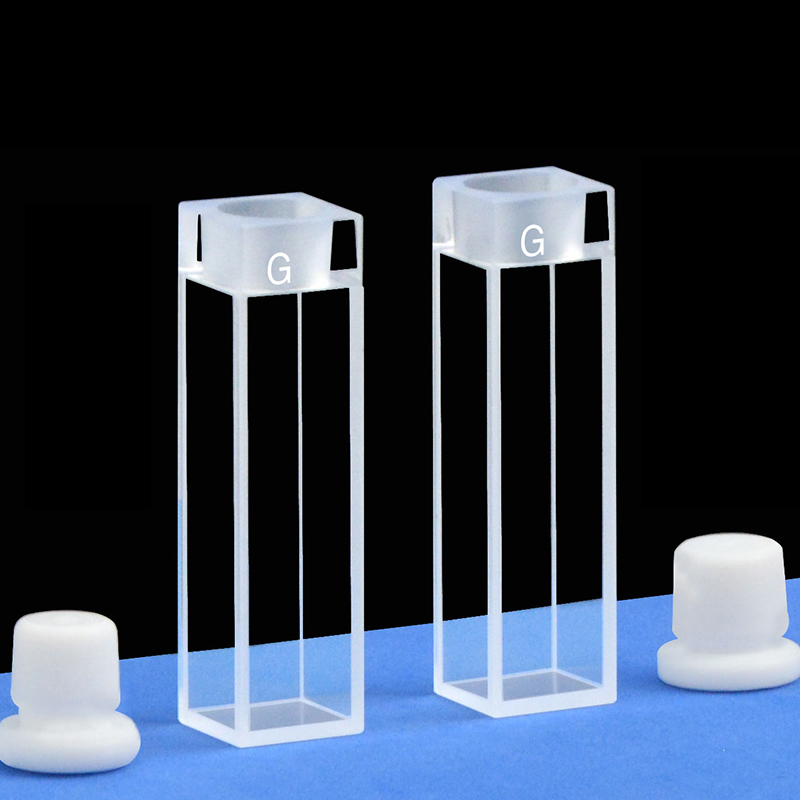

(C104CA9) Glass Particle Analysis Cell, 10 mm Path, 3.5 mL, Pack of 2
Original price was: $281.00.$253.00Current price is: $253.00.
Glass particle analysis cell with a 10 mm optical path and 3.5 mL nominal capacity for visible-range particle-analysis work. Its square 12 × 12 mm body format helps when you need to match an existing holder footprint, and a closure is included. This MQ sale is supplied as a pack of 2 cuvettes.
Description
C104CA9 is a glass particle analysis cell for methods built around a 10 mm optical path in the 350–750 nm range. Its 3.5 mL nominal capacity and square 12 × 12 mm body make it a practical replacement format for particle-analysis setups that use this compact cell style. This MQ offer is supplied as a pack of 2 cuvettes, with closure included.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 3.5 mL
- Closure Type
- Stopper
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Particle Analysis Cell |
| Measurement Mode | Particle Size Analysis |
| Pack Quantity | Pack of 2 |
| Path Length | 10 mm |
| Wavelength Range — Lower Limit | 350 nm |
| Wavelength Range — Upper Limit | 750 nm |
| Sample Volume (Nominal) | 3.5 mL |
| External Dimensions | 12 × 12 × 45 mm |
| Base Dimensions | 12 × 12 mm |
| Material | Glass |
| Closure Type | Stopper |
| Closure Included | Yes |
Choose this option
Choose C104CA9 when your method uses a visible-range glass particle analysis cell with a 10 mm path and you want the current MQ pack-of-two sales format. The square body footprint is the first dimension to check against your holder, while the nominal 3.5 mL capacity helps you plan sample preparation without assuming a minimum working fill.
What makes this option different
- 10 mm optical path for methods built around this standard transmission distance.
- 3.5 mL nominal capacity in a compact square glass body.
- 350–750 nm stated range for visible-light particle-analysis use.
- Pack of 2 cuvettes per listed MQ price unit, with closure included.
Using this cell
Fill the cell so the sample fully covers the measurement region used by your method, then keep the same orientation for blank and sample measurements. The nominal capacity is 3.5 mL, but minimum working volume is not specified here, so the practical fill level should be checked on your own instrument.
Before measurement, remove visible bubbles and exterior droplets and keep the optical faces clean. Consistent handling is especially useful when you are comparing repeat runs or replacing a worn cell in an established particle-analysis routine.
First-use check
- Inspect the glass body and closure for chips, cracks, residue or dust.
- Seat the cell in the holder and confirm it sits squarely without force.
- Run a blank or background measurement before routine sample work.
- Keep the same cell orientation throughout comparative measurements.
Fit and optical alignment
The stated external dimensions are 12 × 12 × 45 mm, with a 12 × 12 mm base footprint for holder seating. Use those body dimensions to check slot fit and surrounding clearance first.
Z Height is not listed for this SKU, and the available data does not settle whether the 45 mm height includes the closure. If your instrument has a fixed beam position or limited headroom above the cell position, check alignment and vertical clearance before ordering.
Solvents and cleaning
This is a glass cell assembly, so chemical suitability should be judged for the complete cell and closure together. Specific chemical and pressure limits are not established here, so check compatibility before using aggressive chemicals, long soaking steps or elevated-temperature cleaning.
Keep hydrofluoric acid away from glass. Avoid hot strong alkalis and abrasive cleaning. Clean optical faces gently with suitable non-abrasive optical tissue or another method appropriate for laboratory glass cells.
If you are comparing different construction approaches for another method, see cuvette fabrication methods.
Included with this option
2 cuvettes per listed price unit. Closure included.
Availability and ordering
Order this listed specification directly, or ask about current availability and dispatch. If your delivery date is important, ask before checkout; preparation or production time is separate from transit and customs clearance.
Discuss a custom version
For a different design, send a drawing or describe the change you need. A custom JGS1 quartz alternative is a separate product enquiry, and feasibility, quantity, price and timing are confirmed in the project quotation.
Additional information
| Weight | 30 g |
|---|
