(C104CA8) Glass Particle Analysis Cell, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C104CA8

Original price was: $142.00.Current price is: $128.00.

In Stock

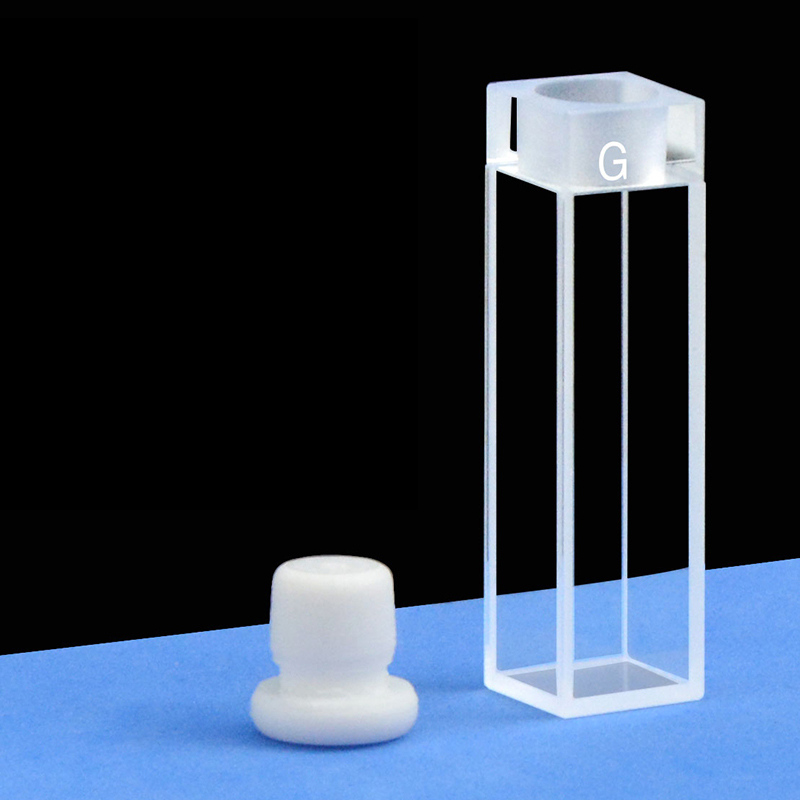

C104CA8 is a glass particle analysis cell with a 10 mm optical path, 3.5 mL nominal capacity and a 350–750 nm wavelength range. Its square 12 × 12 mm body format suits holders built around this footprint, and the listed sale unit is 1 cell with an included closure.

In Stock

SKU: C104CA8 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CA8 is a glass particle analysis cell for particle size analysis methods in the 350–750 nm range. It combines a 10 mm optical path with a 3.5 mL nominal capacity in a square 12 × 12 mm body format, making it a practical choice when you need a familiar full-size cell footprint rather than a micro-volume geometry. This listing is for 1 cell, and a closure is included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Particle Analysis Cell
Measurement Mode	Particle Size Analysis
Pack Quantity	1 Piece
Path Length	10 mm
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	750 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12 × 12 × 45 mm
Base Dimensions	12 × 12 mm
Material	Glass
Closure Type	Stopper
Closure Included	Yes

Choose this option

Choose C104CA8 when your method calls for a glass particle analysis cell with a 10 mm path and a visible-range specification of 350–750 nm. The square 12 × 12 mm base is the key fit dimension to check, while the 3.5 mL nominal capacity helps you judge the sample scale this cell is designed around.

What makes this option different

10 mm optical path for the stated particle size analysis use.
350–750 nm wavelength range for visible-range work with this cell.
3.5 mL nominal capacity in a full-size square body rather than a micro-volume format.
Sold as 1 cell with an included closure.

Using this cell

Fill the cell for your particle size analysis method and keep the optical faces clean and consistently oriented between readings. Work within the stated 350–750 nm range for this option.

The 3.5 mL value is a nominal capacity, not a confirmed minimum working volume. Set your fill level according to your method and instrument so the beam passes fully through the sample region in actual use.

First-use check

Inspect the optical faces and closure seating area before first use.
Place the cell in the holder and confirm stable seating in your normal measurement position.
Run a blank or background check before routine sample measurements.

Fit and optical alignment

The square base is 12 × 12 mm, which is the main seating dimension to check against your holder. The listed external dimensions are 12 × 12 × 45 mm, but the available data does not establish whether that 45 mm height includes the closure, so treat it as general space-planning information rather than a confirmed installed height.

Z Height is not established for this item. If your instrument uses a fixed beam position or has tight vertical clearance, verify the fit with the cell installed rather than assuming compatibility from the outer body format alone.

Solvents and cleaning

Handle the cell as a glass assembly and clean it with methods that suit both the cell body and the included closure. Exact chemical limits for this specific assembly are not established here, so if your samples or cleaning routine involve aggressive chemicals or organic solvents, check suitability for the full assembly before routine use.

Avoid hydrofluoric acid and abrasive cleaning methods on glass optical surfaces. After cleaning, rinse and dry in a way that does not leave marks on the optical faces.

Included with this option

This listing is for 1 cell. A closure is included. Other package-content details are not established here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For related custom requirements, we can review changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and fit details. Send a dimensioned drawing or labelled sketch together with your holder or instrument details, wavelength range, sample conditions and quantity. Discuss your requirements.
