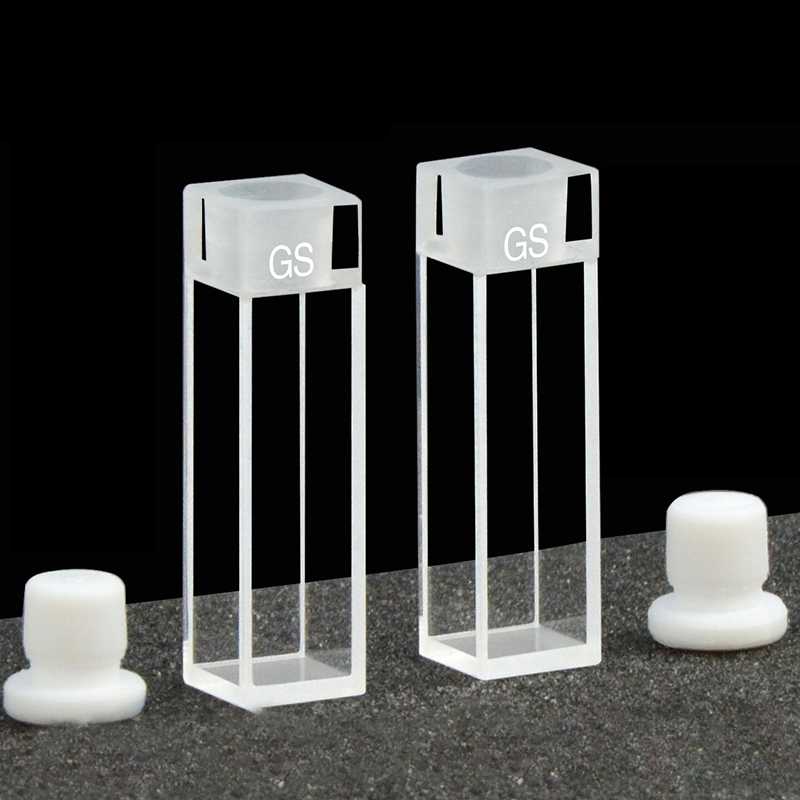

Quartz 10mm Stopper Glass Cuvette Sample Cell, 3.5ml, Molded 83, Four-Way Light, PTFE Cap, Pack of Two, C104SE12
10%
Original price was: $376.00.$339.00Current price is: $339.00.
Glass 10 mm cuvette with stopper, 3.5 ml, Molded 83 (>80%). Two-Way Light. 340–2500 nm. PTFE Cap. Pack of Two. SKU: C104SE12. In Stock.
In Stock
Description
The C104SE12 is a pack of two of optical glass cuvettes, each with a 10 mm optical path length and 3.5 ml volume. Built with Molded 83 fabrication for economical high-throughput use. Compatible with all standard spectrophotometers. Transmits across 340–2500 nm with >80% transmittance.
| Specifications — C104SE12 | |||
|---|---|---|---|
| Material | Optical Glass (Molded 83) | SKU | C104SE12 |
| Type | Stopper Fluorescence Cell (Four-Way Light) (Two-Way Light) | Path Length | 10 mm |
| Volume | 3.5 ml | Optical Windows | 2 (frosted sides) |
| Corner Style | Sharp Corner | Fabrication | Molded 83 |
| Transmittance | > 80% (340–2500 nm) | Wavelength Range | 340 – 2500 nm |
| Exterior Dimensions | 12.5 × 12.5 × 45 mm | Interior Dimensions | 10 × 10 × 43 mm |
| Cap Type | Glass Stopper | Package | Pack of Two |
Spectroscopy Applications
🔬UV-Vis Spectroscopy
Absorbance and transmittance measurements across 340–2500 nm🏥Clinical Diagnostics
Blood chemistry, serum protein, and biomarker analysis💊Pharmaceutical Analysis
Drug concentration, purity, and dissolution testing🌊Environmental Monitoring
Water quality, pollutant detection, and nutrient analysis🍷Food & Beverage Testing
Color measurement, additive analysis, and quality control🎓Educational Laboratories
Teaching spectroscopy principles with durable, affordable cells⚗️Chemical Analysis
Reaction kinetics, titration monitoring, and concentration assays🧪Quality Control
Industrial process monitoring and raw material verification
Absorbance and transmittance measurements across 340–2500 nm🏥Clinical Diagnostics
Blood chemistry, serum protein, and biomarker analysis💊Pharmaceutical Analysis
Drug concentration, purity, and dissolution testing🌊Environmental Monitoring
Water quality, pollutant detection, and nutrient analysis🍷Food & Beverage Testing
Color measurement, additive analysis, and quality control🎓Educational Laboratories
Teaching spectroscopy principles with durable, affordable cells⚗️Chemical Analysis
Reaction kinetics, titration monitoring, and concentration assays🧪Quality Control
Industrial process monitoring and raw material verification
Why Molded Glass?
Molded (Economy 83) cuvettes offer consistent optical quality at lower cost per unit. With round corners and robust construction, they are perfect for high-throughput screening, teaching labs, and disposable applications.
💡 Usage Tips
Filling: Fill to approximately 80% capacity (~2.8 ml) for optimal light path coverage.
Cleaning: Rinse with distilled water, then ethanol or acetone. Dry with lint-free tissue.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
Filling: Fill to approximately 80% capacity (~2.8 ml) for optimal light path coverage.
Cleaning: Rinse with distilled water, then ethanol or acetone. Dry with lint-free tissue.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
🛠 Custom Orders
Need a different path length, volume, or material? We offer custom fabrication. Contact us with your specifications.
Need a different path length, volume, or material? We offer custom fabrication. Contact us with your specifications.
Specifications are nominal and may vary slightly due to manufacturing tolerances. Images are for reference only; actual product appearance may differ.
