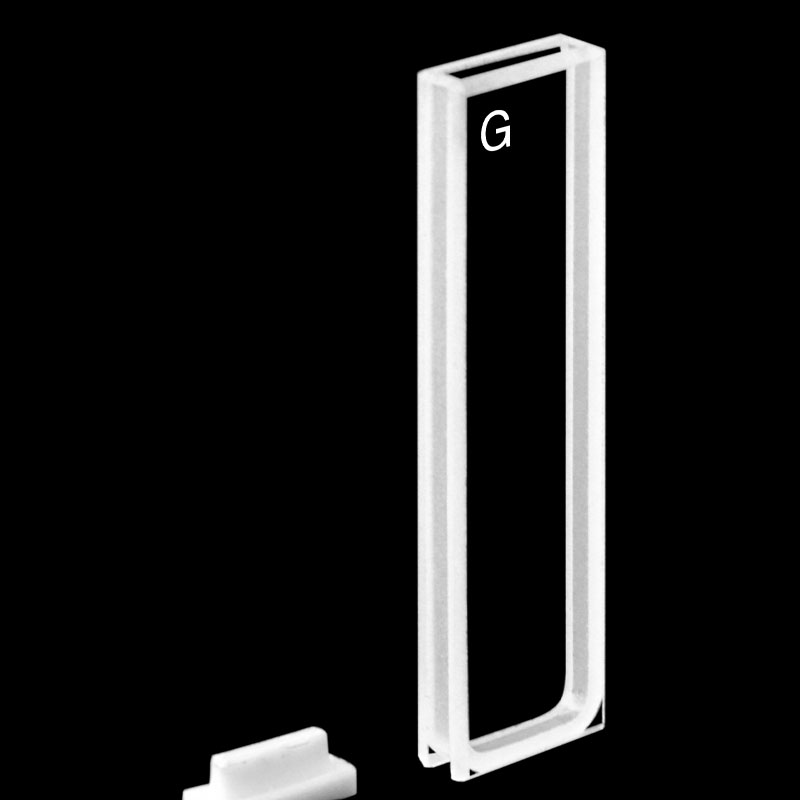

Glass 2mm Glass Cuvette, 700ul, Standard 80, Two-way Light, PTFE Cap, 1pc/ea, C022CS2
8%
Original price was: $14.00.$13.00Current price is: $13.00.
Glass 2 mm cuvette, 700 µl, Standard 80 (>80%). Two-Way Light. 340–2500 nm. PTFE Cap. 1 pc/ea. SKU: C022CS2. In Stock.
In Stock
Description
The C022CS2 is a glass cuvette featuring a 2 mm optical path length and 700 µl volume. Standard 80 fabrication delivers precision-polished optical faces for consistent measurements. Suitable for UV-Vis spectroscopy across the 340–2500 nm range.
| Specifications — C022CS2 | |||
|---|---|---|---|
| Material | Optical Glass (Standard 80) | SKU | C022CS2 |
| Type | Standard Cell (Two-Way Light) | Path Length | 2 mm |
| Volume | 700 µl | Optical Windows | 2 (frosted sides) |
| Corner Style | Sharp Corner | Fabrication | Standard 80 |
| Transmittance | > 80% (340–2500 nm) | Wavelength Range | 340 – 2500 nm |
| Exterior Dimensions | 12.5 × 4.5 × 45 mm | Interior Dimensions | 2 × 10 × 43 mm |
| Cap Type | PTFE Cap | Package | 1 pc/ea |
Spectroscopy Applications
🔬UV-Vis Spectroscopy
Absorbance and transmittance measurements across 340–2500 nm🏥Clinical Diagnostics
Blood chemistry, serum protein, and biomarker analysis💊Pharmaceutical Analysis
Drug concentration, purity, and dissolution testing🌊Environmental Monitoring
Water quality, pollutant detection, and nutrient analysis🍷Food & Beverage Testing
Color measurement, additive analysis, and quality control🎓Educational Laboratories
Teaching spectroscopy principles with durable, affordable cells⚗️Chemical Analysis
Reaction kinetics, titration monitoring, and concentration assays🧪Quality Control
Industrial process monitoring and raw material verification
Absorbance and transmittance measurements across 340–2500 nm🏥Clinical Diagnostics
Blood chemistry, serum protein, and biomarker analysis💊Pharmaceutical Analysis
Drug concentration, purity, and dissolution testing🌊Environmental Monitoring
Water quality, pollutant detection, and nutrient analysis🍷Food & Beverage Testing
Color measurement, additive analysis, and quality control🎓Educational Laboratories
Teaching spectroscopy principles with durable, affordable cells⚗️Chemical Analysis
Reaction kinetics, titration monitoring, and concentration assays🧪Quality Control
Industrial process monitoring and raw material verification
Why Optical Glass?
Optical glass (Standard 80) transmits reliably across 340–2500 nm, covering the full visible spectrum and near-UV/near-IR regions. More economical than quartz while delivering excellent clarity for routine spectroscopy. For deep-UV work below 340 nm, consider a quartz cuvette.
💡 Usage Tips
Filling: Fill to approximately 80% capacity (~560.0 ml) for optimal light path coverage.
Cleaning: Rinse with distilled water, then ethanol or acetone. Dry with lint-free tissue.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
Filling: Fill to approximately 80% capacity (~560.0 ml) for optimal light path coverage.
Cleaning: Rinse with distilled water, then ethanol or acetone. Dry with lint-free tissue.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
🛠 Custom Orders
Need a different path length, volume, or material? We offer custom fabrication. Contact us with your specifications.
Need a different path length, volume, or material? We offer custom fabrication. Contact us with your specifications.
Specifications are nominal and may vary slightly due to manufacturing tolerances. Images are for reference only; actual product appearance may differ.
Additional information
| Weight | 30 g |
|---|
You must be logged in to post a review.
You may also like…
8%

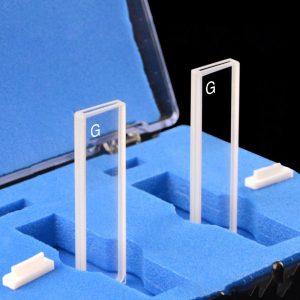

Glass 1mm Glass Cuvette, 350ul, Standard 80, Two-way Light, PTFE Cap, Pack of Two, C012CS6
Original price was: $28.00.$26.00Current price is: $26.00.8%
Glass 2mm Glass Cuvette, 700ul, Standard 80, Two-way Light, PTFE Cap, Pack of Two, C022CS3
Original price was: $26.00.$24.00Current price is: $24.00.10%

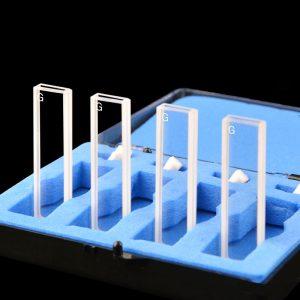

Glass 2mm Glass Cuvette, 700ul, Standard 80, Two-way Light, PTFE Cap, Pack of Four, C022CS4
Original price was: $50.00.$45.00Current price is: $45.00.10%

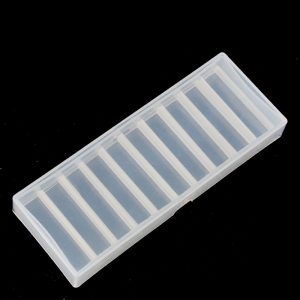

Glass 2mm Glass Cuvette, 700ul, Standard 80, Two-way Light, Open-Top, pack of ten, C022CS5
